Laying Indoor / Outdoor XLPE Insulated Power Cable , XLPE Insulated PVC Sheathed Cable

China Laying Indoor / Outdoor XLPE Insulated Power Cable , XLPE Insulated PVC Sheathed Cable supplier

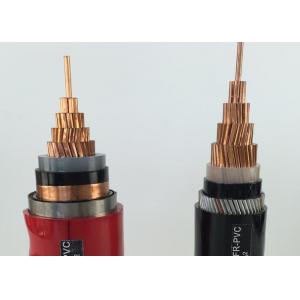

Laying Indoor / Outdoor XLPE Insulated Power Cable , XLPE Insulated PVC Sheathed Cable image

Get a Quote Email to us

Brand Name :SHANCABLE
Model Number :YJV,YJLV
Certification :ISO,CE,IEC,TUV,KEMA
Place of Origin :Shanghai, China
MOQ :Negotiable
Price :Negotiable
Payment Terms :L/C, T/T
Supply Ability :100KM/Week
Delivery Time :10 Days
Packaging Details :Wooden Drum
Product Name :XLPE Insulation Electrical Power Cable
Nominal Area of Conductor :1.5mm2 to 1000 mm2
Test Voltage :3.5 kV/ 5min.
Standard :IEC 60502-1 IEC 60502-2 ,IEC 60228
Application :For laying indoors and outdoors
Rated Voltage :6/10

Laying Indoor / Outdoor XLPE Insulated Power Cable , XLPE Insulated PVC Sheathed Cable

Description:

0.6/1kv XLPE Insulated Electric Power cable

CU/XLPE/PVC, IEC 60502

IEC 60502, IEC 60228, GB/T 12706.1-2008.

CE, CCC, KEMA. ISO

Constructions:

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃
Sheath : PVC type ST2 to IEC 60502, black

Note: Insulation color as per standards or customer requirement

Applications:

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Standards:

International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

Technical data:

Rated voltage: 0.6/1kV

Max. Conductor Temp.: normal (90℃), short circuit no more than 5 s (160℃ when section-area

below 300mm2, 140℃ when section-area above 300mm2)

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%

Certificates:

CE, RoHS, CCC, KEMA and more others at request

Technical Specifications:

Nom. Cross-section of conductor Strands No./Dia. of Conductor Insulation Thickness Sheath Thickness Approx. O.D.

Approx

.Weight

 Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm Lower Limit (mm) kg/km Ω /km kV/5min In air (A) Direct In soil(A)
1 × 1.5 1/1.38 0.7 1.5 6 53 12.1 3.5 26 33
1 × 2.5 1/1.78 0.7 1.5 6 68 7.41 3.5 34 43
1 × 4 1/2.25 0.7 1.5 7 87 4.61 3.5 44 56
1 × 6 1/2.76 0.7 1.5 7 110 3.08 3.5 56 70
1 × 10 7/1.38 0.7 1.5 8 155 1.83 3.5 77 94
1 × 16 7/1.78 0.7 1.5 9 220 1.15 3.5 100 120
1 × 25 7/2.14 0.9 1.5 10.0 345 0.727 3.5 130 155
1 × 35 7/2.52 0.9 1.5 12.0 424 0.524 3.5 160 185
1 × 50 10/2.52 1.0 1.5 13.0 555 0.387 3.5 195 220
1 × 70 14/2.52 1.1 1.5 14.0 770 0.268 3.5 245 270
1 × 95 19/2.52 1.1 1.5 16.0 1040 0.193 3.5 300 320
1 × 120 24/2.52 1.2 1.5 18.0 1290 0.153 3.5 350 365
1 × 150 30/2.52 1.4 2.0 20.0 1590 0.124 3.5 400 410
1 × 185 37/2.52 1.6 2.0 22.0 1944 0.0991 3.5 465 465
1 × 240 48/2.52 1.7 2.0 25.0 2510 0.0754 3.5 550 540
1 × 300 61/2.52 1.8 2.0 27.0 3042 0.0601 3.5 635 610
1 × 400 61/2.97 2.0 2.1 31.0 3869 0.0470 3.5 745 695
1 × 500 61/3.23 2.2 2.2 35.0 4910 0.0366 3.5 860 780
1 × 630 61/3.50 2.4 2.3 40.0 6220 0.0283 3.5 990 880
1 × 800 91/3.20 2.6 2.4 45.0 7870 0.0221 3.5 1120 970
1 × 1000 91/3.75 2.8 2.6 51.0 9804 0.0176 3.5 1260 1060
2 × 2.5 1/1.78 0.7 1.4 11.8 151 7.41 3.5 26 35
2 × 4 1/2.25 0.7 1.8 12.7 198 4.61 3.5 34 45
2 × 6 1/2.76 0.7 1.8 13.7 250 3.08 3.5 43 57
2 × 10 7/1.38 0.7 1.8 15.0 374 1.83 3.5 60 77
2 × 16 7/1.78 0.7 1.8 17.0 518 1.15 3.5 83 105
2 × 25 7/2.14 0.9 1.8 20.0 772 0.727 3.5 105 125
2 × 35 7/2.52 0.9 1.8 22.0 1006 0.524 3.5 125 155
2 × 50 10/2.52 1.0 1.8 20.0 1365 0.387 3.5 160 185
2 × 70 14/2.52 1.1 1.8 21.0 1872 0.268 3.5 200 225
2 × 95 19/2.52 1.1 1.8 24.0 2475 0.193 3.5 245 270
2 × 120 24/2.52 1.2 1.8 27.0 3089 0.153 3.5 285 310
2 × 150 30/2.52 1.4 1.9 30.0 3834 0.124 3.5 325 345
3 × 1.5 1/1.38 0.7 1.4 10.0 145 12.1 3.5 20 27
3 × 2.5 1/1.78 0.7 1.8 11.0 185 7.41 3.5 26 35
3 × 4 1/2.25 0.7 1.8 12.0 250 4.61 3.5 34 45
3 × 6 1/2.76 0.7 1.8 13.0 320 3.08 3.5 43 57
3 × 10 7/1.38 0.7 1.8 16.0 450 1.83 3.5 60 77
3 × 16 7/1.78 0.7 1.8 18.0 640 1.15 3.5 83 105
3 × 25 7/2.14 0.9 1.8 21.0 940 0.727 3.5 105 125
3 × 35 7/2.52 0.9 1.8 23.0 1260 0.524 3.5 125 155
3 × 50 10/2.52 1.0 1.8 23.0 1670 0.387 3.5 160 185
3 × 70 14/2.52 1.1 1.8 26.0 2280 0.268 3.5 200 225
3 × 95 19/2.52 1.1 1.9 30.0 3020 0.193 3.5 245 270
3 × 120 24/2.52 1.2 2.0 32.0 3790 0.153 3.5 285 310
3 × 150 30/2.52 1.4 2.2 37.0 4750 0.124 3.5 325 345
3 × 185 37/2.52 1.6 2.3 41.0 5654 0.0991 3.5 375 390
3 × 240 48/2.52 1.7 2.4 46.0 7243 0.0754 3.5 440 450
3 × 300 61/2.52 1.8 2.6 51.0 9465 0.0601 3.5 505 515
3 × 400 61/2.97 2.0 3.0 64.0 12066 0.0470 3.5 570 575
4 × 4 1/2.25 0.7 1.8 13.0 253 4.61 3.5 34 45
4 × 6 1/2.76 0.7 1.8 14.0 337 3.08 3.5 43 57
4 × 10 7/1.38 0.7 1.8 17.0 501 1.83 3.5 60 77
4 × 16 7/1.78 0.7 1.8 20.0 778 1.15 3.5 83 105
4 × 25 7/2.14 0.9 1.8 23.0 1160 0.727 3.5 105 125
4 × 35 7/2.52 0.9 1.8 25 1554 0.524 3.5 125 155
4 × 50 10/2.52 1.0 1.8 23 2148 0.387 3.5 160 185
4 × 70 14/2.52 1.1 1.8 27 2928 0.268 3.5 200 225
4 × 95 19/2.52 1.1 1.9 31 3854 0.193 3.5 245 270
4 × 120 24/2.52 1.2 2.0 33 4925 0.153 3.5 285 310
4 × 150 30/2.52 1.4 2.2 38 6238 0.124 3.5 325 345
4 × 185 37/2.52 1.6 2.3 42 7562 0.0991 3.5 375 390
4 × 240 48/2.52 1.7 2.5 47 9836 0.0754 3.5 440 450
4 × 300 61/2.52 1.8 2.6 52 12550 0.0601 3.5 505 515
4 × 400 61/2.97 2.0 3.1 66 15929 0.0470 3.5 570 575
5 × 4 1/2.25 0.7 1.8 14.5 349 4.61 3.5 34 45
5 × 6 1/2.76 0.7 1.8 15.8 460 3.08 3.5 43 57
5× 10 7/1.38 0.7 1.8 19.0 699 1.83 3.5 60 77
5 × 16 7/1.78 0.7 1.8 22.0 1013 1.15 3.5 83 105
5 × 25 7/2.14 0.9 1.8 25.0 1566 0.727 3.5 105 125
5 × 35 7/2.52 0.9 1.9 28.0 2083 0.524 3.5 125 155
5× 50 10/2.52 1.0 2.0 31.0 2921 0.387 3.5 160 185
5× 70 14/2.52 1.1 2.1 36.0 3974 0.268 3.5 200 225
5× 95 19/2.52 1.1 2.2 39.0 5297 0.193 3.5 245 270
5 × 120 24/2.52 1.2 2.4 44.0 6638 0.153 3.5 285 310
5 × 150 30/2.52 1.4 2.5 49.0 8290 0.124 3.5 325 345
5 × 185 37/2.52 1.6 2.7 55.0 10215 0.0991 3.5 375 390
5 × 240 48/2.52 1.7 3.0 64.0 13130 0.0754 3.5 440 450
5 × 300 61/2.52 1.8 3.2 70.0 16670 0.0601 3.5 505 515
3 × 4+ 1 × 2.5 1/2.25+1/1.38 0.7 1.8 13 236 4.61 3.5 34 45
3 × 6+ 1 × 4 1/2.76+1/2.25 0.7 1.8 14 316 3.08 3.5 43 57
3 × 10+ 1 × 6 7/1.38+1/2.8 0.7 1.8 17 461 1.83 3.5 60 77
3 × 16+ 1 × 10 7/1.78+7/1.38 0.7 1.8 19 679 1.15 3.5 83 105
3 × 25+ 1 × 16 7/2.14+7/1.78 0.9 1.8 22 1065 0.727 3.5 105 125
3 × 35+ 1 × 16 7/2.52+7/1.78 0.9 1.8 24 1360 0.524 3.5 125 155
3 × 50+ 1 × 25 10/2.52+7/2.14 1.0 1.8 25 1901 0.387 3.5 160 185
3 × 70+ 1 × 35 14/2.52+7/2.52 1.1 1.9 28 2585 0.268 3.5 200 225
3 × 95+ 1 × 50 19/2.52+10/2.52 1.1 2.0 32 3518 0.193 3.5 245 270
3 × 120+ 1 × 70 24/2.52+14/2.52 1.2 2.1 35 4443 0.153 3.5 285 310
3 × 150+ 1 × 70 30/2.52+14/2.52 1.4 2.2 40 5326 0.124 3.5 325 345
3 × 185+ 1 × 95 37/2.52+19/2.52 1.6 2.4 43 6682 0.0991 3.5 375 390
3 × 240+ 1 × 120 48/2.52+24/2.52 1.7 2.5 48 8501 0.0754 3.5 440 450
3 × 300+ 1 × 150 61/2.52+30/2.52 1.8 2.7 54 11155 0.0601 3.5 505 515
3 × 4+ 2 × 2.5 1/2.25+1/1.38 0.7 1.8 13.9 309 4.61 3.5 34 45
3 × 6+ 2 × 4 1/2.76+1/2.25 0.7 1.8 15.3 413 3.08 3.5 43 57
3 × 10+ 2 × 6 7/1.38+1/2.8 0.7 1.8 17.7 603 1.83 3.5 60 77
3 × 16+ 2 × 10 7/1.78+7/1.38 0.7 1.8 20.7 888 1.15 3.5 83 105
3 × 25+ 2 × 16 7/2.14+7/1.78 0.9 1.8 24.0 1342 0.727 3.5 105 125
3 × 35+ 2 × 16 7/2.52+7/1.78 0.9 1.8 25.7 1647 0.524 3.5 125 155
3 × 50+ 2 × 25 10/2.52+7/2.14 1.0 1.9 28.8 2386 0.387 3.5 160 185
3 × 70+ 2 × 35 14/2.52+7/2.52 1.1 2.0 32.4 3201 0.268 3.5 200 225
3 × 95+ 2 × 50 19/2.52+10/2.52 1.1 2.1 35.6 4269 0.193 3.5 245 270
3 × 120+ 2 × 70 24/2.52+14/2.52 1.2 2.3 41.1 5437 0.153 3.5 285 310
3 × 150+ 2 × 70 30/2.52+14/2.52 1.4 2.4 43.6 6519 0.124 3.5 325 345
3 × 185+ 2 × 95 37/2.52+19/2.52 1.6 2.5 49.1 8101 0.0991 3.5 375 390
3 × 240+ 2 × 120 48/2.52+24/2.52 1.7 2.7 54.2 10340 0.0754 3.5 440 450
3 × 300+ 2 × 150 61/2.52+30/2.52 1.8 2.8 55.6 12810 0.0601 3.5 505 515
4 × 10+ 1 × 6 7/1.38+1/2.8 0.7 1.8 18.3 649 1.83 3.5 60 77
4 × 16+ 1 × 10 7/1.78+7/1.38 0.7 1.8 21.1 965 1.15 3.5 83 105
4 × 25+ 1 × 16 7/2.14+7/1.78 0.9 1.8 24..5 1456 0.727 3.5 105 125
4 × 35+ 1 × 16 7/2.52+7/1.78 0.9 1.8 26.9 1863 0.524 3.5 125 155
4 × 50+ 1 × 25 10/2.52+7/2.14 1.0 1.9 28.8 2633 0.387 3.5 160 185
4 × 70+ 1 × 35 14/2.52+7/2.52 1.1 2.0 32.4 3565 0.268 3.5 200 225
4 × 95+ 1 × 50 19/2.52+10/2.52 1.1 2.1 35.6 4735 0.193 3.5 245 270
4 × 120+ 1 × 70 24/2.52+14/2.52 1.2 2.3 41.1 5977 0.153 3.5 285 310
4 × 150+ 1 × 70 30/2.52+14/2.52 1.4 2.4 43.6 7276 0.124 3.5 325 345
4 × 185+ 1 × 95 37/2.52+19/2.52 1.6 2.5 49.1 9055 0.0991 3.5 375 390
4 × 240+ 1 × 120 48/2.52+24/2.52 1.7 2.7 54.2 11567 0.0754 3.5 440 450
4 × 300+ 1 × 150 61/2.52+30/2.52 1.8 3.1 66.3 14321 0.0601 3.5 505 515

We are China Laying Indoor / Outdoor XLPE Insulated Power Cable , XLPE Insulated PVC Sheathed Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
