Lightweight Come Along Clamp 80KN Cable Pulling Conductors Adjustment

 China Lightweight Come Along Clamp 80KN Cable Pulling Conductors Adjustment supplier

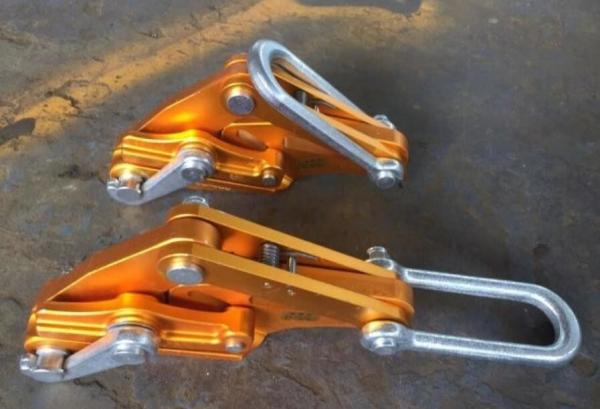

Lightweight Come Along Clamp 80KN Cable Pulling Conductors Adjustment image

Get a Quote Email to us

Brand Name :
Suntech

Model Number :
SKL

Certification :
ISO

Place of Origin :
Ningbo,China

MOQ :
1pcs

Price :
Get the lastest price

Payment Terms :
L/C, T/T, Western Union

Supply Ability :
1500pcs per month

Delivery Time :
In Stock

Packaging Details :
Exported Wooden Case

Using :
Adjustment ,Sagging

Rated Load :
80KN

Applicable Conductor :
ACSR1120

Advantage :
Light Weight

Name :
Come Along Clamp

Cable Pulling Tools Wire Grip Clamp For Big Conductors Adjustment / Sagging

This wire grip clamp is for big conductors adjustment or sagging, which is processed during the heat treatment, and high temperature conditions,( quenched and tempered). Planar shape clamping jaw is suitable for pulling steel strand and steel wire, will not damage the cable's surface.

Wire Roper Clamp Features:

Cable Pulling Tools Wire Grip Clamp For Big Conductors Adjustment / Sagging

1. Forged with high strength Aluminum alloy;

2. Light in weight;

3. no damaging on wire.

Wire Grip Shipment

1. The wire grips will be shipped in plywood case by air or by ship.

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.

Self Gripping Clamp Detailed Spec

Cable Pulling Tools Wire Grip Clamp For Big Conductors Adjustment / Sagging

Item No. Model No. Rated Load
(KN)
Applicable Conductor
(ACSR-MM2)
Max Open
(MM)
Unit Weight
(KG)
0201 SKL-7 7 25~70 14 1.0
0202 SKL-15 15 95~120 18 1.4
0203 SKL-25 25 150~240 24 3.0
0204 SKL-40 40 300~400 32 4.0
0205 SKL-50 50 500~630 36 6.6
0206 SKL-40G 40 400 32 4.3
0207 SKL-50G 50 500 34 7.0
0208 SKL-50GA 50 630 36 7.3
0209 SKL-60G 60 720 38 9.2
0210 SKL-70G 70 900 42 14.0
0211 SKL-80G 80 1000 45 18.0
0212 SKL-80GA 80 1200 48 18.0

We are China Lightweight Come Along Clamp 80KN Cable Pulling Conductors Adjustment manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
