LOW price Flat Flexible Rubber/EPR Cable(YFFB,HT-PNCT)

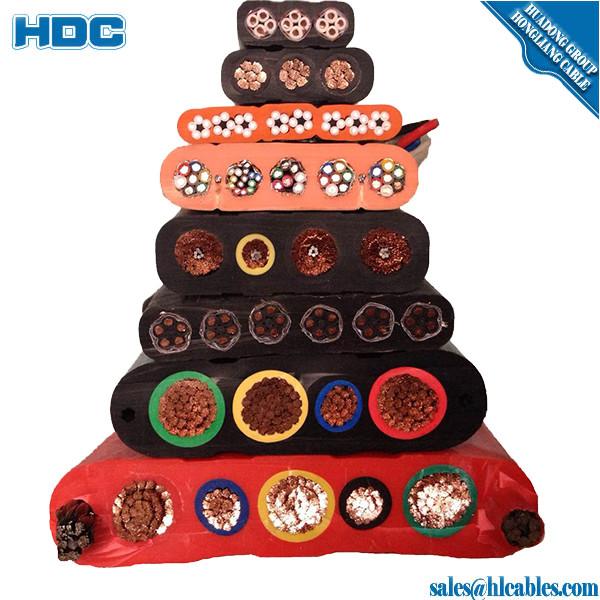

LOW price Flat Flexible Rubber/EPR Cable(YFFB,HT-PNCT) image

Get a Quote Email to us

Brand Name :
huadong cable

Place of Origin :
China

MOQ :
100 meters

Price :
$0.1-100 per meter

Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability :
5000000meters per month

Delivery Time :
5-8 work days

Packaging Details :
Wooden Drum+Wooden Pallet/Wooden Box

Voltage :
300/500V; 450/750V; 0.6/1kv

Conductor :
Copper/Tinned Copper

Insulation :
PVC/Rubber/EPR

Cores :
Multi-Core

Standard :
VDE0482,part 265-2-1 resp.EN50265-2-1 and IEC603321-

Packaging :
Wooden Drum+Wooden Pallet/Wooden Box

^Description:

^{Model NO.: H07VVH6-F, YFFB, HT-PNCT; HT-PNCT-R;HT-PNCT-F,etc. other types can be produced according to client's requestment.}

^{Conductor Type: Stranded}

^{Conductor Material: Copper/Tinned Copper}

^{Insulation Material: PVC/Rubber/EPR}

^{Transport Package: Wooden Drum+Wooden Pallet/Wooden Box}

^{Material Shape: Flat Cable}

^{Rated Voltage: 300/500V; 450/750V; 0.6/1kv}

^Structure:

^{1.Conductor: superfine copper strands acc. to VDE0295,class 5.}

^{2.Insulation: mixed PVC/Rubber, resistant to oil, flame resistance and self-extinguishing}

^{Color: acc. to 2271IEC(brown, blue, black, green/yellow)}

^{5 cores or more with black number with white digital coding}

^{3.Sheath: Butadiene-acrylonitrile rubber; resistant to oil, flame retardant and self- extinguishing}

^{4.Color: black (RAL9005) or grey(RAL7001).}

^{5.Standard: acc. to VDE0482,part 265-2-1 resp.EN50265-2-1 and IEC603321-1}

^{6.Technical data:}

^{7.Rated voltage: 300/500V}

^{Test voltage:<=1.5mm 2500V >1.5mm:3000V}

^{8.Minimum bending radius:0.3m<L<0.6m}

^{9.Burning vertically test: GB/T1 8380.1–2001,IEC60332–1:1993 test}

^{10.Passedstandard:GB5023.6 ,IEC60227–6,EN50214.}

^{Used under the normal conditions, the temperature of conductors is lower than 70ºC}

^{11.Temperature range:-15C to +40C}

We are China LOW price Flat Flexible Rubber/EPR Cable(YFFB,HT-PNCT) manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
