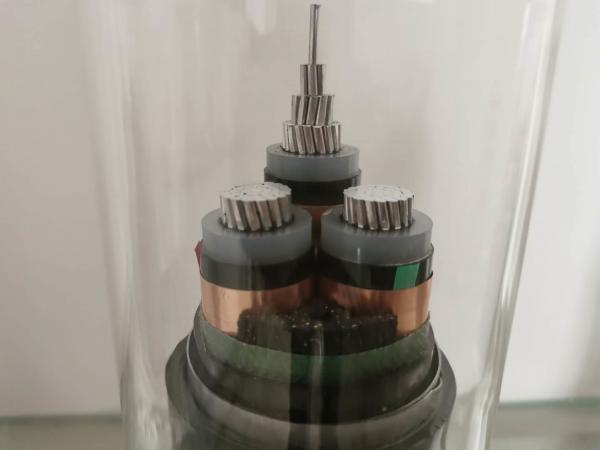

Low Voltage 3 Core Xlpe Insulated Cable Chemical Resistant
Low Voltage 3 Core Xlpe Insulated Cable Chemical Resistant image
Brand Name :
HOLD-ONE
Certification :
CE/IEC/KEMA/VDE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100km per Month
Delivery Time :
8-15 days
Packaging Details :
Iron-wooden Drum or Whole Wooden Drum
Name :
Copper Conductor Cable
Conductor Material :
Copper
standard :
IEC 60502-1
Outer Sheath :
XLPE
Color :
Customized
Type :
XLPE Underground Cable
Low Voltage 3 Core Xlpe Insulated Cable
Cross-linked polyethylene insulated PVC sheathed power cable with excellent thermo-mechanical properties, excellent electrical properties and chemical resistance. It also has the advantages of simple structure, light weight and no drop limit. It is a new type of cable widely used in city power grids, mines and factories. The maximum rated working temperature of the cross-linked polyethylene insulated power cable conductor is 90°C, which is higher than that of PVC insulated and polyethylene insulated cables, further increasing the cable's load capacity.
| Voltage rating for XLPE Power Cable | No. x Nominal Cross Section of Conductor No. x mm2 | |||||||
| 1 core | 2 core | 3 core | 3+1 core | 4core | 3+2 core | 4+1 core | 5 core | |
| 0.6/1 kV | 1×4 mm2 | 2×4 mm2 | 3×4 mm2 | 3×4 mm2 + 1×2.5mm2 | 4×4 mm2 | 3×4 mm2 + 2×2.5mm2 | 4×4 mm2 + 1×2.5mm2 | 5×2.5 mm2 |
| 1×6 mm2 | 2×6 mm2 | 3×6 mm2 | 3×6 mm2 + 1×4 mm2 | 4×6 mm2 | 3×6 mm2 + 2×4 mm2 | 4×6 mm2 + 1×4 mm2 | 5×4 mm2 | |
| 1×10 mm2 | 2×10 mm2 | 3×10 mm2 | 3×10 mm2 + 1×6 mm2 | 4×10 mm2 | 3×10 mm2 + 2×6 mm2 | 4×10 mm2 + 1×6 mm2 | 5×6 mm2 | |
| 1×16 mm2 | 2×16 mm2 | 3x16mm2 | 3×16 mm2 + 1×10 mm2 | 4×16 mm2 | 3×16 mm2 + 2×10 mm2 | 4×16 mm2 + 1×10 mm2 | 5×10 mm2 | |
| 1x 25 mm2 | 2x 25 mm2 | 3x 25 mm2 | 3×25 mm2 + 1x16mm2 | 4×25 mm2 | 3×25 mm2 + 2x16mm2 | 4×25 mm2 + 1x16mm2 | 5×16 mm2 | |
| 1×35 mm2 | 2×35 mm2 | 3x 35 mm2 | 3×35 mm2 + 1x16mm2 | 4×35 mm2 | 3×35 mm2 + 2x16mm2 | 4×35 mm2 + 1x16mm2 | 5×25 mm2 | |
| 1×50 mm2 | 2×50 mm2 | 3x 50 mm2 | 3×50 mm2 + 1x25mm2 | 4×50 mm2 | 3×50 mm2 + 2x25mm2 | 4×50 mm2 + 1x25mm2 | 5×35 mm2 | |
| 1×70 mm2 | 2×70 mm2 | 3x 70 mm2 | 3×70 mm2 + 1x35mm2 | 4×70 mm2 | 3×70 mm2 + 2x35mm2 | 4×70 mm2 + 1x35mm2 | 5×50 mm2 | |
| 1×95 mm2 | 2×95 mm2 | 3x 95 mm2 | 3×95 mm2 + 1x50mm2 | 4×95 mm2 | 3×95 mm2 + 2x50mm2 | 4×95 mm2 + 1x50mm2 | 5×70 mm2 | |
| 1×120 mm2 | 2×120 mm2 | 3x 120 mm2 | 3x120mm2 + 1x70mm2 | 4×120 mm2 | 3x120mm2 + 2x70mm2 | 4x120mm2 + 1x70mm2 | 5×95 mm2 | |
| 1×150 mm2 | 2×150 mm2 | 3x 150 mm2 | 3x150mm2 + 1x70mm2 | 4×150 mm2 | 3x150mm2 + 2x70mm2 | 4x150mm2 + 1x70mm2 | ||
| 1×185 mm2 | 2×185 mm2 | 3x 185 mm2 | 3x185mm2 + 1x95mm2 | 4×185 mm2 | 3x185mm2 + 2x95mm2 | 4x185mm2 + 1x95mm2 | ||
| 1×240 mm2 | 3x 240 mm2 | 3x240mm2 + 1x120mm2 | 4×240 mm2 | 3x240mm2 + 2x120mm2 | 4x240mm2 + 1x120mm2 | |||
| 1×300 mm2 | 3x 300 mm2 | 3x300mm2 + 1x150mm2 | 4×300 mm2 | 3x300mm2 + 2x150mm2 | 4x300mm2 + 1x150mm2 | |||
| 1×400 mm2 | ||||||||
| 1×500 mm2 | ||||||||
Application:
1. Operating Features:
The maximum conductor operating temperature: 90°C
During short circuit (lasting less than 5 seconds) the maximum temperature of the cable conductor shall not be above 250°C
Environment temperature should be no lower than 0°C for laying the cable.
2. Bending Radius of the Cable:
Single Core Cable: Non Armored Cable 20D, Armored Cable 15D.
Cores Cable: Non Armored Cable 15D, Armored Cable 12D.
Usage: The product is suitable for use in power distribution lines or fixed installations with rated power- frequency voltage up to and including 1Kv, AC 50Hz.
We are China Low Voltage 3 Core Xlpe Insulated Cable Chemical Resistant manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
