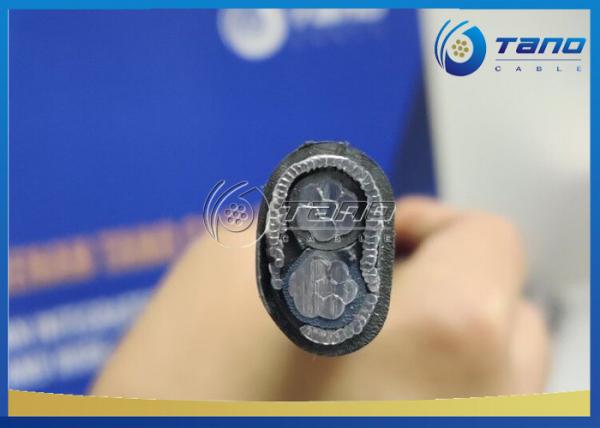

Low Voltage Concentric Neutral Power Cable 0.6 / 1KV Cable 2 3 4 Core ISO Certification

Low Voltage Concentric Neutral Power Cable 0.6 / 1KV Cable 2 3 4 Core

APPLICATIONS

URD – TRXLPEMLPE insulated cables are designed and manufactured to meet the applications of primary underground distribution suitable for use in wet or dry location, direct burial, underground duct, and exposed to sunlight, To be used at 15kV 35kV at conductor temperatures not to exceed 90 . C for normal operation.

SPECIFICATIONS

TRXLPEMLP insulated URD cables meets or exceeds all applicable requirements of standards, and guaranteed all cables manufactured and tested under .

– ANSIIICEA S94-649

– AEIC CS-8

– ASTM B-3, ASTM B-8, ASTM B-230 & ASTM B-231

CONSTRUCTION

Conductor Bare aluminium or copper, stranded class B compressed stranding

Conductor ShieldExtruded semi-conducting compound

Insulation TRXLP (TreeRetardant XLPE) or XLPE

Insulation Shield Extruded semi-conducting compound

Concentric Neutral Uncoated copper concentric neutral wires (coated copper optional)

Encapsulated Jacket LLDPE embedded jacket with extruded red stripes.

PVC or Semi-conducting jacket are available upon request

MAXIMUM CONDUCTOR TEMPERATURE

Normal continuous at 90 ºC, Overload at 130 ºC and Short circuit at 250 ºC

FEATURES & BENEFITS, OPTIONS

– Triple extruded construction dry curing process guarantees excellent quality of

– TR XLPE insulation offers proven superior life span than conventional XLPE cables

– Triplex type is optional, it brings you saving installation cost

– Strand-filled conductor & Water-blocking jacket is available upon request

Technical date:
