LV Underground 4 Core Copper Armoured Cable XLPE/PE/PVC Insulation

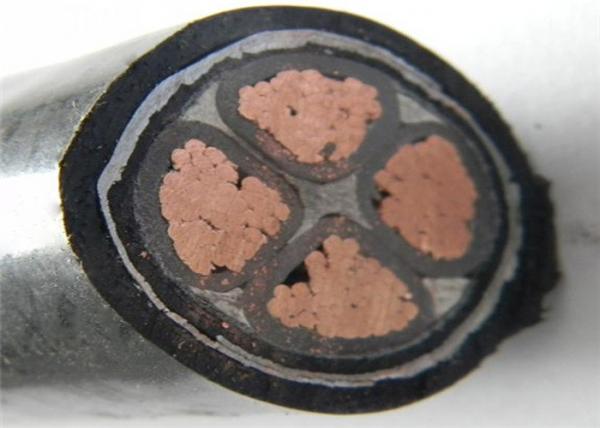

LV Underground 4 Core Copper Armoured Cable XLPE/PE/PVC Insulation image
LV Underground 4 Core Copper Armoured Cable XLPE/PE/PVC Insulation
4 Core Copper Armoured Cable Application:
This cable is used for fixed installations, such as distrubution networks or industrial installations. It can be installed in cable duct, trench or directly buried in earth.
4 Core Copper Armoured Cable Applicable Standard:
We can produce according to standard IEC60502-1 , BS 5467, ICEA S-95-658, CSA C22.2 , NFC 33-210 /NFC 32-322, AS-NZS 5000.1,etc
4 Core Copper Armoured Cable Characters:
1. Rated voltage: 0.6/1KV
2. Cable core number: 1Core , 2Core,3Core , 4Core , 5Core , 3+1Core(3.5Core) , 3+2 Core , 4+1Core , etc.
Construction:
Conductor: Cu/Al (Solid/Stranded)
Insulation: XLPE/PVC/PE/LSHF
Inner sheath (applicable if there is armor layer): PVC/PE
Armor layer (if required) :Al tape/Al wire/ Steel wire / Steel Tape
Outer sheath : PVC/PE/LSHF
4 core 600/1000V cables with stranded copper conductors
|
Nominal cross-sectional area of conductor |
Thickness of insulation |
Thickness of extruded bedding |
Nominal steel armor wire diameter |
Thickness of oversheath |
Approximate overall diameter |
|
|
Extruded bedding |
Taped bedding |
|||||
|
mm² |
mm |
mm |
mm |
mm |
mm |
mm |
|
1.5a |
0.6 |
0.8 |
0.9 |
1.3 |
12.6 |
|
|
2.5a |
0.7 |
0.8 |
0.9 |
1.4 |
14.1 |
|
|
4a |
0.7 |
0.8 |
0.9 |
1.4 |
15.3 |
|
|
6a |
0.7 |
0.8 |
0.9 |
1.4 |
16.6 |
|
|
10a |
0.7 |
0.8 |
1.25 |
1.5 |
19.5 |
|
|
|
|
|
|
|
|
|
|
16a |
0.7 |
0.8 |
1.25 |
1.6 |
21.6 |
21.6 |
|
|
|
|
|
|
|
|
|
25b |
0.9 |
1.0 |
1.6 |
1.7 |
23.6 |
23.2 |
|
25a |
0.9 |
1.0 |
1.6 |
1.7 |
26.7 |
26.3 |
|
|
|
|
|
|
|
|
|
35b |
0.9 |
1.0 |
1.6 |
1.8 |
25.7 |
25.3 |
|
35a |
0.9 |
1.0 |
1.6 |
1.8 |
29.4 |
29.0 |
|
|
|
|
|
|
|
|
|
50b |
1 |
1.0 |
1.6 |
1.8 |
28.5 |
28.1 |
|
70b |
1.1 |
1.0 |
1.6 |
1.9 |
32.2 |
31.8 |
|
95b |
1.1 |
1.2 |
2.0 |
2.1 |
37.0 |
36.2 |
|
|
|
|
|
|
|
|
|
120b |
1.2 |
1.2 |
2.0 |
2.2 |
40.4 |
39.6 |
|
150b |
1.4 |
1.4 |
2.5 |
2.3 |
45.5 |
44.3 |
|
185b |
1.6 |
1.4 |
2.5 |
2.4 |
49.8 |
48.6 |
|
|
|
|
|
|
|
|
|
240b |
1.7 |
1.4 |
2.5 |
2.6 |
55.1 |
53.9 |
|
300b |
1.8 |
1.6 |
2.5 |
2.7 |
60.2 |
58.6 |
|
400b |
2.0 |
1.6 |
2.5 |
2.9 |
66.6 |
65.0 |
|
a Circular or compacted circular standed conductor(class2) b Shaped stranded conductor(class2) |
||||||
