Medium Voltage Copper or Aluminum Conductor XLPE Insulated Power Cable Embossing Marking

 China Medium Voltage Copper or Aluminum Conductor XLPE Insulated Power Cable Embossing Marking supplier

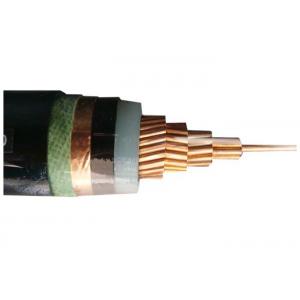

Medium Voltage Copper or Aluminum Conductor XLPE Insulated Power Cable Embossing Marking image

Get a Quote Email to us

Brand Name :SHANCABLE
Model Number :YJV,YJLV N2XY,N2AXY CU or AL/XLPE/PVC
Certification :ISO,CE,IEC,TUV,KEMA
Place of Origin :Shanghai, China
MOQ :Negotiable
Price :Negotiable
Payment Terms :L/C, T/T
Supply Ability :100KM/Week
Delivery Time :10 Days
Packaging Details :Wooden Drum
Rated Voltage :26/35kV
Insulation Color :Nature or customized
Core Indefinitaion :Color Strip for three core or Mark with the Number
Cable Mark :Embossing
Outer Sheath Color :Black or customized
Drum Length :300m per Drum
Packing Style :Steel wooden Drum/Whole Wooden Drum/ Whole metal Drum
Port :Shanghai Port
Drum Size :2240mm ( Height) * 2240mm (length) * 1400 mm (width)

Medium Voltage Copper or Aluminum Conductor XLPE Insulation Cable Embossing Marking

Applications: XLPE Insulated Cable is used as power distribution and transmission line at rated voltage 26/35kV.

Construction:

Conductor Copper Conductor as per IEC 60228,Class 2
Circular or Shaped conductor
Flexible conductor(class 5) optional.
Insulation XLPE (Cross-Linked Polyethylene) rated at 90℃,many color optional
Metallic Screen optional Copper tape or copper wires braiding optional
Sheath PVC or FR-PVC type ST2 to IEC 60502, black or red or customization

Ordering Advice

Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement

Technical data: Rated voltage:26/35kV Medium Voltage

Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core without armor

15 x cable O.D for multi core without armor

15 x cable O.D for single core with armor

12 x cable O.D for multi core with armor

Standards: International: IEC 60502-2, IEC 60228, (IEC 60332-3 for FR-type only)

China: GB/T 12706, (GB/T 18380-3 for FR-type only)

Other standards such as BS, DIN, VDE and ICEA upon request

Technical parameter:

Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Sheath Thickness Approx. O.D.

Approx.

Weight

Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm mm kg/km Ω /km kV/5min In air (A) In soil(A)
1 × 50 10/2.52 10.5 2.2 39.0 1758 0.387 91 220 215
1 × 70 14/2.52 10.5 2.4 41.0 2038 0.268 91 270 265
1 × 95 19/2.52 10.5 2.4 42.0 2355 0.193 91 330 315
1 × 120 24/2.52 10.5 2.4 44.0 2666 0.153 91 375 360
1 × 150 30/2.52 10.5 2.5 45.0 3031 0.124 91 425 400
1 × 185 37/2.52 10.5 2.5 47.0 3427 0.0991 91 485 455
1 × 240 48/2.52 10.5 2.6 49.0 4070 0.0754 91 560 525
1 × 300 61/2.52 10.5 2.7 51.0 4748 0.0601 91 650 595
1 × 400 61/2.97 10.5 2.8 55.0 5801 0.0470 91 760 680
1 × 500 61/3.23 10.5 2.9 58.0 6623 0.0366 91 875 775
1 × 630 61/3.50 10.5 3 62.0 5211 0.0283 91 1000 875
1 × 800 91/3.20 10.5 3.1 68.0 10014 0.0221 91 1130 970
1 × 1000 91/3.75 10.5 3.3 72.0 12078 0.0176 91 1250 1060
3 × 50 10/2.52 10.5 3.7 81.0 6728 0.387 91 185 200
3 × 70 14/2.52 10.5 3.8 84.0 7581 0.268 91 230 250
3 × 95 19/2.52 10.5 3.9 88.0 8630 0.193 91 280 300
3 × 120 24/2.52 10.5 4.0 91.0 9688 0.153 91 310 330
3 × 150 30/2.52 10.5 4.1 95.0 11017 0.124 91 360 380
3 × 185 37/2.52 10.5 4.2 98.0 12390 0.0991 91 400 425
3 × 240 48/2.52 10.5 4.4 103.0 14427 0.0754 91 470 490
3 × 300 61/2.52 10.5 4.5 108.0 15940 0.0601 91 540 555
3 × 400 61/2.97 10.5 4.8 116.0 19346 0.0470 91 610 625

Packing and shipping: We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

After-service commitment: Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:

1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service. Our product are warranted by PICC (People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
Shanghai Shenghua Cable (Group) Co., Ltd.

FAQ
Q: How long does it take to get a quote back?

A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.

Q: What warranties do your products carry?

A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :
1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire
2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.

Q: Do you sell other products besides wire and cable?

A: Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world.

We are China Medium Voltage Copper or Aluminum Conductor XLPE Insulated Power Cable Embossing Marking manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
