Metal ACSR Aluminum Conductor For Overhead Transmission DIN 48204 Standard

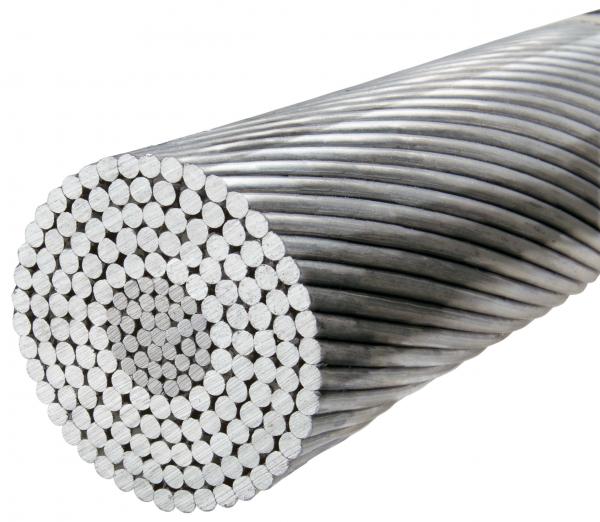

Metal ACSR Aluminum Conductor For Overhead Transmission DIN 48204 Standard image
Brand Name :
TANO CABLE
Model Number :
ACSR
Certification :
ISO
Place of Origin :
Henan, China
MOQ :
5000m
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200TON/per month
Delivery Time :
7-30days
Packaging Details :
By wooden or steel-wooden drum
application :
overhead transmission
conductor :
aluminum, steel wire
insulation :
without
sheath :
without
name :
ACSR Aluminum Conductor
model :
ACSR
TANO CABLE 95 /15 795 MCM Bare ACSR Conductor Philippines Myanmar Peru Use
Technical specification
| Nominal Area | Sectional Area | No./Nominal diameter of wires | Approximate Overall Diameter | Approximate Weight | Nominal Breaking Load | Nominal DC Resistance at 20℃ | Current Rating(*) | ||||
| Aluminum | Steel | Aluminum | Steel | Total | Aluminum | Steel | |||||
| mm2 | mm2 | mm2 | mm2 | mm2 | No./mm | No./mm | mm | kg/km | KN | ohm/km | A |
| 16 | 2.5 | 15.27 | 2.54 | 17.8 | 6/1.80 | 1/1.80 | 5.4 | 62 | 5.81 | 1.8793 | 83 |
| 25 | 4 | 23.86 | 3.98 | 27.8 | 6/2.25 | 1/2.25 | 6.8 | 97 | 9.02 | 1.2028 | 109 |
| 35 | 6 | 34.35 | 5.73 | 40.1 | 6/2.70 | 1/2.70 | 8.1 | 140 | 12.7 | 0.8353 | 136 |
| 44 | 32 | 43.98 | 31.67 | 75.7 | 14/2.00 | 7/2.40 | 11.2 | 373 | 45.46 | 0.6573 | 166 |
| 50 | 8 | 48.25 | 8.04 | 56.3 | 6/3.20 | 1/3.20 | 9.6 | 196 | 17.18 | 0.5946 | 168 |
| 50 | 30 | 51.17 | 29.85 | 81 | 12/2.33 | 7/2.33 | 11.7 | 378 | 44.28 | 0.5644 | 181 |
| 70 | 12 | 69.89 | 11.4 | 81.3 | 26/1.85 | 7/1.44 | 11.7 | 284 | 26.31 | 0.413 | 211 |
| 95 | 15 | 94.39 | 15.33 | 109.7 | 26/2.15 | 7/1.67 | 13.6 | 383 | 35.17 | 0.3058 | 254 |
| 95 | 55 | 96.51 | 56.3 | 152.8 | 12/3.20 | 7/3.20 | 16 | 714 | 80.2 | 0.2992 | 267 |
| 105$ | 75 | 105.67 | 75.55 | 181.2 | 14/3.10 | 19/2.25 | 17.5 | 899 | 106.69 | 0.2736 | 284 |
| 120 | 20 | 121.57 | 19.85 | 141.4 | 26/2.44 | 7/1.90 | 15.5 | 494 | 44.94 | 0.2374 | 297 |
| 120 | 70 | 122.15 | 71.25 | 193.4 | 12/3.60 | 7/3.60 | 18 | 904 | 98.16 | 0.2364 | 308 |
| 125 | 30 | 127.92 | 29.85 | 157.8 | 30/2.33 | 7/2.33 | 16.3 | 590 | 57.86 | 0.2259 | 308 |
| 150 | 25 | 148.86 | 24.25 | 173.1 | 26/2.70 | 7/2.10 | 17.1 | 604 | 54.37 | 0.1939 | 336 |
| 170 | 40 | 171.77 | 40.08 | 211.9 | 30/2.70 | 7/2.70 | 18.9 | 794 | 77.01 | 0.1682 | 369 |
| 185 | 30 | 183.78 | 29.85 | 213.6 | 26/3.00 | 7/2.33 | 19 | 744 | 66.28 | 0.1571 | 382 |
| 210 | 35 | 209.1 | 34.09 | 243.2 | 26/3.20 | 7/2.49 | 20.3 | 848 | 74.94 | 0.138 | 414 |
| 210 | 50 | 212.06 | 49.48 | 261.5 | 30/3.00 | 7/3.00 | 21 | 979 | 92.25 | 0.1363 | 420 |
| 230 | 30 | 230.91 | 29.85 | 260.8 | 24/3.50 | 7/2.33 | 21 | 874 | 73.09 | 0.1249 | 438 |
| 240 | 40 | 243.05 | 39.49 | 282.5 | 26/3.45 | 7/2.68 | 21.8 | 985 | 86.46 | 0.1188 | 453 |
| 265 | 35 | 263.66 | 34.09 | 297.8 | 24/3.74 | 7/2.49 | 22.4 | 998 | 82.94 | 0.1094 | 475 |
| 300 | 50 | 304.26 | 49.48 | 353.7 | 26/3.86 | 7/3.00 | 24.5 | 1233 | 105.09 | 0.0949 | 520 |
| 305 | 40 | 304.62 | 39.49 | 344.1 | 54/2.68 | 7/2.68 | 24.1 | 1155 | 99.3 | 0.0949 | 518 |
| 340 | 30 | 339.29 | 29.85 | 369.1 | 48/3.00 | 7/2.33 | 25 | 1174 | 92.56 | 0.0851 | 551 |
| 380 | 50 | 381.7 | 49.48 | 431.2 | 54/3.00 | 7/3.00 | 27 | 1448 | 120.91 | 0.0757 | 593 |
| 385 | 35 | 386.04 | 34.09 | 420.1 | 48/3.20 | 7/2.49 | 26.7 | 1336 | 104.31 | 0.0748 | 595 |
| 435 | 55 | 434.29 | 56.3 | 490.6 | 54/3.20 | 7/3.20 | 28.8 | 1647 | 136.27 | 0.0666 | 641 |
| 450 | 40 | 448.71 | 39.49 | 488.2 | 48/3.45 | 7/2.68 | 28.7 | 1553 | 120.19 | 0.0644 | 651 |
| 490 | 65 | 490.28 | 63.55 | 553.8 | 54/3.40 | 7/3.40 | 30.6 | 1860 | 152.85 | 0.059 | 689 |
| 550 | 70 | 549.65 | 71.25 | 620.9 | 54/3.60 | 7/3.60 | 32.4 | 2085 | 167.42 | 0.0526 | 737 |
(*) Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80° C.
ALUMINIUM CONDUCTORS STEEL REINFORCED – ACSR
Standard
DIN 48204
FAQ
Q1. Are you a manufacturer?
Yes, we are a manufacturer own factory with almost 30 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power Cable,Copper Alloy Wire for Electrical Railway System
Q3. How can I get samples?
Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar model is OK for you. we provide the free samples for inspection while freight is charged.
Q4. What is our payment terms ?
We can accept the following payment terms: T/T, L/C
Q5. What’s the package of products ?
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers’ requirement.
Packing
Factory workshop
We are China Metal ACSR Aluminum Conductor For Overhead Transmission DIN 48204 Standard manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: ACSR Aluminum Conductor, acsr conductor, Aluminum Conductor Steel ReinforcedSimilar Or Related
-
