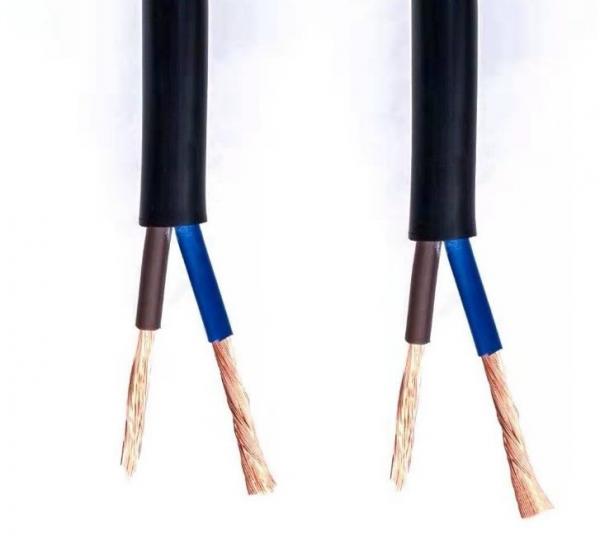

Multi Core Fire Rated Control Cable NYYHY PVC Jacket Stranded Cable Wire
Multi Core Fire Rated Control Cable NYYHY PVC Jacket Stranded Cable Wire image
Model Number :NYYHY
Certification :CE/CCC/ISO9001
Place of Origin :China
MOQ :1000
Price :1-100
Payment Terms :L/C, T/T, Western Union
Supply Ability :1000 km per month
Delivery Time :10-20 days
Packaging Details :standard export packing in wooden drums or boxes
Product Name :Fire Resistant Control Cable
Conductor material :Copper Core Stranded Cord
Insulation :PVC
Rated voltage :0.6/1 kv
Jacket :PVC
Packing specification :100m, 500m, 1000m
Multi core PVC insulated pvc sheathed flame resistant instrument control cable NYYHY
Meaning:
Basic Information:
Standard:
Specificaiton:
| Product name | Fire Resistant Control Cable |
| Certifications | CE/CCC/ISO |
| Standard | IEC60502-1 |
| Rated Voltage | 600/1000V |
| Conductor material | Copper |
| Insulation Material | PVC |
| Armoured Material | None/Steel Tape/Steel wire |
| Jacket Material | PVC |
| Number of cores | 2-5 cores, 7-36 cores |
| Section area | 0.5-6 mm² |
|
Number of cores×standard cross section (mm)
|
Specification
|
Insulation thickness specified value (mm)
|
Specified value of sheath thickness (mm)
|
Conductor resistance Ω/km at 20℃ is not more than
|
|
|
Copper core
|
Galvanized copper core
|
||||
|
2×0.5
|
16/0.20
|
0.5
|
0.6
|
39.0
|
40.1
|
|
2X0.75
|
24/0.20
|
0.6
|
0.8
|
26.0
|
26.7
|
|
2X1
|
32/0.20
|
0.6
|
0.8
|
19.5
|
20.0
|
|
2X1.5
|
30/0.25
|
0.7
|
0.8
|
13.3
|
13.7
|
|
2X2.5
|
49/0.25
|
0.8
|
1.0
|
7.98
|
8.21
|
|
3×0.5
|
16/0.20
|
0.6
|
0.6
|
39.0
|
40.1
|
|
3X0.75
|
24/0.20
|
0.6
|
0.8
|
26.0
|
26.7
|
|
3X1
|
32/0.20
|
0.6
|
0.8
|
19.5
|
20.0
|
|
3X1.5
|
30/0.25
|
0.7
|
0.9
|
13.3
|
13.7
|
|
3X2.5
|
49/0.25
|
0.8
|
1.1
|
7.98
|
8.21
|
|
4X0.75
|
24/0.20
|
0.6
|
0.8
|
26.0
|
26.7
|
|
4X1
|
32/0.20
|
0.6
|
0.9
|
19.5
|
20.0
|
|
4X1.5
|
30/0.25
|
0.7
|
1.0
|
13.3
|
13.7
|
|
4X2.5
|
49/0.25
|
0.8
|
1.1
|
7.98
|
8.21
|
|
5X0.75
|
24/0.20
|
0.6
|
0.9
|
26.0
|
26.7
|
|
5X1
|
32/0.20
|
0.6
|
0.9
|
19.5
|
20.0
|
|
5X1.5
|
30/0.25
|
0.7
|
1.1
|
13.3
|
13.7
|
|
5X2.5
|
49/0.25
|
0.8
|
1.2
|
7.98
|
8.21
|
Fire Resistant Control Cable
We are China Multi Core Fire Rated Control Cable NYYHY PVC Jacket Stranded Cable Wire manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Fire Rated Control Cable NYYHY, Fire Resistant Control Cable, MultiCore Fire Rated Control Cable, PVC Jacket Stranded Cable WireSimilar Or Related
