MV 19/33kV CU/XLPE/CTS/PVC XLPE Insulated Power cable with the copper wire screen

 China MV 19/33kV CU/XLPE/CTS/PVC XLPE Insulated Power cable with the copper wire screen supplier

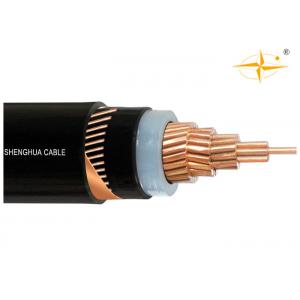

MV 19/33kV CU/XLPE/CTS/PVC XLPE Insulated Power cable with the copper wire screen image

Get a Quote Email to us

Brand Name :SHANCABLE
Model Number :YJV
Certification :ISO,CE,IEC,TUV,KEMA
Place of Origin :Shanghai, China
MOQ :Negotiable
Price :Negotiable
Payment Terms :L/C, T/T
Supply Ability :100KM/Week
Delivery Time :10 Days
Packaging Details :Wooden Drum
Rated Voltage :19/33kV
Insulation Color :Nature color or Customized
Core Mark :Color Strip ( Yelllow, Bule, Red for 3 core)
Core :1 core or 3 Core
Outer Sheath Color :Black or Customized
Cable Mark :Ink printing or Embossing Content Customized
Cable Drum Length :300-450meter per Drum
Metal Screen :Copper tape Screen (CTS) or Copper wire Screen (CWS)

MV 19/33kV CU/XLPE/CTS/PVC XLPE Insulated Power cable with the copper wire screen

Description:

18/30kV XLPE Insulated cables

CU/XLPE/ PVC, IEC 60502

IEC 60502, IEC 60228, GB/T 12706.1-2008.

CE, CCC, KEMA. ISO

Constructions

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228

Conductor Screen: Semi-conductor

Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃

Insulation Screen: Semi-conductor

Screen : Copper tape or Copper wire Screen as per request

Sheath : PVC type ST2 to IEC 60502, black

Note: Insulation color as per standards or customer requirement

Applications

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Standards

International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 18/30kV

Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%

Certificates

CE, RoHS, CCC, KEMA and more others at request

Technical Specifications

Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Sheath Thickness Approx. O.D.

Approx.

Weight

Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
1 × 50 10/2.52 8 2 33.0 1560 0.387 63 210 215
1 × 70 14/2.52 8 2.1 35.0 1840 0.268 63 260 265
1 × 95 19/2.52 8 2.1 36.0 2140 0.193 63 320 315
1 × 120 24/2.52 8 2.2 38.0 2450 0.153 63 370 360
1 × 150 30/2.52 8 2.2 39.0 2790 0.124 63 420 405
1 × 185 37/2.52 8 2.3 41.0 3200 0.0991 63 480 455
1 × 240 48/2.52 8 2.3 43.0 3800 0.0754 63 565 530
1 × 300 61/2.52 8 2.4 45.0 4460 0.0601 63 650 595
1 × 400 61/2.97 8 2.5 49.0 5530 0.0470 63 755 680
1 × 500 61/3.23 8 2.6 53.0 6160 0.0366 63 865 765
1 × 630 61/3.50 8 2.7 56.0 8020 0.0283 63 1000 860
3 × 50 10/2.52 8 2.8 55.0 5290 0.387 63 175 180
3 × 70 14/2.52 8 2.9 59.0 6240 0.268 63 220 220
3 × 95 19/2.52 8 3.0 62.0 7360 0.193 63 255 265
3 × 120 24/2.52 8 3.1 66.0 8350 0.153 63 290 300
3 × 150 30/2.52 8 3.2 69.0 9520 0.124 63 330 340
3 × 185 37/2.52 8 3.4 72.0 10830 0.0991 63 435 380
3 × 240 48/2.52 8 3.5 77.0 12810 0.0754 63 495 435
3 × 300 61/2.52 8 3.7 82.0 14920 0.0601 63 565 485
3 × 400 61/2.97 8 3.9 90.0 18110 0.0470 63 640 520

Ordering Advice

Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement

PACKING AND SHIPPING

We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

Aftersales Service Commitment

Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:

1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service. Our product are warranted by PICC (People's Insurance Company of China). We will provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!

Shanghai Shenghua Cable (Group) Co., Ltd.

We are China MV 19/33kV CU/XLPE/CTS/PVC XLPE Insulated Power cable with the copper wire screen manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
