Mv / Lv Aluminium Conductor Steel Reinforced For Aerial Cable

 China Mv / Lv Aluminium Conductor Steel Reinforced For Aerial Cable supplier

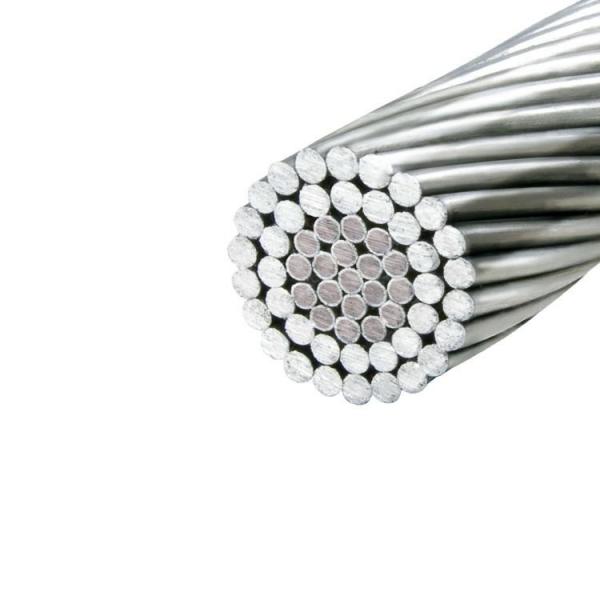

Mv / Lv Aluminium Conductor Steel Reinforced For Aerial Cable image

Get a Quote Email to us

Brand Name :Sanwu
Model Number :ACSR-006
Certification :ISO CCC
Place of Origin :Henan
MOQ :1000M
Price :Negotiable
Payment Terms :L/C, T/T, Western Union, MoneyGram, MoneyGram
Supply Ability :200 tons per day
Delivery Time :1-15days
Packaging Details :New Wooden drum, reel, circle, or according to customers request.
Name :Aluminium Conductor Steel Reinforced
Voltagte :MV / LV
Original place :Henan, China
Life span :30 years
Application :Aerial Cable
Factory :Yes

MV / LV Aluminium Conductor Steel Reinforced For Aerial Cable

Aluminium Conductor Steel Reinforced is Used as bare overhead transmisson cable and primary and secondary distribition cable.ACSR offers optimal strength for line design without sacrificing ampacity.

ACSR Conductor

Code Size (AWG/MCM) Number of Strands(mm) Weight(kg/km) Rated Strength(kg)
Rose 4 7*1.96 58.3 399
Iris 2 7*2.47 92.7 611
Pansy 1 7*2.78 117 740
Poppy 1/0 7*3.12 147.5 897
Aster 2/0 7*3.5 186 1375

ACSR Conductor

ACSR is a composite concentric-lay-stranded conductor. Galvanized steel strand or strands form the central core of the conductor,around which is stranded one or more layers of EC Grade Aluminum wires. The steel core may consist of a single strand or a concentricstranded cable of 7, 19, 37, or more wires. Numerous combinations of aluminum and steel strands and layers are possible. If you haveany suggestions or opinions about our products,please leave a message,and we will immediately answer your questions.

Service Performance:
(1). The permissible long-time operating temperature for aerial conductor is 70℃.
(2). Under the circumstance that rare climate is occurring and ice coverage rate low in heavy ice area, the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.
(3). When connecting conductors, the conductor beside the connecting tube cant be prominent. Otherwise, the force on the operating conductors will be unbalanced. After connectors are install, the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.
(4). Under installation, the arc downing stress of all the conductors should be the same. With in the permissible distance of crossing buildings or dropping to the ground, the stress can be 10-15% higher than regular stress.

We are China Mv / Lv Aluminium Conductor Steel Reinforced For Aerial Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
