N2XRY YJV32 Low Voltage Electrical Cable For Construction

 China N2XRY YJV32 Low Voltage Electrical Cable For Construction supplier

N2XRY YJV32 Low Voltage Electrical Cable For Construction image

Get a Quote Email to us

Brand Name :
Nuoxing

Certification :
CE/CCC/ISO9001

Place of Origin :
China

MOQ :
1000 meters

Price :
USD 1-100

Payment Terms :
T/T, L/C, Western Union

Supply Ability :
1000 km per month

Delivery Time :
10-20 days

Packaging Details :
standard export packing in wooden drums or boxes

Model Number :
YJV32

Product Name :
Low Voltage Electrical Cable

Conductor material :
Copper

Insulation material :
XLPE

Application :
Construction,Underground,Industrial

Type :
Low Voltage

Jacket :
PVC

Standard :
IEC60502

Armor :
steel wire

0.6/1 KV SWA Cable N2XRY YJV32 Low Voltage Electrical Cable

Construction:

Single-core
1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Inner sheath: Polyvinyl chloride PVC
4. Armour: Non-magnetic steel wire
5. Binder tape: Non-hygroscopic material
6. Outer sheath: Polyvinyl chloride PVC

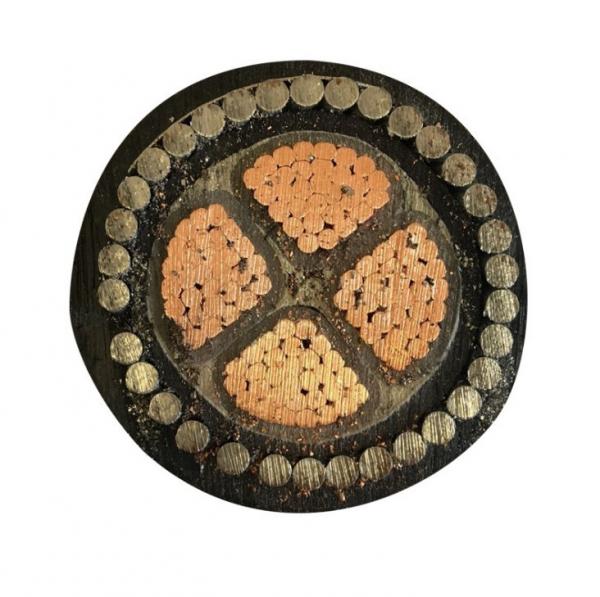

Multi core
1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: crosslinked polyethylene XLPE
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Inner sheath: Polyvinyl chloride PVC
6. Armour: Steel-tape
7. Outer sheath: Polyvinyl chloride PVC

Application:

1. N2XRY cable is suitable for rated voltage 0.6/1kV AC 50Hz power and distribution lines
2. Can be used for fixed industrial power applications, underground, etc.
3. With steel wire armor, it can provide good mechanical protection.

Specificaiton:

Product name Low Voltage Electrical Cable
Certifications CE/CCC/ISO
Standard IEC60502-1
Rated Voltage 0.6/1 KV
Conductor material Copper/Aluminum
Insulation Material XLPE/PVC
Armoured Material None/Steel Tape/Steel wire
Jacket Material PVC
Number of cores 1C,2C,3C,4C,5C,3+1C,3+2C,4+1C
Section area 1.5MM2 – 400MM2

FAQ:

Q1. Are you trading company or manufacturer ?

A: We are professional manufacture with our own independent export rights.

Q2. What if I don’t find the type and size of cable I need on this page?

A: Don't worry. Contact us and send us your requirements, we will help you choose the correct cable you need. It is better if you have the following information: cable voltage, conductor material, insulation and outer sheath material, armor type. Otherwise, you can provide us with cable installation environment, application requirements, etc.

Q3. Can you produce according to the samples ?

A: Yes, we can produce by your samples or technical drawings.

Q4. How long is you delivery time ?

A: Depends on your quantity, normally 1-3 weeks.

We are China N2XRY YJV32 Low Voltage Electrical Cable For Construction manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
