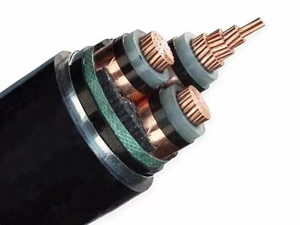

N2XSEBY Cable (6/10kV 8.7/15kV 12/20kV 18/30kV CU/XLPE/STA/PVC Three Core Power Cable)

N2XSEBY Cable( 6/10kV 8.7/15kV 12/20kV 18/30kV CU/XLPE/STA/PVC Power Cable)

Get a Quote Email to us

6/10kV 8.7/15kV 12/20kV 18/30kV N2XSEBY Cable (CU/XLPE/STA/PVC)

Also Known As:

N2XSEBY Medium voltage cable, N2XSEBY Cable, YJV22 Cable, 6/10kV 8.7/15kV 12/20kV 18/30kV CU/XLPE/STA/PVC Power Cable


Medium voltage single core cable is suitable for use in power networks, in fixed installation outdoors in cable ducts or directly in the ground. Cable operational stability is enhanced because of very low dielectric loss factor, excellent insulation property of XLPE and firm bonding with conductor screen and insulation screen of semi-conductive material (extruded in one process), which makes it widely used in transformer stations, electric power plants and industrial plants.

Applicable Standards:

Ge’s Medium voltage N2XSEBY Cable (CU/XLPE/STA/PVC) meets or exceeds the following Standards

IEC 60228 Conductors
IEC 60502-2 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) – Part 2: Cables for rated voltages of 6 kV(Um=7.2kV) and 30 kV(Um=36kV)


    1)Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
    2)Conductor screen: Non-metallic, semi-conducting compound
    3)Insulation: Cross-linked polyethylene XLPE
    4)Insulation screen: Non-metallic, semi-conducting compound
    5)Metallic screen: Copper tape
    6)Filler: Non-hygroscopic material
    7)Binder tape: Non-hygroscopic material
    8)Inner sheath: Polyvinyl chloride PVC
    9)Armour: Steel tape
    10)Outer sheath: Polyvinyl chloride PVC

Medium voltage N2XSEBY Cable (CU/XLPE/STA/PVC) Specification

Get all the answers to the most frequently asked questions (FAQs) regarding N2XSEBY Cable meaning,N2XSEBY Cable pdf,N2XSEBY Cable full form,N2XSEBY Cable current rating,N2XSEBY Cable type,N2XSEBY Cable manufacturer and much, much more.

Medium voltage N2XSEBY Cable (CU/XLPE/STA/PVC) manufactured by GE meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc


Contact our trained experts today to find your perfect power solution.
