NAYRY Cable( 0.6/1 kV AL/PVC/SWA/PVC Power Cable)

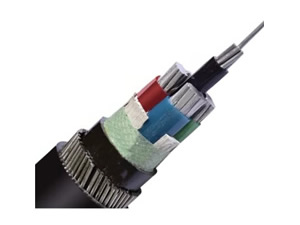

0.6/1 kV NAYRY Cable (AL/PVC/SWA/PVC)

Also Known As:

NAYRY Low voltage cable, NAYRY Cable, VLV22 Cable, 0.6/1 kV AL/PVC/SWA/PVC Power Cable

Applications

NAYY cable is suitable for AC 50Hz power and distribution lines with rated voltage of 0.6/1kV, which can be used in fixed industrial power applications, underground tunnels, etc. Using steel wire armour offers great mechanical protection, making it rigid with a large radius.

Applicable Standards:

Ge’s 0.6/1 kV NAYRY Cable (AL/PVC/SWA/PVC) meets or exceeds the following Standards

IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) – Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)

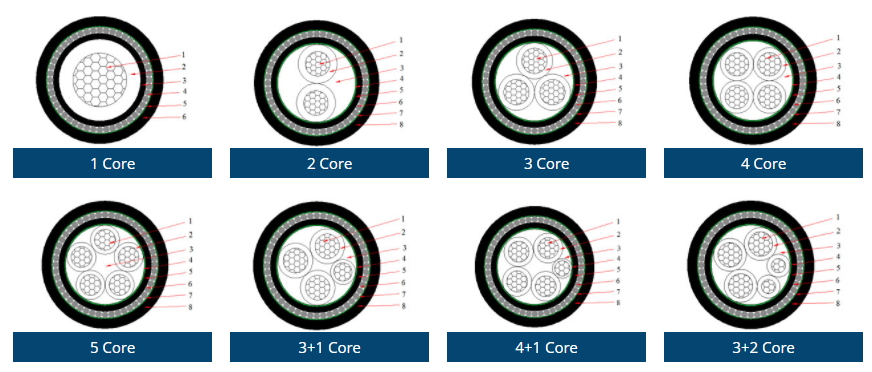

Construction

VV22/VLV22-0.6/1-kV-single-core

1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Polyvinyl chloride PVC
3. Inner sheath: Polyvinyl chloride PVC
4. Armour: non-magnetic steel wire
5. Binder tape: Non-hygroscopic material
6. Outer sheath: Polyvinyl chloride PVC

VV/VLV-0.6/1-kV-multi core

1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Polyvinyl chloride PVC
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Inner sheath: Polyvinyl chloride PVC
6. Armour: Low carbon steel wire
7. Binder tape: Non-hygroscopic material 8. Outer sheath: Polyvinyl chloride PVC

0.6/1 kV NAYRY Cable (AL/PVC/SWA/PVC) Specification

Get all the answers to the most frequently asked questions (FAQs) regarding NAYRY Cable meaning,NAYRY Cable pdf,NAYRY Cable full form,NAYRY Cable current rating,NAYRY Cable type,NAYRY Cable manufacturer and much, much more.

0.6/1 kV NAYRY Cable (AL/PVC/SWA/PVC) manufactured by GE meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc

0.6/1kV-1 Core Aluminum Conductor PVC Insulated Steel Wire Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Non-magnetic steel Wire diameter	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
1X10	1	0.8	1.8	13.8	316	3.08	39	53
1X16	1	0.8	1.8	14.9	375	1.91	50	68
1X25	1.2	0.8	1.8	16.6	454	1.2	66	88
1X35	1.2	1.25	1.8	18.1	625	0.868	81	105
1X50	1.4	1.25	1.8	19.8	737	0.641	98	123
1X70	1.4	1.25	1.8	21.4	863	0.443	126	151
1X95	1.6	1.6	1.8	24.1	1164	0.32	154	182
1X120	1.6	1.6	1.8	25.5	1295	0.253	182	207
1X150	1.8	1.6	1.8	27.5	1494	0.206	210	235
1X185	2	1.6	1.8	29.6	1719	0.164	245	266
1X240	2.2	1.6	1.9	32.4	2042	0.125	290	312
1x300	2.4	2	2	36	2637	0.1	340	354
1x400	2.6	2	2.2	40	3177	0.0778	399	403
1x500	2.8	2	2.3	44.2	3787	0.0605	469	466
1X630	2.8	2.5	2.4	48.9	4839	0.0469	553	532
1X800	2.8	2.5	2.6	53.2	5689	0.0367	644	613

0.6/1kV-2 Core Aluminum Conductor PVC Insulated Steel Wire Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Steel Wire diameter	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
2X2.5	0.8	0.8	1.8	15.2	356	12.1	18	25
2X4	1	0.8	1.8	17.8	552	7.41	24	33
2X6	1	1.25	1.8	18.8	605	4.61	32	43
2X10	1	1.25	1.8	21.3	746	3.08	41	55
2X16	1	1.25	1.8	23.5	895	1.91	53	70
2X25	1.2	1.6	1.8	27.5	1273	1.2	70	91
2X35	1.2	1.6	1.8	28.8	1416	0.868	84	109
2X50	1.4	1.6	1.9	32.5	1713	0.641	105	130
2X70	1.4	2	2	36.7	2311	0.443	133	158
2X95	1.6	2	2.1	41.6	2858	0.32	165	193
2X120	1.6	2	2.3	44.6	3228	0.253	193	221
2X150	1.8	2.5	2.4	49.8	4200	0.206	221	245
2X185	2	2.5	2.6	54.4	4875	0.164	256	277

0.6/1kV-3 Core Aluminum Conductor PVC Insulated Steel Wire Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Steel Wire diameter	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
3X2.5	0.8	0.8	1.8	15.7	386	12.1	15	22
3X4	1	1.25	1.8	18.4	593	7.41	20	28
3X6	1	1.25	1.8	19.6	666	4.61	27	36
3X10	1	1.25	1.8	22.2	833	3.08	35	46
3X16	1	1.6	1.8	25.3	1143	1.91	46	60
3X25	1.2	1.6	1.8	28.9	1435	1.2	61	77
3X35	1.2	1.6	1.8	30.4	1615	0.868	74	91
3X50	1.4	2	1.9	35.2	2205	0.641	91	112
3X70	1.4	2	2.1	39.3	2689	0.443	116	137
3X95	1.6	2	2.2	44.1	3297	0.32	144	165
3X120	1.6	2	2.3	48.4	4185	0.253	168	186
3X150	1.8	2.5	2.5	53.2	4959	0.206	189	210
3X185	2	2.5	2.7	57.8	5714	0.164	221	238
3X240	2.2	2.5	2.9	64.4	6943	0.125	263	277
3X300	2.4	2.5	3.1	70.2	8077	0.1	305	312

0.6/1kV-4 Core Aluminum Conductor PVC Insulated Steel Wire Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Steel Wire diameter	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
4X2.5	0.8	1.25	1.8	17.5	558	12.1	15	22
4X4	1	1.25	1.8	19.5	665	7.41	20	28
4X6	1	1.25	1.8	20.8	750	4.61	27	36
4X10	1	1.6	1.8	24.5	1085	3.08	35	46
4X16	1	1.6	1.8	27.1	1312	1.91	46	60
4X25	1.2	1.6	1.9	31.3	1655	1.2	61	77
4X35	1.2	1.6	2	33	1874	0.868	74	91
4X50	1.4	1.6	2.1	37.8	2370	0.641	91	112
4X70	1.4	2	2.3	42.8	3162	0.443	116	137
4X95	1.6	2.5	2.5	49.3	4340	0.32	144	165
4X120	1.6	2.5	2.6	53.3	5030	0.253	168	186
4X150	1.8	2.5	2.7	58.2	5896	0.206	189	210
4X185	2	2.5	2.9	63.8	6901	0.164	221	238
4X240	2.2	2.5	3.1	70.7	8315	0.125	263	277
4X300	2.4	3.15	3.4	78.6	10695	0.1	305	312

0.6/1kV-5 Core Aluminum Conductor PVC Insulated Steel Wire Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Steel Wire diameter	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
5X2.5	0.8	1.25	1.8	18.4	608	12.1	15	21.7
5X4	1	1.25	1.8	20.7	758	7.41	20	28
5X6	1	1.25	1.8	22.2	856	4.61	27	36.4
5X10	1	1.6	1.8	26.2	1245	3.08	35	46.2
5X16	1	1.6	1.8	29.2	1471	1.91	46	59.5
5X25	1.2	1.6	1.9	33.9	1910	1.2	61	77
5X35	1.2	2	2.1	36.7	2438	0.868	74	91
5X50	1.4	2	2.2	42.1	3043	0.641	91	112
5X70	1.4	2.5	2.4	47.7	4132	0.443	116	137
5X95	1.6	2.5	2.6	54.2	5133	0.32	144	165
5X120	1.6	2.5	2.7	58.2	5885	0.253	168	186
5X150	1.8	2.5	2.9	64.1	6952	0.206	189	210
5X185	2	2.5	3.1	69.9	8114	0.164	221	238
5X240	2.2	3.15	3.4	79.1	10737	0.125	263	277
5X300	2.4	3.15	3.6	86.7	12685	0.1	305	312

0.6/1kV-3+1 Core Aluminum Conductor PVC Insulated Steel Wire Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Steel Wire diameter	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
3X4+1X2.5	1.0/0.8	1.25	1.8	19	640	7.41/12.1	20	28
3X6+1X4	1.0/1.0	1.25	1.8	20.5	730	4.61/7.41	27	36
3X10+1X6	1.0/1.0	1.6	1.8	23.8	1018	3.08/4.61	35	46
3X16+1X10	1.0/1.0	1.6	1.8	26.5	1230	1.91/3.08	46	60
3X25+1X16	1.2/1.0	1.6	1.8	30.3	1565	1.2/1.91	61	77
3X35+1X16	1.2/1.0	1.6	1.9	31.6	1735	0.868/1.91	74	91
3X50+1X25	1.4/1.2	2	2.1	36.9	2414	0.641/1.2	91	112
3X70+1X35	1.4/1.4	2	2.2	40.7	2898	0.443/0.868	116	137
3X95+1X50	1.6/1.4	2	2.4	45.7	3582	0.32/0.641	144	165
3X120+1X70	1.6/1.4	2.5	2.5	51.1	4617	0.253/0.443	168	186
3X150+1X70	1.8/1.4	2.5	2.6	54.8	5243	0.206/0.443	189	210
3X185+1X95	2.0/1.6	2.5	2.8	60	6202	0.164/0.32	221	238
3X240+1X120	2.2/1.6	2.5	3	66.5	7425	0.125/0.253	263	277
3X300+1X150	2.4/1.8	3.15	3.2	77.7	8715	0.1/0.206	305	312

0.6/1kV-4+1 Core Aluminum Conductor PVC Insulated Steel Wire Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Steel Wire diameter	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
4X4+1X2.5	1.0/0.8	1.25	1.8	20.3	707	7.41/12.1	20	28
4X6+1X4	1.0/1.0	1.25	1.8	21.9	815	4.61/7.41	27	36
4X10+1X6	1.0/1.0	1.6	1.8	25.5	1147	3.08/4.61	35	46
4X16+1X10	1.0/1.0	1.6	1.8	28.6	1405	1.91/3.08	46	60
4X25+1X16	1.2/1.0	1.6	1.9	33	1803	1.2/1.91	61	77
4X35+1X16	1.2/1.0	2	2	35.4	2256	0.868/1.91	74	91
4X50+1X25	1.4/1.2	2	2.2	40.7	2854	0.641/1.2	91	112
4X70+1X35	1.4/1.4	2	2.3	44.7	3405	0.443/0.868	116	137
4X95+1X50	1.6/1.4	2.5	2.6	52.1	4800	0.32/0.641	144	165
4X120+1X70	1.6/1.4	2.5	2.7	56.2	5486	0.253/0.443	168	186
4X150+1X70	1.8/1.4	2.5	2.8	60.6	6223	0.206/0.443	189	210
4X185+1X95	2.0/1.6	2.5	3	66.8	7469	0.164/0.32	221	238
4X240+1X120	2.2/1.6	2.5	3.2	73.9	89662	0.125/0.253	263	277
4X300+1X150	2.4/1.8	3.15	3.5	82.5	11606	0.1/0.206	305	312

0.6/1kV-3+2 Core Aluminum Conductor PVC Insulated Steel Wire Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Steel Wire diameter	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
3X4+2X2.5	1.0/0.8	1.25	1.8	19.8	681	7.41/12.1	20	28
3X6+2X4	1.0/1.0	1.25	1.8	21.6	794	4.61/7.41	27	36
3X10+2X6	1.0/1.0	1.6	1.8	24.8	1103	3.08/4.61	35	46
3X16+2X10	1.0/1.0	1.6	1.8	28	1357	1.91/3.08	46	60
3X25+2X16	1.2/1.0	1.6	1.8	31.9	1709	1.2/1.91	61	77
3X35+2X16	1.2/1.0	1.6	1.9	33.1	1859	0.868/1.91	74	91
3X50+2X25	1.4/1.2	2	2.1	39.5	2752	0.641/1.2	91	112
3X70+2X35	1.4/1.4	2	2.3	42.8	3156	0.443/0.868	116	137
3X95+2X50	1.6/1.4	2.5	2.5	49.5	4381	0.32/0.641	144	165
3X120+2X70	1.6/1.4	2.5	2.6	54.2	5138	0.253/0.443	168	186
3X150+2X70	1.8/1.4	2.5	2.7	57.5	5711	0.206/0.443	189	210
3X185+2X95	2.0/1.6	2.5	2.9	63.8	6872	0.164/0.32	221	238
3X240+2X120	2.2/1.6	2.5	3.1	70.1	8158	0.125/0.253	263	277
3X300+2X150	2.4/1.8	3.15	3.4	78	10462	0.1/0.206	305	312
