NFC 33-209 3*70+54.6+25 Aerial Bundled Cable XLPE/PV C/PE Insulated

 China NFC 33-209 3*70+54.6+25 Aerial Bundled Cable XLPE/PV C/PE Insulated supplier

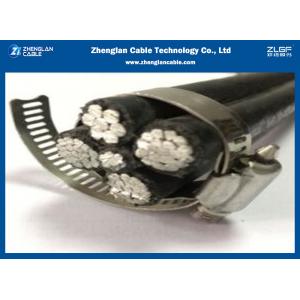

NFC 33-209 3*70+54.6+25 Aerial Bundled Cable XLPE/PV C/PE Insulated image

Get a Quote Email to us

Brand Name :
Zhenglan Cable

Model Number :
NFC ABC Cable

Certification :
3C,ISO 9001:2015,ISO 14001:2005

Place of Origin :
Henan, China

MOQ :
Negotiable

Price :
0.3-60USD/meter

Payment Terms :
T/T, L/C, Western Union

Supply Ability :
50000meters/day

Delivery Time :
15-18 days

Packaging Details :
Wooden drum, wooden-steel drum, coil or plastic drum or customized

Insulation Material :
XLPE

Conductor Material :
Aluminum

Application :
Overhead

Quality :
100% test

Standard :
IS:14255-1995

structure :
AL/XLPE

Rated voltage :
0.6/1kV,10kV,11kV,30kV,35kV

Number of cores :
Single core,duplex,triplex,quadruplex service drop

Aerial Bundled Cable NFC 33-209 3*70+54.6+25 XLPE/PV C/PE Insulated Overhead Electric Service Drop Cable

Application:

Overhead line is a line which is erected by tower to transmit electric energy at a certain height. For the high-voltage transmission and distribution network, the ground insulation of the overhead line is generally based on air, and the distribution line (except 380V under 10kV) generally uses bare conductor. However, due to the complex urban distribution environment, short-circuit grounding and lightning strike often occur, resulting in the decrease of power supply reliability. So far, the overhead line under 10kV generally uses insulated conductor (that is, the outer layer of conductor is wrapped with insulation layer), which is the so-called insulated overhead cable.

Conductor:

1. Aluminum Wire, 1350-H19 for Electrical Purposes.

2. Aluminum Conductors, Concentric-Lay-Stranded.

3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).

4. Concentric-Lay-Stranded 6201-T81 Conductors.

5. Compressed Round Stranded Aluminum Conductors Using Single Input Wire.

Insulation: PVC, XLPE, PE

Phase Cable identificaation: number 111, 222, 333

Standards:

GB/T 12527-2008, IEC60502,
Rated voltage: 0.6/1kV
Relative manufacturing standards: IEC61089, ASTM B231, ASTM B232, BS215, DIN48201, DIN48204.
We can also manufacture ABC cable according to customer's special requirements.

Materials

Insulated cable assembled LV network to beam
The cable will meet the French standard NF C 33-209. The souls of the phase conductors and public ligHVing will consist of hardened aluminum son pure hard 3/4 99.5 M, Type 1370 (A5 / L) to the standard NF C 3 1-122, while core of the neutral conductor is formed of son alloy magnesium aluminum silicon, heat-treated, containing approximately 0.5% magnesium and 0.5% silicon.
Each driver of the beam will be insulated with cross-linked polyethylene extruded jacket black meets the dimensional and mechanical characteristics specified in the NFC 33-209 standards.

Aerial Bundled Cable NFC 33-209 3*70+54.6+25mm2 parameters:

NO. DESCRIPTION UNIT DATA
1 Standards   IEC60502-1,NFC 33 209
  Size mm2 3×70+1×54.6+1×25
2 Rated voltage (Uo/U) KV 0.6/1
3 Phase Core Construction
3.1 Conductor
  Number & Cross-section Area mm2 3×70
  Material Compacted Aluminum Wire
  Stranding wire number of conductor Nos Min.12
  Approx. Diameter of conductor mm 9.3-10.2
3.2 Insulation
  Material Black XLPE
  Nominal Thickness mm 1.8
  Approx. Diameter of phase insulated core mm 13.48
4 Neutral Core Construction(insulated)
4.1 Conductor
  Number & Cross-section Area mm2 1×54.6
  Material Stranded Aluminum Alloy Wire
  Stranding wire number of conductor Nos 7
  Approx. Diameter of conductor mm 9.45
4.2 Insulation
  Material Black XLPE
  Nominal Thickness mm 1.6
  Approx. Diameter of neutral insulated core mm 12.65
5 Street Lighting Core Construction
5.1 Conductor
  Number & Cross-section Area mm2 1×25
  Material Compacted Aluminum Wire
  Stranding wire number of conductor Nos 7
  Approx. Diameter of conductor mm 5.6-6.5
5.2 Insulation
  Material Black XLPE
  Nominal Thickness mm 1.4
  Approx. Diameter of lighting insulated core mm 8.8
6 Approx. Dia. Of complete cable mm 33.7
7 Approx. weight of complete cable per km Kg 1050
8 Max. Conductor DC resistance at 20 °C
  Phase conductor Ω/km 0.443
  Street lighting conductor Ω/km 1.2
9 Tensile strengh of neutral conductor KN 16.6

Products show:

Aerial bundle cable NFC 33-209 packages:

About Us:

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

Why Choose Zhenglan Cable:

  • OEM/ODM services provided
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
  • Advanced test equipment and procedures, 100% inspection before factory
  • Enough stocks and the higest efficient shipping time guarranteed
  • Professional pre-sales and after-sales services provided
  • Strict quality control system, excellent quality with reasonable price.

We are China NFC 33-209 3*70+54.6+25 Aerial Bundled Cable XLPE/PV C/PE Insulated manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
