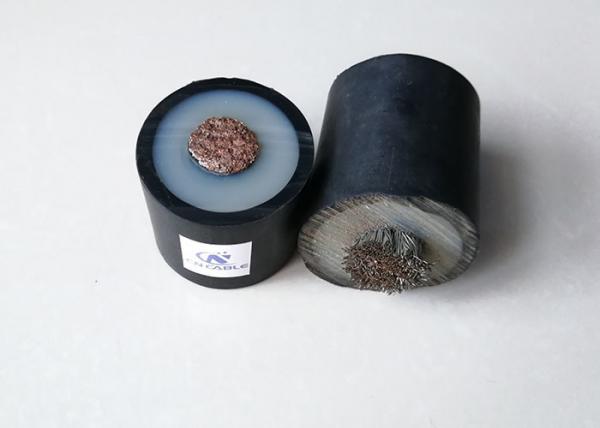

JBQ 70mm Motor Leads Cable Tinned Copper Core Rubber Insulated Nitrile Sheathed Cable For Mining
Application
JBQ type rubber insulated sheath lead cable wire (JB1171-76) is used for class B insulated motors with rated AC voltage of 1140v and below. The electrical windings are connected and lead out of the casing or the windings are connected to the terminals on the motor casing.
| Model | Product Name |
| JB(JBF) | Copper core nitrile polyvinyl chloride compound insulated motor winding lead cable |
| JXN(JBQ) | Copper core rubber insulated butyronitrile sheathed motor winding lead cable |
| JXF(JBHF) | Copper core rubber insulated neoprene sheathed motor winding lead cable |
Rated voltage: 500V, 750V, 1000V, 1140V
Temperature range
Mobile working condition: -25℃~ 80℃, fixed working condition: -40℃~ 80℃
Smaller bending radius
Mobile working conditions: 10x cable outer diameter, fixed working conditions: 6x cable outer diameter
Standard
JB6213 92 Q/12YJ 4135-2000
Features
Soft nitrile double-layer insulation
Oxygen-free copper wire or tinned conductor
Soft, wear-resistant, cold-resistant, oil-resistant, flame-retardant
Keep soft at low temperature -40℃
Strong weather resistance and environmental resistance.
Technical parameter
JBQ 500V
| Nominal Cross-sectional Area(MM²) |
Insulation thickness(MM) | Sheath thickness(MM) | Max. Outer Diameter(MM) | Approx. weight KG/KM |
20℃ Phase Core Insulation Resistance(Ω/KM) |
| 0.5 | 0.6 | 0.8 | 4.3 | 20 | 38.5 |
| 0.75 | 0.6 | 0.8 | 4.5 | 24 | 25.7 |
| 1.0 | 0.6 | 0.8 | 4.7 | 28 | 18.9 |
| 1.5 | 0.6 | 0.8 | 5.0 | 35 | 12.6 |
| 2.5 | 0.8 | 1.0 | 6.2 | 57 | 7.59 |
| 4 | 0.8 | 1.0 | 6.8 | 76 | 4.54 |
| 6 | 0.8 | 1.0 | 7.5 | 100 | 3.00 |
| 10 | 1.0 | 1.2 | 10.0 | 178 | 1.78 |
| 16 | 1.0 | 1.2 | 11.2 | 243 | 1.18 |
| 25 | 1.0 | 1.4 | 13.7 | 372 | 0.716 |
| 35 | 1.0 | 1.4 | 14.9 | 471 | 0.528 |
| 50 | 1.2 | 1.6 | 17.1 | 647 | 0.384 |
| 70 | 1.2 | 1.6 | 19.6 | 876 | 0.270 |
| 95 | 1.4 | 1.6 | 21.9 | 1160 | 0.197 |
| 120 | 1.6 | 1.8 | 24.6 | 1451 | 0.158 |
| 150 | 1.8 | 2.2 | 29 | 1911.5 | 0.132 |
| 185 | 1.8 | 2.2 | 32 | 2268.65 | 0.108 |
| 240 | 2.2 | 3 | 35 | 3010 | 0.0817 |
| 300 | 2.4 | 3.5 | 38 | 3770 | 0.0654 |
JBQ 1140V
| Nominal Cross-sectional Area(MM²) |
Insulation thickness(MM) | Sheath thickness(MM) | Max. Outer Diameter(MM) | Approx. weight KG/KM |
20℃ Phase Core Insulation Resistance(Ω/KM) |
| 0.5 | 0.6 | 0.8 | 4.3 | 20 | 38.5 |
| 0.75 | 0.6 | 0.8 | 4.5 | 24 | 25.7 |
| 1.0 | 0.6 | 0.8 | 4.7 | 28 | 18.9 |
| 1.5 | 0.6 | 0.8 | 5.0 | 35 | 12.6 |
| 2.5 | 0.8 | 1.0 | 6.2 | 57 | 7.59 |
| 4 | 0.8 | 1.0 | 6.8 | 76 | 4.54 |
| 6 | 0.8 | 1.0 | 7.5 | 100 | 3.00 |
| 10 | 1.0 | 1.2 | 10.0 | 178 | 1.78 |
| 16 | 1.0 | 1.2 | 11.2 | 243 | 1.18 |
| 25 | 1.0 | 1.4 | 13.7 | 372 | 0.716 |
| 35 | 1.0 | 1.4 | 14.9 | 471 | 0.528 |
| 50 | 1.2 | 1.6 | 17.1 | 647 | 0.384 |
| 70 | 1.2 | 1.6 | 19.6 | 876 | 0.270 |
| 95 | 1.4 | 1.6 | 21.9 | 1160 | 0.197 |
| 120 | 1.6 | 1.8 | 24.6 | 1451 | 0.158 |
| 150 | 1.8 | 2.2 | 29 | 1911.5 | 0.132 |
| 185 | 1.8 | 2.2 | 32 | 2268.65 | 0.108 |
| 240 | 2.2 | 3 | 35 | 3010 | 0.0817 |
| 300 | 2.4 | 3.5 | 38 | 3770 | 0.0654 |
| Rubber Mining VFD Cables | Rubber Mining Cable | Cables For Cranes |
Packing Material: Coil (For small size & short length) , Wooden Drum , Iron-Wooden Drum , Steel Drum
Shipping: Loading port from Qingdao or Shanghai , 12-24 hours from facotry to sea port
We are China Nitrile Sheath EPR Rubber 70mm Tinned Copper Wire For Mining manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
