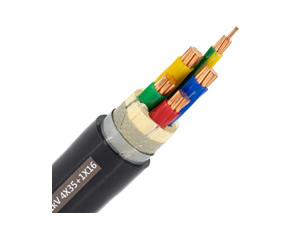

NYBY Cable (0.6/1kV CU/PVC/STA/PVC Power Cable)

NYBY Cable (0.6/1kV CU/PVC/STA/PVC Power Cable)

Get a Quote Email to us

0.6/1 kV NYBY Cable (CU/PVC/STA/PVC)

Also Known As:

NYBY Low voltage cable, NYBY Cable, VV22/VLV22 Cable, 0.6/1 kV CU/PVC/STA/PVC Power Cable

Applications

NYBY cable is suitable for AC 50Hz power and distribution lines with rated voltage of 0.6/1kV, which can be used in fixed industrial power applications, underground tunnels, etc. Using steel wire armour offers great mechanical protection, making it rigid with a large radius.

Applicable Standards:

Ge’s 0.6/1 kV NYBY Cable (CU/PVC/STA/PVC) meets or exceeds the following Standards

IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) – Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)

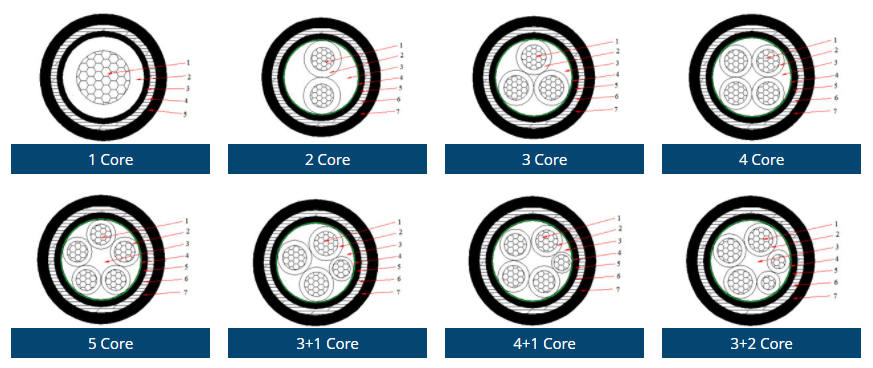

Construction

  • VV/VLV-0.6/1-kV-single-core
  • 1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
    2. Insulation: Polyvinyl chloride PVC
    3. Inter sheath: Polyvinyl chloride PVC
    4. Armour: Steel-tape
    5. Sheath: Polyvinyl chloride PVC

  • VV/VLV-0.6/1-kV-multi core
  • 1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
    2. Insulation: Polyvinyl chloride PVC
    3. Filler: Non-hygroscopic material
    4. Wrap around: Non-hygroscopic material
    5. Inner sheath: Polyvinyl chloride PVC
    6. Armour: Steel-tape
    7. Outer sheath: Polyvinyl chloride PVC

0.6/1 kV NYBY Cable (CU/PVC/STA/PVC) Specification

Get all the answers to the most frequently asked questions (FAQs) regarding NYBY Cable meaning,NYBY Cable pdf,NYBY Cable full form,NYBY Cable current rating,NYBY Cable type,NYBY Cable manufacturer and much, much more.

0.6/1 kV NYBY Cable (CU/PVC/STA/PVC) manufactured by GE meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc
