OFC Conductor PVC Insulated Cable Ground Connection With Soft Line RVS Eletrical Cable

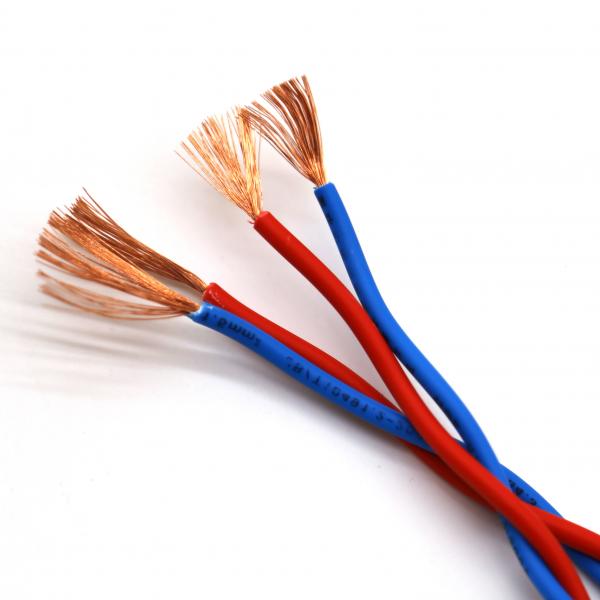

OFC Conductor PVC Insulated Cable Ground Connection With Soft Line RVS Eletrical Cable image

Get a Quote Email to us

Brand Name :
JHY CABLE

Model Number :
RVS cable-07

Certification :
RoHS/CE/CCC/CB

Place of Origin :
SHENZHEN CHINA

MOQ :
10 boxs

Price :
Negotiable

Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability :
100000m/day

Delivery Time :
3-8 day

Packaging Details :
100m/roll

Product name :
RVS Cable

Conductor :
Oxygen free copper

Insulation :
PVC

Application :
Building

Resistance :
13.3 ohm/km

MOQ :
2000M

OFC Conductor PVC Insulated Ground Connection with Soft Line RVS Eletrical Cable

1. Production Application

The cable is used for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protective installation.These cables are used for installation in signaling and alarm system or security system Infrared as well as micro wave or mixed technology systems to switchboard.rating voltage:300V.allows cable conductor long-term maximum operating temperature is 70C

2. Company Certificates

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, UL,China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

3. Construction

RVS Flexible Cable
Category:	RVS wire, RVB wire
Specification:	2 Cores
Conductor	20.1242mm,20.12mm81,20.1414mm,20.1454mm
Material	Copper
Jacket:	New PVC
Color:	Green and Red,Transparent Golden and Blue
Meters:	1mtrs-100mtrs,100-200m,200-305m
Application:	Telecommunication, Computer networks, Instrumentation

4. CHARACTERISTICS

1. The permissble long-term working temperature of the cable conductor: PVC insulated is 70 °C. During the cable laying, the ambient temperature must be above 0 °C.

2. The permissible bending radius in cable laying and installing.

a). For unarmoured cable, it shall not be less than 6 times of external diameter of cable.

b). For armoured or copper tape screened cable, it shall not be less than 12 times of the external diameter of cable.

c). For the flexible cable with screen layers, it shall not be less than 6 times of the external diameter of cable.

5. Type & Special

No×Area of conductor mm²	Upper limit of average outer diameter mm	Max conductor resistance at 20℃ Ω/km	Min insulation resistance at 70℃ Ω/km	Recommended value of current carrying capacity A	Reference weight kg / km
2*0.5	6.0	39.0	0.016	9	22
2*0.75	6.2	26.0	0.014	12	29
2*1	6.6	19.5	0.013	14	34
2*1.5	7.2	13.3	0.012	18	46
2*2.5	8.2	7.98	0.0095	25	66
2*4	9.5	4.95	0.0079	33	96
2*6	11.6	3.30	0.0081	42	145

Lead time:

Quantity(box)	10	100
EST.time(day)	3-5	5-15

Product Describe:

Company Contact Information:

OUR SERVICE

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

Company established time: Since 1993
26 years of cable manufacturing and sales experience
Annual sales of about 600 million US dollar
150,000 m2 Production area
Over 1000 Will-trained employees
4 industrial parks
Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106

We are China OFC Conductor PVC Insulated Cable Ground Connection With Soft Line RVS Eletrical Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
