Ortlan ACSR 1033.5MCM Overhead Bare Conductor With ASTM B232 Standard

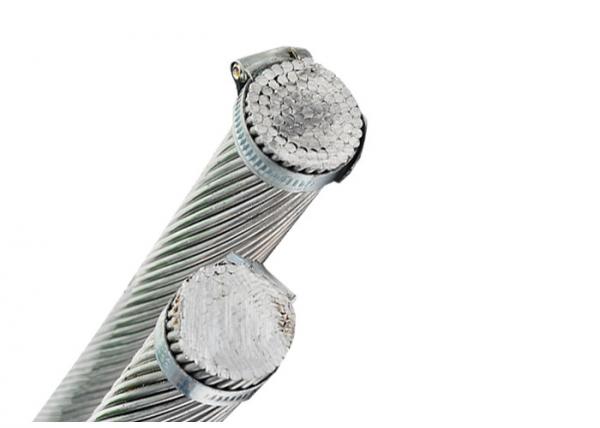

Ortlan ACSR 1033.5MCM Overhead Bare Conductor With ASTM B232 Standard image
Brand Name :
SHAN CABLE
Model Number :
ACSR 1033.5MCM
Certification :
KEMA/CE/TUV/ISO
Place of Origin :
SHANGHAI CHINA
MOQ :
500m
Price :
USD 0.06-8.52/M
Payment Terms :
L/C, T/T
Supply Ability :
962758KM/Day
Delivery Time :
7 Days
Packaging Details :
Wooden Drum
No.of Al Wire :
45/3.85mm
No.of Steel Wire :
7/2.57mm
Tensile Strength :
124KN
D.C.Resistance :
0.049 Ω/km
Lay Direction :
Rightward
Weight :
1732KG/KM
Ortlan ACSR 1033.5MCM Overhead Bare Conductor With ASTM B232 Standard China Shanghai Manufacturer.
1. Applications
ACSR conductors have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.
| Shanghai Shenghua Cable (Group)Co.,Ltd. | |||||
| Test Report | |||||
| Specification : | ACSR1033.5MCM Ortlan | Item: | Aluminum Conductor Steel Reinforced |
||
| Standard: | ASTM B 232 | Date: | 2017.1.5 | ||
| No. | Item | Standards and Requirements | Test Results | Evaluation | |
| 1 | Dimension of conductor | ||||
| 1-1 | Overall Diameter mm | 30.81±1% | 30.82 | Qualified | |
| 1-2 | Number of AL. wire | 45 | 45 | Qualified | |
| 1-3 | Number of steel wire | 7 | 7 | Qualified | |
| 1-4 | Diameter of Al.wire (mm) | 3.85±1% | 3.850 3.852 3.858 | Qualified | |
| 1-5 | Diameter of steel wire (mm) | 2.57±0.051 | 2.572 2.580 2.604 | Qualified | |
| 1-6 | Stranding direction | Rightward | Rightward | Qualified | |
| 1-7 | Appearance | The surface of the stranded wire is smooth, glossy and tightly stranded | Meet the requirement | Qualified | |
| 2 | Lay ratio | ||||
| 2-1 | Lay ratio of steel wire | 18-30 | 18.1 | Qualified | |
| 2-2 | Lay ratio of 12 wire layer | 10-17 | 15.8 | Qualified | |
| 2-3 | Lay ratio of 18 wire layer | 10-16 | 13.6 | Qualified | |
| 2-4 | Lay ratio of 24 wire layer | 10-13 | 11.3 | Qualified | |
| 3 | Performance of steel wire | ||||
| 3-1 | Tensile strength MPa | ≥1340 | 1410 | Qualified | |
| 3-2 | Elongation(250mm) % | ≥3.5 | 3.6 | Qualified | |
| 3-3 | Stress at 1% extension MPa | ≥1280 | 1302 | Qualified | |
| 3-4 | Mass of Zinc coating g/m2 | ≥229 | 254 | Qualified | |
| 3-5 | Zinc coating adherence | No crack | Meet the requirement | Qualified | |
| 3-6 | Wrapping test | The wire shall be wrapped around 1 time the diameter of the wire, from a close helix of eight turns, wire shall not crack |
Meet the requirement | Qualified | |
| 4 | Performance of aluminum wire | ||||
| 4-1 | Tensile strength MPa (after) | ≥160 | 163 | Qualified | |
| 4-2 | Wrapping test | The wire shall be wrapped around 1 time the diameter of the wire, from a close helix of eight turns, withdraw six turns, wire shall not crack | Meet the requirement | Qualified | |
| 4-3 | D.C. resistivity at 20℃ Ω.mm2/m | ≤0.028264 | 0.027812 0.027902 0.027721 0.027825 |
Qualified | |
| 5 | Performance of conductor | ||||
| 5-1 | Tensile strength kN | ≥123.1 | 124 | Qualified | |
| 5-2 | D.C. resistance at 20℃ Ω/km | ≤0.05531 | 0.049 | Qualified | |
| 5-3 | Weight kg/km | 1732 | 1732.1 | Qualified | |
| 5-4 | Lay direction | Rightward | Rightward | Qualified | |
| Conclusion: The performances tested meet the technical requirements of ASTM B 232, IEC 60888, IEC 60889. Permission to deliver the products. | |||||
| Tested by: | Checked by: | Approved by: | |||
We are China Ortlan ACSR 1033.5MCM Overhead Bare Conductor With ASTM B232 Standard manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
