Outdoor High Voltage Expulsion Dropout Fuse Cutout 100A

 China Outdoor High Voltage Expulsion Dropout Fuse Cutout 100A supplier

Outdoor High Voltage Expulsion Dropout Fuse Cutout 100A image

Get a Quote Email to us

Brand Name :
Suntech

Model Number :
SCO24

Certification :
ISO

Place of Origin :
China

MOQ :
1 Set

Price :
Get the newest price

Payment Terms :
L/C, T/T, Western Union

Supply Ability :
10000PCS Per Month

Delivery Time :
7 days after deposit

Packaging Details :
Box with Pattets For Shipping

Usage :
High Voltage

Safety Standards :
IEC60282-2

Breaking Capacity :
High

Name :
Polymer Expulsion Drop Out Fuse

Application :
Construction Site

Material :
Drop fuse cutout

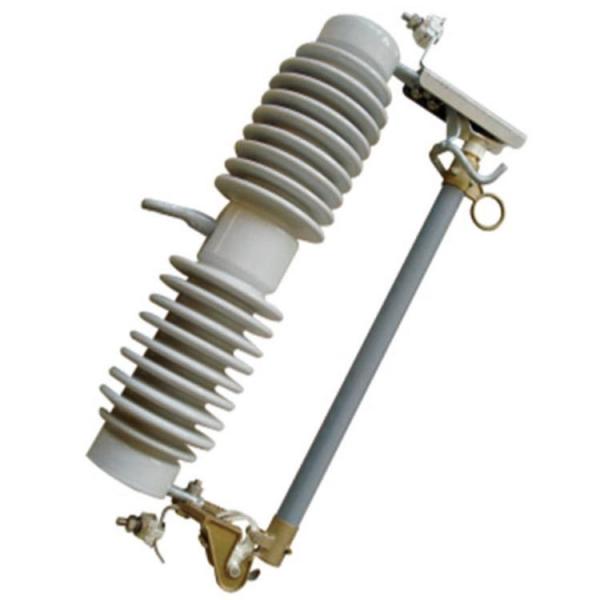

Drop-out Outdoor High Voltage Expulsion Dropout Fuse Cutout 100A Cut Out

Overview:

Drop out fuses and load-drop fuses are outdoor high voltage protection appliances. It is installed on the high voltage side of the distribution transformer or on the branch line of the distribution line. used as a short circuit of the transformer and the line, overload protection and split load current.

The drop fuse is composed of two parts:

An insulating bracket and a fuse tube. The static contact is installed at two ends of the insulating bracket, the movable contact is installed at both ends of the fuse tube, and the fuse tube is composed of an inner arc extinguishing tube and an outer layer.

It consists of a phenolic paper tube or an epoxy glass tube. The load drop fuse enhances the elastic auxiliary contact and the arc extinguishing cover to divide and combine the load current.

Product use environment:

1. The ambient temperature is not higher than +40 C, not lower than-40 C

2. The altitude does not exceed 3000m

3. The maximum wind speed does not exceed 35m/s

4. The earthquake intensity does not exceed 8 degrees

Type Unit STCO-24/100 STCO-24/200
Rated Voltage KV 24 54
Rated Current A 100 200
Breaking Current KA 8 10
Impulse Voltage (BIL) KV 150 150
Power Frequency withstand Voltage KV 65 65
Creepage Distance MM 480 480
Weight KGS 11.5 12
Dimension CM 51.5x35x17.5 51.5x35x17.5

We are China Outdoor High Voltage Expulsion Dropout Fuse Cutout 100A manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
