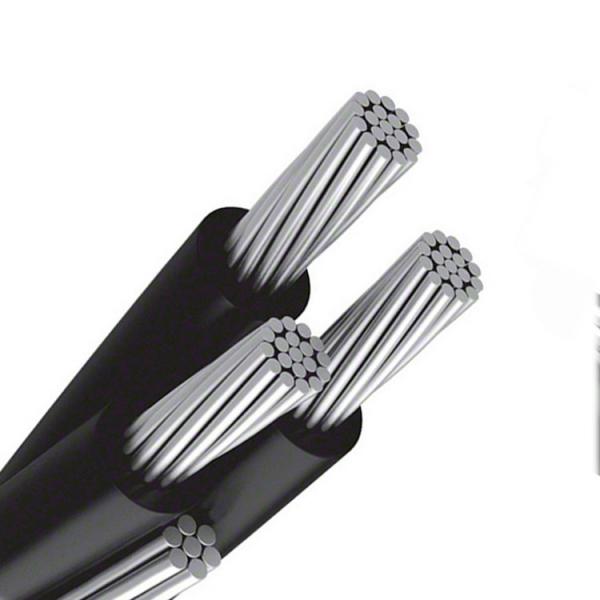

Overhead Aerial Bundled Cable Overhead Line Electrical Distribution ABC Cable

aerial Bundled Cables Overhead distribution line ABC cable 1*16+16 ABC electric cable

Application of Overhead ABC Cable :

a. Duplex Service Drop

To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75°C maximum

b. Triplex Service Drop

To supply power from the utility's lines to the consumer's weatherhead. For service at 600 volt or less (phase to phase) at a conductor temperature of 75°C maximum for polyethylene insulation 90°C maximum for crosslinked insulation

c. Quadruplex Service Drop

Used to supply 3 phase power, usually from a polemounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulation 90°C maximum for crosslinkedpolyethylene(XLPE) insulated conductors.

The basic construction is as follows:

3 power cores consisting of standard aluminum conductors, insulated with

Product Description
XLPE insulation
+ One sheath lighting aluminum conductor with XLPE insulation (optional)
+ One messenger Al-alloy conductor (bare or covered)
The messenger conductor can be of galvanised steel wire also.
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.
To be used at voltages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75 for polyethylene insulated conductors or 90 for cross liked polyethylene (XLPE) insulated conductors.
