Overhead Bare Aluminum Conductor ACSR Cable Steel Reinforced 70mm2

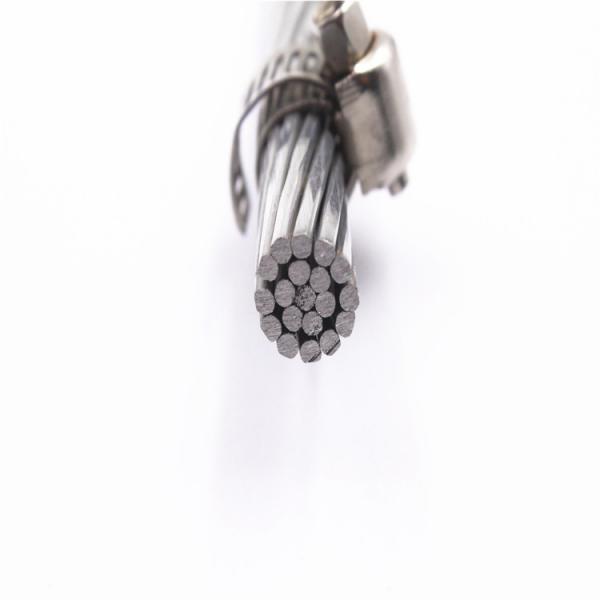

Overhead Bare Aluminum Conductor ACSR Cable Steel Reinforced 70mm2 image
Brand Name :
Suntech Power
Model Number :
ASTM Horse
Certification :
ISO9001,CCC
Place of Origin :
Ningbo,China
MOQ :
3000m
Price :
Get the newest price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000Ton/Month
Delivery Time :
10-15 workdays
Packaging Details :
Iro-wooden Drum
Name :
Low Voltage Electric Power Cable
Application :
overhead transmission and distribution
Insulation Material :
none
Type :
LV MV HV Cable
Standard :
BS IEC ASTM DIN
Overhead aluminum conductor steel reinforced horse 70mm2 acsr cable
1.Product Description
In comparison with copper, ACSR conductors have considerable technical and economical advantages in the installation of overhead lines. Its characteristics, and low weight, combined with its high breaking strength, are gathered which makes it possible to have large span runs, without having to revert to excessive mechanical stresses or to heavy metallic Towers. Due to the greater diameter of the conductors, electric losses by the corona Effect are greatly reduced. By making use of these properties economical electric energy transmission is attained at very high voltages and distances.
1. high tensile strength, allowing larger spans runs.
2. better sag properties, allowing longer span lengths.
3. economic design.
4. best suited for transmission lines with long spans.
2.Application
Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR Conductor offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity. ACSR Conductor are used extensively for overhead ground wires, river crossings etc. These ACSR Conductors are available with us in various types for meeting the exact requirements of the clients.
3.Standard
IEC61089, BS215, ASTMB232, CSA C49, DIN48204, JIS C3110, and customers’ special Specifications
| Production Name | Overhead aluminum conductor steel reinforced horse 70mm2 acsr cable |
| Code Name | Horse |
| Nominal Aera (mm2 ) | 70 |
| Stranding&Wire Diameter (No.mm) | 7 |
| Aluminum (No.mm) | 12/2.79 |
| Steel (No.mm) | 7/2.79 |
| Approximate Overrall Diameter (mm) | 13.95 |
| Sectional Aera (mm2) | |
| Aluminium (mm2 ) | 73.4 |
| Steel (mm2) | 42.8 |
| Total (mm2) | 116.2 |
| Approximate weight (Kg/km) | 538.1 |
| Breaking Load (kN) | 61.2 |
| DC Resistance zt 20℃ (Ω/km) | 0.3936 |
| Currant rating (A) | 268 |
PACKAGING&SHIPPING
Different package for customer choose !
Our electrical cable export packing is specially made to ensure that the quality of the products will be not affected during the transportation. Our electrical cable is using electrical cable wheel for the packing, the wheel can be all steel, steel frame and fumigated wood, or fumigated wooden cases. We are using different packing for different length of the cable, to ensure there will be no problem during the delivery of the products.
1. If the diameter of the wheel is longer than 2 meters, we are using all steel wheel to pack the products
2. If the diameter of the wheel is between 1.4meters to 1.8meters, we are using steel frame and fumigated wood to pack the products.
3. If the diameter of the wheel is less than 1.4meters, we will use the fumigated wooden wheel to pack the products
4. For the packing of the electrical wires and small quantity of cables, we will use the fumigated wooden box to pack.
We are China Overhead Bare Aluminum Conductor ACSR Cable Steel Reinforced 70mm2 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
