Overhead Bare Aluminum Conductors AAC / AAAC / ACSR / ACSS Conductor

 China Overhead Bare Aluminum Conductors AAC / AAAC / ACSR / ACSS Conductor supplier

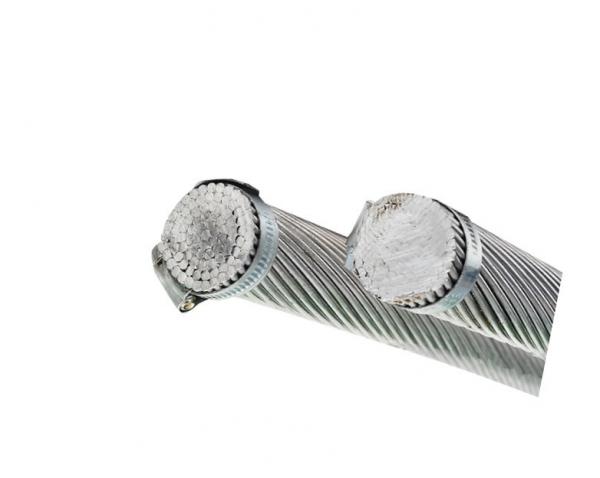

Overhead Bare Aluminum Conductors AAC / AAAC / ACSR / ACSS Conductor image

Get a Quote Email to us

Brand Name :
SHANCABLE

Model Number :
AAC/AAAC/ACSR/ACSS

Certification :
PICC,ISO9001,ISO14001

Place of Origin :
Shanghai, China

MOQ :
2000M

Price :
USD0.1-59/M

Supply Ability :
300 Kilometers per Month

Delivery Time :
30 Days

Packaging Details :
Wooden-Steel Drum

Model name :
Bare Aluminum Conductor/Aluminum conductor steel wire reinforced

Size :
4-1000 mm2

Materil :
Aluminum

Productor name :
AAC/AAAC/ACSR/ACSS

Insulation :
NO

Warranty :
2 years

Packing Style :
Steel Wooden Drum/ Wooden Drum

Drum Length :
As per request

Overhead Bare Aluminum Conductors AAC / AAAC / ACSR / ACSS Conductor

Application

The bare conductor: ACSS, AAC, AAAC, ACSR, AACSR, ACAR and Galvanized steel wire, are used in overhead electrical power transmission and distribution lines with various grade voltage.

Construction: Bare aluminum alloy 1350-H19 wires, concentrically stranded around a Class A galvanized coated steel core wire. ACSR consists of a galvanized steel core of 1 wire, 7 wires, 19 wires etc. surrounded by concentric layers of aluminum wire.

Standards

Our Bare conductor can meet or exceedthe item of cable international standards, such as:IEC 61089, BS 215 part1(AAC), BS 215 part2, BS 324201 (AAAC), DIN 48201 part 5 (AAC), DIN 48204, ASTM B231(AAC), ASTM B232(ACSR), BS EN 50182, BS EN 50183(AAAC), GB/T 1179-2008. Also we accept the OEM and the new design cable as customers.

Specification

1.Aluminum conductor

2.Concentric-Lay-Stranded

3.Coated Steel Reinforced

4.ASTM,BS,CSA,DIN,IEC etc. Standards

Following the American Standards ( ASTM )

B-230 Aluminum Wire, 1350-H19 for Electrical Purposes

B-231 Aluminum Conductors, Concentric-Lay-Stranded

B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)

B-341 Aluminum-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)

B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)

B-500 Zinc Coated and Aluminum Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced (ACSR)

Type Description No. of Wire

Section Area

(mm2)

AAC All Aluminum Conductor 7~127 16~1500
AAAC All Aluminum Alloy Conductor 7~91 17~1300
ACSR

Aluminum Conductors

Steel Reinforced

7~103 16~1250
AACSR

Aluminum Alloy Conductors

Steel Reinforced

7~103 16~1250
ACAR/AW

Aluminum Conductors

Aluminum Alloy Reinforced

7~103 16~1250
ACSW/S

Aluminum Conductors

Aluminum Clad Steel Wire/Strand

7~103 16~1250
GSW Galvanized Steel Wire 3/2.64~37/4.55 16.41~765.99

Packing and shipping

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

After-service commitment

Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
Shanghai Shenghua Cable (Group) Co., Ltd.

FAQ
Q: How long does it take to get a quote back?
A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.

Q: What warranties do your products carry?
A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :
1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire
2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.

Q: Do you sell other products besides wire and cable?
A: Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world.

We are China Overhead Bare Aluminum Conductors AAC / AAAC / ACSR / ACSS Conductor manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
