overhead conductor aluminum conductor steel reinforced acsr moose conductor
overhead conductor aluminum conductor steel reinforced acsr moose conductor image
Brand Name :
Sanwu
Model Number :
ACAR
Certification :
ISO CCC
Place of Origin :
Henan
MOQ :
1000M
Price :
USD 0.2-20 per meter
Payment Terms :
L/C, T/T
Supply Ability :
200 tons per day
Delivery Time :
1-15days
Packaging Details :
wooden drums
Conductor :
Aluminum
Core :
Aluminum alloy
Color :
Silver
Insulation :
Bare
Rated Voltage :
0.6-1kv;1-35KV
Jacket :
Bare
Insulation material :
Bare
Standard :
BS IEC ASTM DIN,ASTM,IEC60502,IEC
Application :
Overhead
Oem :
Welcome
Sample :
free
overhead conductor aluminum conductor steel reinforced acsr moose conductor
Application:
ACSR has the installation characteristics of simple structure, low line cost, large transmission capacity, across the rivers and the valley of the special geographical conditions. It is easy and convenient to erection and maintenance. So the products are widely applied to various kinds of levels of voltage overhead power transmission and distribution line.
| mm² | % | mm² | mm² | mm² | mm | mm | mm | mm | kg/km | KN | ohm/km | ||
| 10/2 | 17 | 10.60 | 1.77 | 12.37 | 6 | 1 | 1.50 | 1.50 | 1.50 | 4.50 | 42.8 | 4.14 | 2.7062 |
| 16/3 | 17 | 16.13 | 2.69 | 18.82 | 6 | 1 | 1.85 | 1.85 | 1.85 | 5.55 | 65.1 | 6.13 | 1.7791 |
| 35/6 | 17 | 34.86 | 5.81 | 40.67 | 6 | 1 | 2.72 | 2.72 | 2.72 | 8.16 | 140.8 | 12.55 | 0.8230 |
| 50/8 | 17 | 48.25 | 8.04 | 56.30 | 6 | 1 | 3.20 | 3.20 | 3.20 | 9.60 | 194.8 | 16.81 | 0.5946 |
| 50/30 | 58 | 50.73 | 29.59 | 80.32 | 12 | 7 | 2.32 | 2.32 | 6.96 | 11.60 | 371.1 | 42.61 | 0.5693 |
| 70/10 | 17 | 68.05 | 11.34 | 73.39 | 6 | 1 | 3.80 | 3.80 | 3.80 | 11.40 | 274.8 | 23.36 | 0.4217 |
| 70/40 | 58 | 69.73 | 40.67 | 110.40 | 12 | 7 | 2.72 | 2.72 | 8.16 | 13.60 | 510.2 | 58.22 | 0.4141 |
| 95/15 | 16 | 94.39 | 15.33 | 109.73 | 26 | 7 | 2.15 | 1.67 | 5.01 | 13.60 | 380.2 | 34.93 | 0.3059 |
| 95/20 | 20 | 94.39 | 15.33 | 109.73 | 26 | 7 | 2.80 | 2.18 | 6.53 | 17.70 | 694.9 | 57.69 | 0.1805 |
| 95/55 | 58 | 96.51 | 56.30 | 152.81 | 12 | 7 | 3.20 | 3.20 | 9.60 | 16.00 | 706.1 | 77.85 | 0.2992 |
| 120/7 | 6 | 118.89 | 6.61 | 125.50 | 18 | 1 | 2.90 | 2.90 | 2.90 | 14.50 | 378.5 | 27.74 | 0.2422 |
| 120/20 | 16 | 115.67 | 18.82 | 134.49 | 26 | 7 | 2.38 | 1.85 | 5.55 | 15.10 | 466.1 | 42.26 | 0.2496 |
| 120/25 | 20 | 122.48 | 24.25 | 146.73 | 7 | 7 | 4.72 | 2.10 | 6.30 | 15.70 | 525.7 | 47.96 | 0.2346 |
| 120/70 | 58 | 122.15 | 71.25 | 193.40 | 12 | 7 | 3.60 | 3.60 | 10.80 | 18.00 | 893.7 | 97.92 | 0.2364 |
| 150/8 | 6 | 144.76 | 8.04 | 152.80 | 18 | 1 | 3.20 | 3.20 | 3.20 | 16.00 | 460.9 | 32.73 |
0.199 |

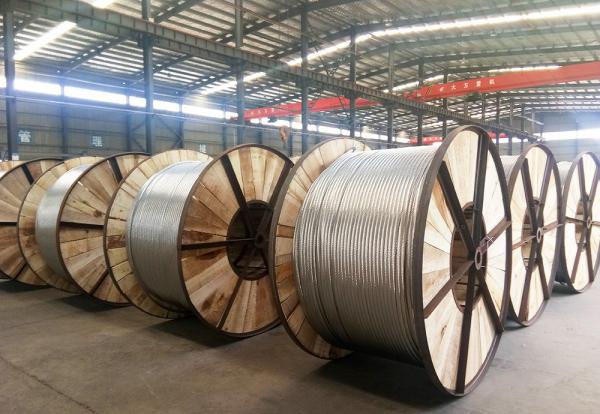

Packaging Details
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.
Delivery Time
Generally it is 5-10 days if the goods are in stock,or it is 15.
FAQ:
Q: Are you trading company or manufacturer ?
A: We have our own factory and trading company, our factory have more than 10 years production experience.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.L/C is also available.
Q:Have you ever supplied cables to our country ?
A: Cables have been supplied to many countries across the world such as USA, Australia, Switzerland, Singapore, Sri Lanka, the Philippines, Mongolia, UAE, Yemen, Iran, Iraq, Nigeria, Egypt, Lesotho, Cameroon, etc.
We are China overhead conductor aluminum conductor steel reinforced acsr moose conductor manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
