Overhead Transmission ACSR Aluminum Conductor 50 100 Dog Rabbit Wolf Bare ACSR Conductor

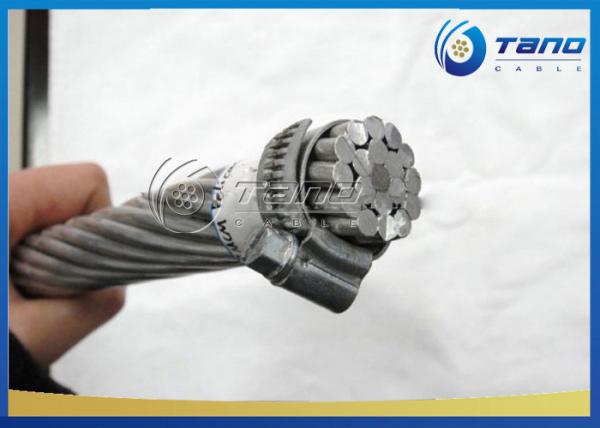

Overhead Transmission ACSR Aluminum Conductor 50 100 Dog Rabbit Wolf Bare ACSR Conductor image
Brand Name :
TANO CABLE
Model Number :
ACSR
Certification :
ISO
Place of Origin :
Henan, China
MOQ :
5000m
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200TON/per month
Delivery Time :
7-30days
Packaging Details :
By wooden or steel-wooden drum
application :
overhead transmission
conductor :
aluminum, steel wire
insulation :
without
sheath :
without
name :
ACSR Aluminum Conductor
certification :
ISO
TANO CABLE 95 /15 795 MCM Bare ACSR Conductor Philippines Myanmar Peru Use
Technical specification
| Code Name | Nominal Area | No./Nominal diameter of wires | Approximate Overall Diameter | Sectional Area | Approximate Weight | Nominal Breaking Load | Nominal DC Resistance at 20℃ | Current Rating(*) | |||
| Aluminum | Steel | Aluminum | Steel | Total | |||||||
| mm2 | No./mm | No./mm | mm | mm2 | mm2 | mm2 | kg/km | KN | ohm/km | A | |
| Gopher | 25 | 6/2.36 | 1/2.36 | 7.08 | 26.24 | 4.38 | 30.62 | 106 | 9.61 | 1.093 | 115 |
| Weasel | 30 | 6/2.59 | 1/2.59 | 7.77 | 31.61 | 5.27 | 36.88 | 128 | 11.45 | 0.9077 | 129 |
| Ferret | 40 | 6/3.00 | 1/3.00 | 9 | 42.41 | 7.07 | 49.48 | 172 | 15.2 | 0.6766 | 155 |
| Rabbit | 50 | 6/3.35 | 1/3.35 | 10.05 | 52.88 | 8.82 | 61.7 | 214 | 18.35 | 0.5426 | 178 |
| Horse | 70 | 12/2.79 | 7/2.79 | 13.95 | 73.37 | 42.83 | 116.2 | 538 | 61.2 | 0.3936 | 225 |
| Dog | 100 | 6/4.72 | 7/1.57 | 14.15 | 105 | 13.5 | 118.5 | 394 | 32.7 | 0.2733 | 271 |
| Dingo | 150 | 18/3.35 | 1/3.35 | 16.75 | 158.7 | 8.8 | 167.5 | 506 | 35.7 | 0.1815 | 346 |
| Wolf | 150 | 30/2.59 | 7/2.59 | 18.13 | 158.1 | 36.8 | 194.9 | 726 | 69.2 | 0.1828 | 351 |
| Lynex | 175 | 30/2.79 | 7/2.79 | 19.53 | 183.4 | 42.8 | 226.2 | 842 | 79.8 | 0.1576 | 384 |
| Caracal | 175 | 18/3.61 | 1/3.61 | 18.05 | 184.3 | 10.2 | 194.5 | 587 | 41.1 | 0.1563 | 379 |
| Panther | 200 | 30/3.00 | 7/3.00 | 21 | 212.1 | 49.4 | 261.5 | 974 | 92.25 | 0.1363 | 420 |
| Jaguar | 200 | 18/3.86 | 1/3.86 | 19.3 | 210.6 | 11.7 | 222.3 | 671 | 46.55 | 0.1367 | 411 |
| Zebra | 400 | 54/3.18 | 7/3.18 | 28.62 | 428.9 | 55.6 | 484.5 | 1621 | 131.9 | 0.0674 | 636 |
ALUMINIUM CONDUCTORS STEEL REINFORCED – ACSR
Standard
BS 215
Packing
Factory workshop
Product Photo
Customers' visit
FAQ
Q1. Are you a manufacturer?
Yes, we are a manufacturer own factory with almost 30 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power Cable,Copper Alloy Wire for Electrical Railway System
Q3. How can I get samples?
Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar model is OK for you. we provide the free samples for inspection while freight is charged.
Q4. What is our payment terms ?
We can accept the following payment terms: T/T, L/C
Q5. What’s the package of products ?
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers’ requirement.
