Overhead Transmission Line OPGW Installation Tools Conductor Stringing Blocks φ660x100mm

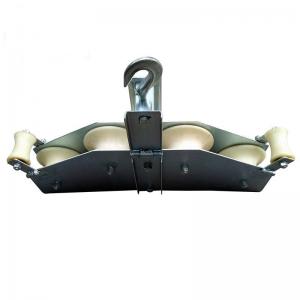

Overhead Transmission Line OPGW Installation Tools Conductor Stringing Blocks φ660x100mm image
Brand Name :
SHENGHONG
Model Number :
SHDN-660
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
1set
Price :
USD1800-2500/set
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
15 days after deposit
Packaging Details :
pallet
Product Name :
Overhead Transmission Line OPGW Installation Tools Stringing Blocks φ660x100mm
Type :
OPGW stringing pulley block
Item :
OPGW Stringing Equipment Tools
Wheel Diameter :
660mm
Wheel Width :
100mm
Wheel Material :
Nylon
Overhead Transmission Line OPGW Installation Tools Conductor Stringing Blocks φ660x100mm
Application:
It is suitable to stringing stranded OPGW.Compression sleeves,swivel connectors,and pulling rope connectors can pass through the groove.The sheave is made in aluminum alloy or high strength nylon.The big size 508mm,660mm,822mm,916mm,1040mm nylon sheave can be lined with neoprene.
Single Wheel-Wheel material aluminum or Nylon, and it could be covered by rubber.
| Model | Wheel size Diameter x Width (mm) | Conductor size (mm2) | Rated load (kN) | Weight (kg) | Wheel material |
| SHD-120X30 | 120×30 | 25~70 | 5 | 2.1 | Aluminum |
| SHD-160X40 | 160X40 | 95~120 | 10 | 3.1 | |
| SHD-200X40 | 200X40 | 150~240 | 15 | 3.7 | |
| SHD-200X60 | 200X60 | 150~240 | 15 | 4.1 | |
| SHD-250X40 | 250X40 | 150~240 | 20 | 5.1 | |
| SHD-250X60 | 250X60 | 300~400 | 20 | 5.4 | |
| SHD-270X60 | 270X60 | 300~400 | 20 | 6.7 | |
| SHD-320X60 | 320X60 | 300~400 | 20 | 10.4 | |
| SHD-400X80 | 400X80 | 400~500 | 20 | 11.9 | |
| SHDN-120X30 | 120×30 | 25~70 | 5 | 1.5 | Nylon |
| SHDN-160X40 | 160X40 | 95~120 | 10 | 2.3 | |
| SHDN-200X40 | 200X40 | 150~240 | 15 | 2.5 | |
| SHDN-200X60 | 200X60 | 150~240 | 15 | 3.0 | |
| SHDN-250X40 | 250X40 | 150~240 | 20 | 3.6 | |
| SHDN-250X60 | 250X60 | 300~400 | 20 | 3.8 | |
| SHDN-270X60 | 270X60 | 300~400 | 20 | 4.3 | |
| SHDN-320X60 | 320X60 | 300~400 | 20 | 7.5 | |
| SHDN-400X80 | 400X80 | 400~500 | 20 | 8 | |
| SHD-508X75 | 508X75 | ≤400 | 20 | 22.3 | Aluminum |
| SHD-660X100 | 660X100 | ≤500 | 20 | 30 | |
| SHDN-508X75 | 508X75 | ≤400 | 20 | 18 | Nylon |
| SHDN-660X100 | 660X100 | ≤500 | 20 | 20 | |
| SHDN-830X110 | 830X110 | ≤630 | 30 | 25 | |
| SHDN-916X110 | 916X110 | ≤800 | 50 | 45 | |
| SHDN-1040X125 | 1040X125 | ≤1000 | 55 | 105 |
Note:
1. Hook fitting,round eye fitting and clevis fitting are optional,please specify when ordering.Customized blocks could be supplied on request.The data in the model mean the outer diameter of sheave x widthof sheave(mm).
2. All the sheaves are mounted on ball bearings.Thel frame of blocks is made in galvanized steel.
Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
We are China Overhead Transmission Line OPGW Installation Tools Conductor Stringing Blocks φ660x100mm manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
