PE Jacket 185mm2 Sac Spaced Aerial Cable 33KV XLPE Insulation

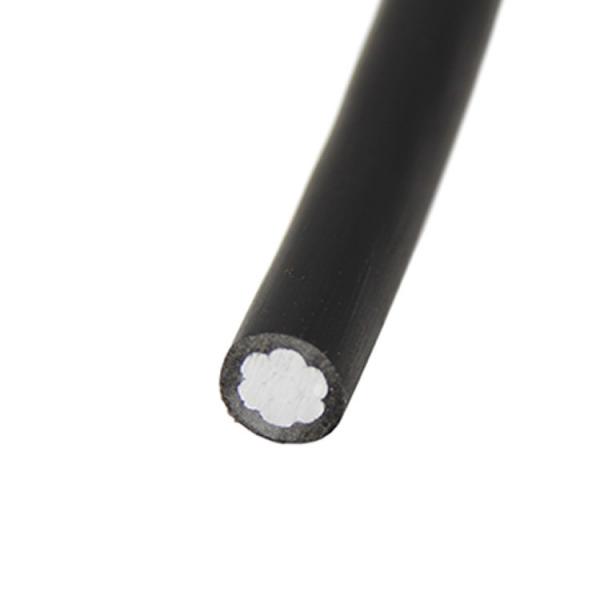

PE Jacket 185mm2 Sac Spaced Aerial Cable 33KV XLPE Insulation image

Get a Quote Email to us

Model Number :SAC SPACED AERIAL CABLE

Certification :ISO9001, CE

Place of Origin :Henan, China

MOQ :1000m

Payment Terms :L/C, T/T, Western Union

Supply Ability :50000 Meter/Meters per Month SAC space aerial cable

Delivery Time :1-4 weeks

Packaging Details :Roll/Wooden Reel/Iron-wooden Reel/Steel Reel

Price :200 Meter/Meters (Min. Order)

Conductor :AAC Conductor

Insulation :XLPE

Jacket :PE

Sample :Freely supplied

20KV 33KV AAC Conductor XLPE insulation PE jacket 185mm2 SAC SPACED AERIAL CABLE

Product Description

1.Application

2.Applicable Standard

ASTM B230,ICEA S 66-524 , IEC 60228, IEC60502-2

3.Cable Structure:

4.Packing Material

Wooden Reel, Iron-wooden Reel, Steel Reel

20KV SPACER CABLE

Cable Size	Conductor Construction		Conductor shield thickness	Insulation thickness	Outer Jacket thickness	Cable dia.	Conductor Resistance
Cable Size	Stranding No.	Overall dia.	Conductor shield thickness	Insulation thickness	Outer Jacket thickness	Cable dia.	Conductor Resistance
mm2	mm	mm	mm	mm	mm	mm	Ω/km
50	≥6	7.7-8.6	0.4	3.2	3.2	21.8	0.641
70	≥12	9.3-10.2	0.4	3.2	3.2	23.5	0.443
95	≥15	11.0-12.0	0.4	3.2	3.2	25.2	0.32
120	≥15	12.3-13.5	0.4	3.2	3.2	26.6	0.253
150	≥18	13.7-15.0	0.4	3.2	3.2	28	0.206
185	≥30	15.3-16.8	0.4	3.2	3.2	29.8	0.164

33KV SPACER CABLE

Cable Size	Conductor Construction		Conductor shield thickness	Insulation thickness	Outer Jacket thickness	Cable dia.	Conductor Resistance
Cable Size	Stranding No.	Overall dia.	Conductor shield thickness	Insulation thickness	Outer Jacket thickness	Cable dia.	Conductor Resistance
mm2	mm	mm	mm	mm	mm	mm	Ω/km
50	≥6	7.7-8.6	0.4	4.5	3.2	24.4	0.641
70	≥12	9.3-10.2	0.4	4.5	3.2	26.1	0.443
95	≥15	11.0-12.0	0.4	4.5	3.2	27.8	0.32
120	≥15	12.3-13.5	0.4	4.5	3.2	29.2	0.253
150	≥18	13.7-15.0	0.4	4.5	3.2	30.6	0.206
185	≥30	15.3-16.8	0.4	4.5	3.2	32.4	0.164

Packing&Shipping

Packing material:

Coil (For small size & short length), Wooden Drum, Iron-Wooden Drum, Steel Drum.

Shipping:

Loading port from Qingdao or Shanghai, 12-24 hours from facotry to sea port.

We are China PE Jacket 185mm2 Sac Spaced Aerial Cable 33KV XLPE Insulation manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
