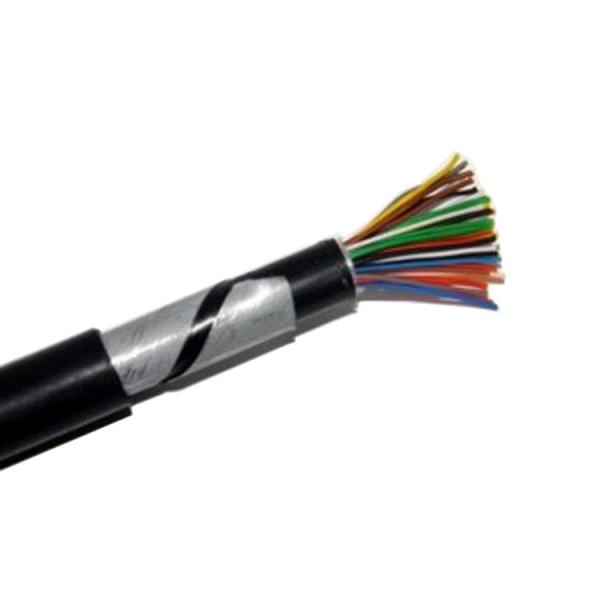

PE Sheath Multiconductor Railway Signaling Cables Armoured
PE Sheath Multiconductor Railway Signaling Cables Armoured image
Steel Tape Armoured PE Sheath Multiconductor Railway Signaling Cables
Product Description
I. Application
II. Performance Characters
III. Cable structure
IV. Detailed cable dimension and characters
PTYA23 CABLE
|
No. of core |
Copper size |
Max. DC Resistance at 20 ℃ |
Approx. Cable Dia. |
Max. Working capacitance of twisted pair |
Max. Star four-wire group working capacitance |
Min. Insulation resistance |
|
/ |
mm |
Ω/km |
mm |
nF |
nF |
MΩ/km |
|
4 |
1.0 |
23.5 |
14.3 |
70 |
50 |
3000 |
|
6 |
1.0 |
23.5 |
17.5 |
70 |
50 |
3000 |
|
8 |
1.0 |
23.5 |
25 |
70 |
50 |
3000 |
|
9 |
1.0 |
23.5 |
25 |
70 |
50 |
3000 |
|
12 |
1.0 |
23.5 |
27 |
70 |
50 |
3000 |
|
14 |
1.0 |
23.5 |
27 |
70 |
50 |
3000 |
|
16 |
1.0 |
23.5 |
29 |
70 |
50 |
3000 |
|
19 |
1.0 |
23.5 |
29 |
70 |
50 |
3000 |
|
21 |
1.0 |
23.5 |
29 |
70 |
50 |
3000 |
|
24 |
1.0 |
23.5 |
31 |
70 |
50 |
3000 |
|
28 |
1.0 |
23.5 |
31 |
70 |
50 |
3000 |
|
30 |
1.0 |
23.5 |
31 |
70 |
50 |
3000 |
|
33 |
1.0 |
23.5 |
31 |
70 |
50 |
3000 |
|
37 |
1.0 |
23.5 |
38 |
70 |
50 |
3000 |
|
42 |
1.0 |
23.5 |
38 |
70 |
50 |
3000 |
|
44 |
1.0 |
23.5 |
38 |
70 |
50 |
3000 |
|
48 |
1.0 |
23.5 |
38 |
70 |
50 |
3000 |
|
52 |
1.0 |
23.5 |
40 |
70 |
50 |
3000 |
|
56 |
1.0 |
23.5 |
42 |
70 |
50 |
3000 |
|
61 |
1.0 |
23.5 |
43 |
70 |
50 |
3000 |
Packing&Shipping
Packing material:
Coil (For small size & short length), Wooden Drum, Iron-Wooden Drum, Steel Drum.
Shipping:
Loading port from Qingdao or Shanghai, 12-24 hours from facotry to sea port.
We are China PE Sheath Multiconductor Railway Signaling Cables Armoured manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
