Pine Tree Mobile Tower Lattice telecommunication Tubular Telecom Tower

 China Pine Tree Mobile Tower Lattice telecommunication Tubular Telecom Tower supplier

Pine Tree Mobile Tower Lattice telecommunication Tubular Telecom Tower image

Get a Quote Email to us

Brand Name :
Suntech Tower

Model Number :
Tubular Telecom Tower

Certification :
ISO, CE

Place of Origin :
China

MOQ :
1 Tower

Price :
Negotiation

Payment Terms :
L/C, T/T, Western Union

Supply Ability :
80000 Metric Ton/Metric Tons Per Year

Delivery Time :
30-35 days after deposit

Packaging Details :
Exported Containers

Product :
Telecommunication Tubular Telecom Tower

Material List :
Q235B & Q355B equivalent to A36/S235JR & Gr50/S355JR

Height :
10-80m

Surface Treatment :
Hot-dip galvanized and specific bark with branches

Wind Speed :
110~160km/h 3 second gust

Application :
Transmission Line Tower

Pine Tree Mobile Tower Lattice Telecommunication Tubular Telecom Tower

Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged

in the field of electric power more than 26 years.

Communication tower consists of tower body, platform, lightning rod, ladder, antenna support and

other steel components, and by hot galvanized anti-corrosion treatment, mainly for microwave,

ultrashort wave, wireless network signal transmission and transmission.

Signal tower is a type of signal transmission tower, also called a signal transmission tower or a signal

tower. Its main function is to support signal transmission and to support signal transmission antennas.
There are the following communication towers: angle steel four-post communication tower, steel pipe

three-post communication tower, single-pole communication tower (beautified, bionic tree, light pole),

lifting communication tower, and movable communication tower.

Telecommunication Tower- Goods description and major parameters
No. Description Detailed Specification and Major design Parameters
1 Design Code ANSI/TIA222G, European Standard and others
2 Design Loading 1. Antenna load area as per specified by Clients worldwide.
2. Wind speed as per requested by the clients.
3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.
4 Structure Classification II
5 Hot-dip galvanization ISO 1461 2009, ASTM A123
6 Steel Grade 1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60
2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR
3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR
7 Bolts and Nuts Mainly ISO 898 grade 6.8 and 8.8 bolts
8 Foundation 50KPa, 100KPa, 150KPa soil bearing capacity mainly.
9 Tower Type 1. 3 Leg Self supported Angular Towers
2. 3 Leg Self supported Tubular Towers
3. 4 Leg Self supported Angular Towers
4. 4 Leg Self supported Tubular Towers
5. Guyed Mast
6. Monopole Tower

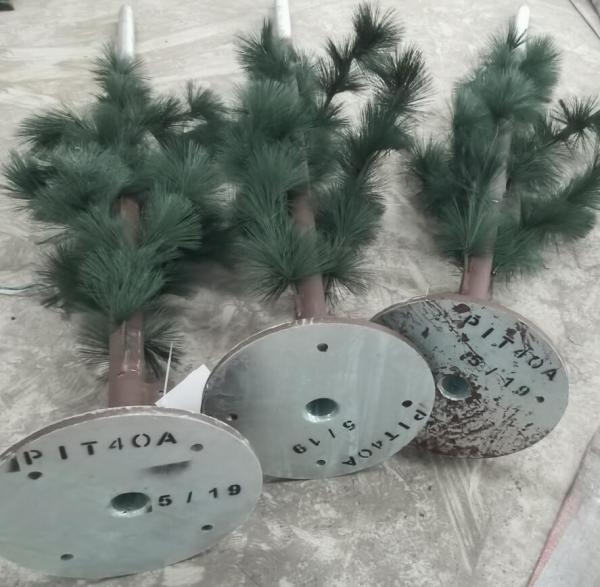

7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree
8. RDS Tower: Rapid Deploy Site/Tower
9. Rooftop Towers
10. Smart Poles
10 Warranty 1. Tower structures: 10 years
2. Camouflaged towers
a. Barks: 10 years
b. Branches and leaves: 3 years
11 Return Period 50 Years
12 Accessories 1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White
2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light
3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients.
4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients.
5. ACDB as per specified by clients
6. Fencing: Palisade fence and wire mesh fence with razor wires and gate.
7. Fall arrest system: GB and CE certificate fall arrest system.
8. Optical Fiber Cable: as per specified by client
9. Generator: as per specified by client
10. Canopy and Generator Cage: as per specified by clients

And our branch company Ningbo Suntech Power Machinery Tools Co.,Ltd. as a professional global supplier who have been exporting more than 90 countries in the world, we have been trying to focus on the comprehensive solutions like provides all related products and engineering services as client's requirement, for example from engineering consultant, design services, drawing services, manufacturing, transportation, supervision and even installation construction & maintenance services.

Insisting on business philosophy of “To be honest, To get win-win” and service concept of pursuing maximizing customer value , makes it win great reputations from both telecommunication operators and electricity power operators,we are willing to develop and share sucess with you.

With more than 26 years experiences on the steel pole,we have manufactured and exported huge quantity

of hot dip galvanized and /or Steel Antenna Microwave Communication Monopole from 20m to 40m which

service for the signal transmission industry development of the world.We have the complete production line

and machines,and skillful workers with high efficiency which can make us produce 10 tons or 5 sets of the

electric power poles everyday. A quick production period and delivery schedule ensured our client have more

obvious advantage in their market.

The Steel Antenna Microwave Communication Monopole is made by the high-quality hot rolled steel plate

which was bent into Trapezoid according to the poles's dimension,then welding ,grinding,hot dip galvanized

and packing for delivery as following shows:

1. The single-tube tower is generally divided into 2-5 sections, which are connected by plug or flange.
2. The cross section of the single-tube tower is circular or polygonal, the main body of the tower is tapered,

and the upper diameter is small and the diameter is large.
3. There is an antenna installation platform on the body of the single-tube tower. The tower has a nail-climbing

worker to operate on the upper and lower towers. The tower has safety protection devices to protect workers.
4. Single-tube tower ladders can be set up in two forms: outer ladder and inner ladder.
5. The single-tube tower has a small footprint, simple tower structure and short construction period, which can

save land resources and costs, and is especially suitable for construction in cities.

We are China Pine Tree Mobile Tower Lattice telecommunication Tubular Telecom Tower manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
