PVC Insulated PVC Sheathed Shielded Control Cable With Yellow – Green Earth Wire

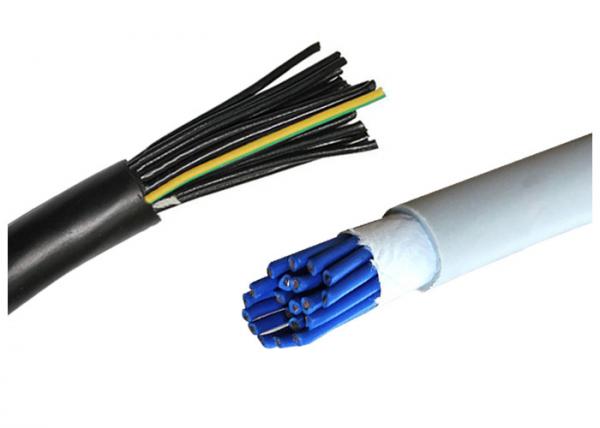

PVC Insulated PVC Sheathed Shielded Control Cable With Yellow – Green Earth Wire image
Brand Name :
SHAN CABLE
Model Number :
KVV
Certification :
CE/KEMA/CCC/TUV
Place of Origin :
SHANGHAI CHINA
MOQ :
1000m
Price :
USD 0.4 To 10.5 per Meter
Supply Ability :
8KM per Day
Delivery Time :
10-15 Days
Packaging Details :
Wooden Steel Drums
Core :
2 to 61
Screen :
Al-foil and Tinned Copper Wire Brain Double Screen
Color :
Black
Crosssection :
2.5mm2 to 10mm2
Conductor type :
Class 1 or Class 2
Earth Wire :
Yellow Green
PVC insulated PVC Sheathed Control Cable With Yellow-Green Earth Wire
Specifications
Copper conductor PVC insulated and sheathed control cable
ZR-KVV 450/750V
IEC, CE, CCC, KEMA
factory price
high quality
Constructions
Conductor: Stranded copper conductor, class 2 Solid copper conductor, class1
Insulation: PVC
Sheath: PVC or Flame-retardant PVC
Note: Insulation color as per standards or at request
Applications
Be suitable for measuring controlling or regulation for assmebly and production line with rated voltage 450/750 V.
For laying indoors, in ducts and in trenches, for fixed installation.
Standards
International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 450/ 750V
Max. Conductor Temp.: normal (70°C)
short circuit no more than 5s (160°C )
Certificates
CE, RoHS, CCC, KEMA and more others at request
Why Choose Screen Control Cable
Reduce the impact of external current transmission, Keep safe and Correctly.
Why Choose SHAN CABLE
Here's Shanghai Shenghua Cable Is Committed to Offer for Every Customer:
High quality cable product with competitive price;
OEM cable product
Custom design per specific cable requirements and budgets;
Fast and on-time delivery of cable;
Flexible business deal;
Chief cable engineer with over 40 years' experience;
Harmonious colleague and customer relationship;
All cable products 100% Inspection;
Comprehensive after-sale service.
| Cross-Sectional Area mm2 |
Thickness of Insulation mm |
Thickness of mm |
Thickness of Sheath mm |
Overall Diameter mm |
Min resistance of insulation at 70℃ MΩ/km |
Max.D.C resistance of at 20℃ MΩ/km |
Approx Weight (kg/km) |
|
| min | max | |||||||
| 4×2.5 | 0.8 | 0.3 | 1.5 | 13.4 | 16.1 | 0.001 | 7.98 | 450 |
| 4×4 | 0.8 | 0.3 | 1.5 | 14.4 | 17.4 | 0.0085 | 4.95 | 505 |
| 4×6 | 0.8 | 0.3 | 1.5 | 15.6 | 18.8 | 0.007 | 3.3 | 619 |
| 4×10 | 1 | 0.3 | 1.7 | 19.4 | 23.5 | 0.0065 | 1.91 | 947 |
| 5×2.5 | 0.8 | 0.3 | 1.5 | 14.3 | 17.2 | 0.001 | 7.98 | 506 |
| 5×4 | 0.8 | 0.3 | 1.5 | 15.4 | 18.6 | 0.0085 | 4.95 | 586 |
| 5×6 | 0.8 | 0.3 | 1.7 | 16.7 | 20.2 | 0.007 | 3.3 | 737 |
| 5×10 | 1 | 0.3 | 1.7 | 21 | 25.4 | 0.0065 | 1.91 | 1125 |
| 7×0.75 | 0.6 | 0.3 | 1.5 | 11.8 | 14.2 | 0.012 | 26 | 317 |
| 7×1.0 | 0.6 | 0.3 | 1.5 | 12.2 | 14.7 | 0.011 | 19.5 | 425 |
| 7×2.5 | 0.7 | 0.3 | 1.5 | 13.5 | 16.3 | 0.01 | 7.98 | 554 |
| 7×4 | 0.8 | 0.3 | 1.5 | 15.2 | 18.4 | 0.0085 | 4.95 | 701 |
| 7×6 | 0.8 | 0.3 | 1.7 | 18 | 21.7 | 0.007 | 3.30 | 900 |
| 7×10 | 1 | 0.3 | 1.7 | 22.7 | 27.4 | 0.0065 | 1.91 | 1397 |
| 10×0.75 | 0.6 | 0.3 | 1.5 | 13.8 | 16.7 | 0.012 | 26 | 449 |
| 10×1 | 0.6 | 0.3 | 1.5 | 14.4 | 17.4 | 0.011 | 19.5 | 558 |
| 10×1.5 | 0.7 | 0.3 | 1.5 | 16.1 | 19.5 | 0.011 | 13.3 | 753 |
| 10×2.5 | 0.8 | 0.3 | 1.7 | 18.8 | 22.7 | 0.01 | 7.98 | 956 |
| 10×4 | 0.8 | 0.3 | 1.7 | 20.5 | 24.8 | 0.0085 | 4.95 | 1203 |
| 10×6 | 0.8 | 0.3 | 1.7 | 22.5 | 27.1 | 0.007 | 3.3 | 1534 |
We are China PVC Insulated PVC Sheathed Shielded Control Cable With Yellow – Green Earth Wire manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
