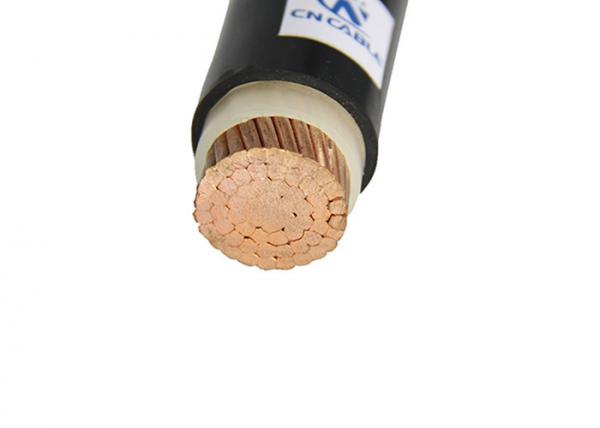

PVC Single Core 95mm2 Low Voltage Control Cable
PVC Single Core 95mm2 Low Voltage Control Cable image
Model Number :YVZ3V
Place of Origin :HENAN
MOQ :1000m
Payment Terms :L/C, T/T
conductor :Solid or stranded copper
insulation :XLPE
Dia :95mm2
armoured :without armoured
tape :without tape
outer sheath :PVC
Standard: IEC60502-1 , BS 5467, ICEA S-95-658, CSA C22.2 , NFC 33-210 /NFC 32-322, AS-NZS 5000.1,etc
Structure
1. Solid or stranded copper conductor
2. XLPE insulation
3. Dia 95mm2
4. Without Armoured
5. Cable core number: 1Core
6. PVC outer sheath
| Single(1) core, XLPE Insulated Power Cable | |||||||||
| Size | Cable dia. | Cable weight | |||||||
| None- | Steel tape armored | Steel wire armored | None- | Steel tape armored | Steel wire armored | ||||
| armored | armored | ||||||||
| CU | AL | CU | AL | CU | AL | ||||
| mm2 | mm | kg/km | |||||||
| 70 | 15 | 19.8 | 21.1 | 717 | 305 | 935 | 522 | 988 | 575 |
| 95 | 16.9 | 21.5 | 23.5 | 966 | 397 | 1198 | 629 | 1303 | 734 |
| 120 | 18.5 | 23.1 | 25.1 | 1201 | 483 | 1453 | 735 | 1567 | 848 |
We are China PVC Single Core 95mm2 Low Voltage Control Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 95mm2 Low Voltage Control Cable, LV Power Cable, PVC Low Voltage Control CableSimilar Or Related
