Q235 Hot Dip Galvanized Steel Tower For Telecommunication RDU RDS

 China Q235 Hot Dip Galvanized Steel Tower For Telecommunication RDU RDS supplier

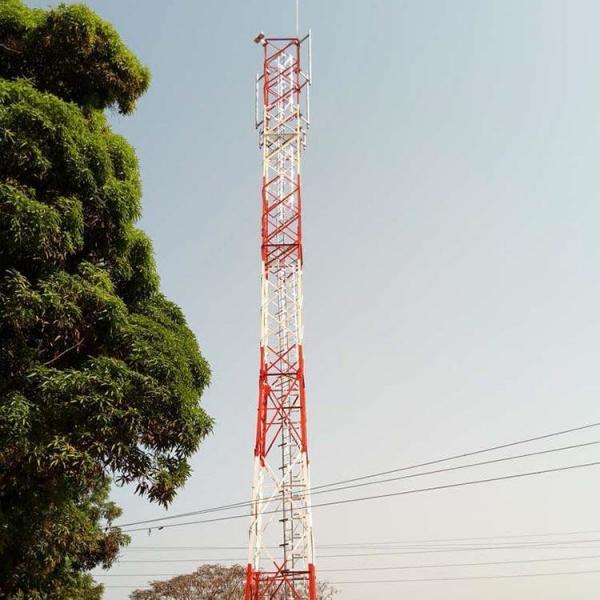

Q235 Hot Dip Galvanized Steel Tower For Telecommunication RDU RDS image

Get a Quote Email to us

Brand Name :
Suntech Tower

Model Number :
Galvanized Steel Tower

Certification :
ISO, CE

Place of Origin :
China

MOQ :
1 Tower

Price :
Negotiation

Payment Terms :
L/C, T/T, Western Union

Supply Ability :
100000 Metric Ton/Metric Tons Per Year

Delivery Time :
30-35 days after payment

Packaging Details :
Exported Containers

Product Name :
Galvanized Steel Tower

Material List :
Steel Q345,Q235,Q420

Wind Speed :
110~160km/h_3 second gust

Application :
Site Construction

Surface Treatment :
Hot Dip Galvanised

Lifetime :
20-30 years

Telecommunication RDU RDS Hot-Dip Galvanized Steel Tower

We are leading Chinese Tower manufacturer which have 26 years experiences, offering all kind of tower products and related accessories, do installation and maintenance, and have been exporting more than 65 countries over the decades.

Also we have lots of experiences for the tower design based on International standard and offering low cost-effective solution to our clients worldwide.

Production Process

Here is fabrication process for our transmission tower; however, both parties must discuss all drawings and confirm all shop drawings, technical specification, and which standard to conform. Before mass production, we must received all signed approved shop drawings and technical documents from our client.

Monopole cell tower telecom toweris a type of signal transmission tower, also called a signal transmission tower or a signal tower. Its main function is to support signal transmission and to support signal transmission antennas.
There are the following communication towers: angle steel four-post communication tower, steel pipe three-post communication tower, single-pole communication tower (beautified, bionic tree, light pole), lifting communication tower, and movable communication tower.

Telecommunication Tower- Goods description and major parameters

No. Description Detailed Specification and Major design Parameters
1 Design Code ANSI/TIA222G, European Standard and others
2 Design Loading

1. Antenna load area as per specified by Clients worldwide.

2. Wind speed as per requested by the clients.

3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.

4 Structure Classification II
5 Hot-dip galvanization ISO 1461 2009, ASTM A123
6 Steel Grade

1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60

2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR

3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR

7 Bolts and Nuts Mainly ISO 898 grade 6.8 and 8.8 bolts
8 Foundation 50KPa, 100KPa, 150KPa soil bearing capacity mainly.
9 Tower Type

1. 3 Leg Self supported Angular Towers

2. 3 Leg Self supported Tubular Towers

3. 4 Leg Self supported Angular Towers

4. 4 Leg Self supported Tubular Towers

5. Guyed Mast

6. Monopole Tower

7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree

8. RDS Tower: Rapid Deploy Site/Tower

9. Rooftop Towers

10. Smart Poles

10 Warranty

1. Tower structures: 10 years

2. Camouflaged towers

a. Barks: 10 years

b. Branches and leaves: 3 years

11 Return Period 50 Years
12 Accessories

1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White

2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light

3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients.

4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients.

5. ACDB as per specified by clients

6. Fencing: Palisade fence and wire mesh fence with razor wires and gate.

7. Fall arrest system: GB and CE certificate fall arrest system.

8. Optical Fiber Cable: as per specified by client

9. Generator: as per specified by client

10. Canopy and Generator Cage: as per specified by clients

Quick Detail:

Monopole TowerMonopoles are one of the least intrusive and easiest communication towers to erect. This

fact has led to them quickly becoming one of the most popular structures in the wireless communication industry.

As consumer demand for data on wireless devices continues to skyrocket, wireless carriers are faced with severe

capacity issues on their networks. While new technology and better wireless antennas can help, the best solution

is to add additional towers. However, adding towers in urban areas has become difficult in recent years as more

stringent zoning laws and lack of available land make the process longer and more expensive. Due to monopoles

and concealed monopoles (pine poles, flag poles, palm poles, etc…) requiring smaller footprints and being more

aesthetically pleasing, wireless carriers have increasingly turned to these structures to deploy in populated areas.

Monopole advantages:
Small tower footprint and foundation
Fast and easy to erect
Aesthetically pleasing

We are China Q235 Hot Dip Galvanized Steel Tower For Telecommunication RDU RDS manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
