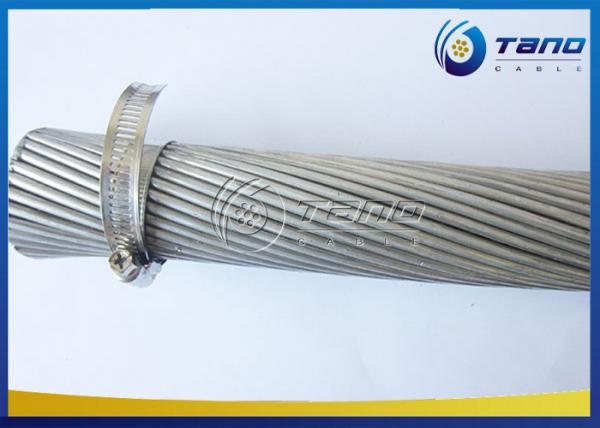

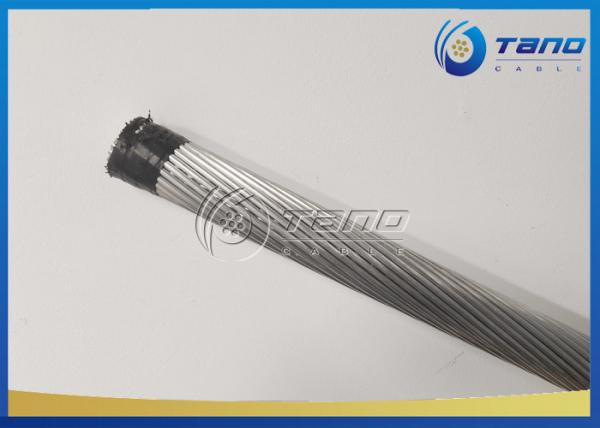

Reliable All Aluminium Alloy Conductor , Overhead Transmission Line Conductor
Reliable All Aluminium Alloy Conductor , Overhead Transmission Line Conductor image
Brand Name :
TANO CABLE
Model Number :
AAAC 1120
Certification :
ISO CCC
Place of Origin :
CHINA
MOQ :
2000 Meters
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
3000KM Per Month
Delivery Time :
5-30 days upon order quantity
Packaging Details :
by coil, plastic bag, wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery.
Conductor :
hard drawn All aluminum ally wire
Conductor type :
Circular Stranded
Application :
Overhead line
Rated Voltage :
33kV
Standard :
AS 1531
Cable type :
AAAC Almelec cable
TANO CABLE Aluminium Alloy Conductor Almelec AAAC for overhead transmission line
Description of alloy condcutor
The AAAC 1120 are concentrically stranded conductor, it consists one or more layers of aluminum alloy wire 1120
Application of ACAR ABC CABLE
In air circuits where more than of the AAC conductor (between 40 and 50%) or lower weight and better corrosion resistance and the ACSR conductor. With a conductivity of 59% IACS, the aluminum alloy 1120 greatly replaces the alloy 6201 in relation to electrical resistance.
Standard of AAC ACSR CONDUCTOR
AS 1531
Construction of Almelec cable
Conductor:Concentric Stranded all aluminum alloy wire
Construction Parameters of aluminum power cable
| Type | Number / Dia. of Wire | Approx. Overall Diameter | Approx. Weight | Calculated Breaking Load | DC Resistance at 20℃ Max. | ||
| No. / mm | mm | kg/km | kN | Ohm/km | |||
| Chlorine | 7 | / | 2.50 | 7.50 | 94 | 8.2 | 0.864 |
| Chromium | 7 | / | 2.75 | 8.25 | 114 | 9.9 | 0.713 |
| Fluorine | 7 | / | 3.00 | 9.00 | 135 | 11.8 | 0.599 |
| Helium | 7 | / | 3.75 | 11.25 | 211 | 17.6 | 0.383 |
| Hydrogen | 7 | / | 4.50 | 13.50 | 304 | 24.3 | 0.266 |
| Iodine | 7 | / | 4.75 | 14.25 | 339 | 27.1 | 0.239 |
| Krypton | 19 | / | 3.25 | 16.25 | 433 | 37.4 | 0.189 |
| Lutetium | 19 | / | 3.50 | 17.50 | 502 | 41.7 | 0.163 |
| Neon | 19 | / | 3.75 | 18.75 | 577 | 47.8 | 0.142 |
| Nitrogen | 37 | / | 3.00 | 21.00 | 720 | 62.2 | 0.114 |
| Nobelium | 37 | / | 3.25 | 22.75 | 845 | 72.8 | 0.0973 |
| Oxygen | 19 | / | 4.75 | 23.75 | 925 | 73.6 | 0.0884 |
| Phosphorus | 37 | / | 3.75 | 26.25 | 1125 | 93.1 | 0.0731 |
| Selenium | 61 | / | 3.25 | 29.25 | 1397 | 114.0 | 0.0592 |
| Silicon | 61 | / | 3.50 | 31.50 | 1620 | 127.0 | 0.0511 |
| Sulfur | 61 | / | 3.75 | 33.75 | 1859 | 145.0 | 0.0444 |
Feature of AAAC conductor
1. AAAC 1120 conductor
2. MV or HV rating voltage
3. For overhead line and distribution grid

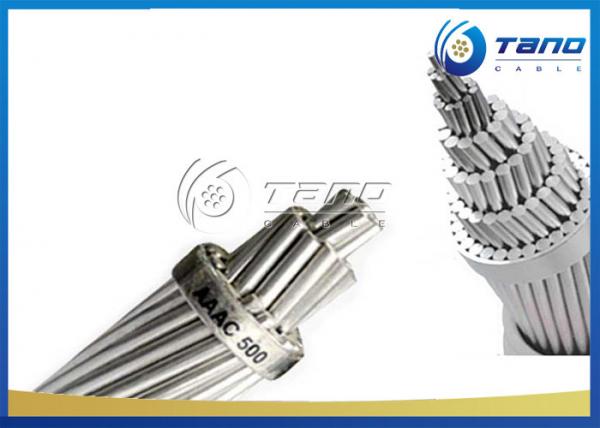

Drawing of AAAC
We are China Reliable All Aluminium Alloy Conductor , Overhead Transmission Line Conductor manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
