RoHS 4mm2 Steel Armoured Electrical Cable Black Sheath

 China RoHS 4mm2 Steel Armoured Electrical Cable Black Sheath supplier

RoHS 4mm2 Steel Armoured Electrical Cable Black Sheath image

Get a Quote Email to us

Brand Name :
SHANCABLE

Model Number :
YJV22-0.6-1KV

Certification :
ISO,CE,IEC,TUV,KEMA

Place of Origin :
Shanghai, China

MOQ :
Negotiable

Price :
Negotiable

Payment Terms :
L/C, T/T

Supply Ability :
100KM/Week

Delivery Time :
10 Days

Packaging Details :
Wooden Drum

Product name :
Armored Power Cable

Conductor :
Copper

Insulation :
XLPE(cross-linked polyethylene) rated at 90 OC

Inner sheath :
PVC or as request

Armored :
Steel Tape.

Sheath :
PVC or FR-PVC type ST2 to IEC 60502, black

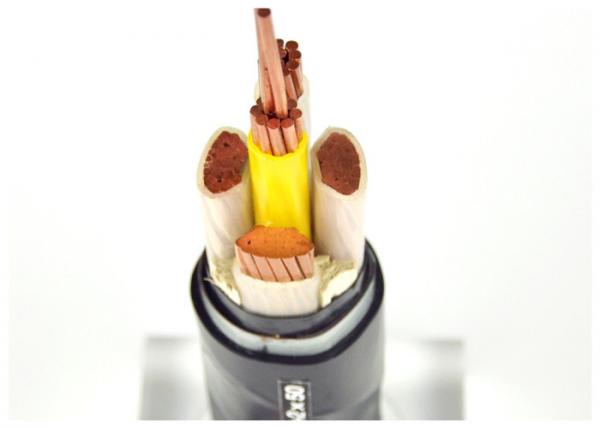

Copper Conductor XLPE Insulation Double layer Steel Tape Armored Power Cable

Armored Power Cable Construction

Conductor :Stranded Copper Conductor, Cl.2 as per IEC 60228

Insulation : XLPE(cross-linked polyethylene) rated at 90 OC

Inner sheath :PVC or as request

Armored : Steel Tape.

Sheath : PVC or FR-PVC type ST2 to IEC 60502, black

Armored Power Cable Application

Apply to shafts,water and soil,able to bear the larger positive pressure. Underground directly

Armored Power Cable Standard

International: IEC 60502, IEC 60228,

China: GB/T 12706, (GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

Armored Power Cable Technical data:

Rated voltage:0.6/1KV

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 12 x cable O.D for multi core

Armored Power Cable Certificate

CE, RoHS, , KEMA and more others at request

Commercial Items: MOQ: 500m

Price term: FOB shanghai or as request.

Payment terms: 30% T/T before production, 70% T/T before delivery

Packing : Wooden Iron drum

Armored Power Cable Specifications

Armoured Cable Wiring Details

PACKING AND SHIPPING

All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum. The packing material is depended on the weight and size of cable. After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight. The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.
