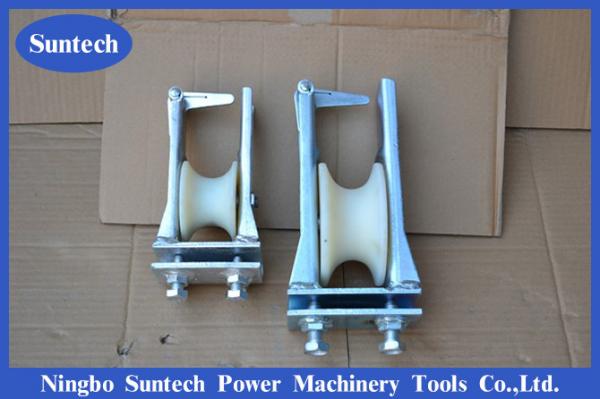

SHCN-2 Cross Arm Mounted Skyward Sitting Pulley Conductor Stringing Block
SHCN-2 Cross Arm Mounted Skyward Sitting Pulley Conductor Stringing Block image
SHCN-2 Cross Arm Mounted Skyward Sitting Pulley Conductor Stringing Block
Apply to pull small diameter conductor on the cross arm mounted of straight pole.
Quick Information:
1. Suntech Power Brand
2. Rated load 20kn
3. Applicable for 35-240mm2 LGJ conductor ACSR
4. Wheel Nylon material
5. Overhead stringing blocks
Skyward String Block Product:
| Item number | Model | Rated load (kN) | Dia×Width(mm) |
(LGJ) Applicable Conductor ACSR |
Weight (kg) | Remark |
| 10231 | SHC-0.5 | 5 | Φ80X50 | 25-185 | 1.5 |
Aluminium sheave |
| 10232 | SHC-2 | 20 | φ120X60 | 35-240 | 3 | |
| 10221 | SHC-1 | 10 | ≤ 400 | 4 | ||
| 10233 | SHCN-0.5 | 5 | Φ80X50 | 25-185 | 1.1 |
Nylon sheave |
| 10234 | SHCN-2 | 20 | φ120X60 | 35-240 | 2.3 | |
| 10222 | SHLN-1 | 10 | ≤ 400 | 3 |
We are China SHCN-2 Cross Arm Mounted Skyward Sitting Pulley Conductor Stringing Block manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 120x60mm stringing pulley, 20kn stringing pulley, conductor stringing blocks, cross arm mounted stringing pulley
