Single Conductor Power Line Stringing Equipment Puller Tensioner 35 KV

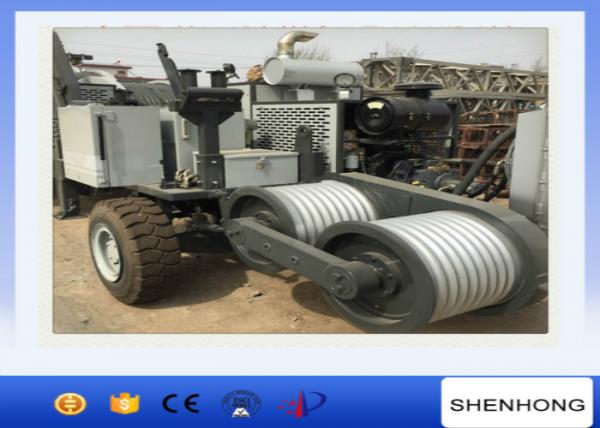

 China Single Conductor Power Line Stringing Equipment Puller Tensioner 35 KV supplier

Single Conductor Power Line Stringing Equipment Puller Tensioner 35 KV image

Get a Quote Email to us

Brand Name :
SHENGHONG

Model Number :
SA-YQ30 SA-YQ40 SA-YZ30A

Certification :
ISO

Place of Origin :
MADE IN CHINA

MOQ :
1set

Price :
negotiation

Payment Terms :
L/C, T/T, Western Union

Supply Ability :
5sets/month

Delivery Time :
30 workdays after payment

Packaging Details :
standard export package

Application :
Overhead Line Transmission

Warranty :
1 year

Usage :
stringing single conductor

Max Tesnion :
3T

Max Stringing Speed :
5km/h

Max Pulling Force :
4T

Single Conductor Power Line Stringing Equipment Puller Tensioner 35 KV ​

35KV Transmission Line Stringing Equipment is used for stringing single conductor on 33KV Overhead Transmission Line. The 3 ton hydraulic puller with 3 ton hydraulic tensioner can be also used for OPGW stringing. We could provide whole set of equipment and tools for 33KV transmission line stringing, such as puller, tensioner, stringing blocks, anti twisting braided steel wire rope, come along clamps, socket grips, swivel jonts, fixed joints, compressors etc.

1. SA-YQ30 Hydraulic Puller

Item No. 07001
Model SA-YQ30
Stringing capacity 1 PILOT WIRE ROPE
Max. Pulling Force (KN) 30
Continuous Max. Pulling Force (KN) 25
Speed at Max. continuous pull: 2.5km/h
Max. Pulling Speed (m/min) 5km/h
Root Diameter of Bull wheel (mm) Φ300
Number of grooves 7
Max. Steel rope Diameter (mm) Φ13
Model of Diesel Engine Water cooled diesel engine
Power of Diesel Engine 31 KW
Rotate Speed of Engine (rpm) 2200
Electrical System DC24V
Weight (kg) 1500
Dimension (m) 3.2 x 1.6 x 2.0

Application:

The hydraulic puller is used to pull pilot wire rope for overhead transmission line. It is equipped with hydraulic system, and can be easily used and maintained

Features:

-With closed hydraulic circuit and variable displacement plunger pump, the pulling force could be step less controlled.

-The max pulling force for stringing operation can be preset.

-Automatic over pulling protection system

-With the radiator imported from Germany, the machine has good heat dissipate performance.

-With a negative spring applied hydraulic released brake, and automatic overload protection.

-With hydraulic oil cooling system.

-Heat treated wear-proof bullwheels

-With rigid axle for towing at high speed, the machine looks beautiful.

-Integral self-loading reel winder with automatic level wind.

-Heavy duty R-tires with excellent shock-absorbing performance.

Main Components:

-Engine: Cummins water-cooled diesel engine (China)

-Main variable displacement hydraulic pump and main motor: Rexroth (Germany)

-Reducer: R.R. (Italian)

-Hydraulic instruments: (German)

-Radiator: AKG (German)

2. SA-YQ40 Hydraulic Puller

Item No. 07011
Model SA-YQ40
Stringing capacity 1 PILOT WIRE ROPE
Max. Pulling Force (KN) 40
Continuous Max. Pulling Force (KN) 35
Speed at Max. continuous pull: 2.5km/h
Max. Pulling Speed (m/min) 5km/h
Root Diameter of Bull wheel (mm) Φ400
Number of grooves 7
Max. Steel rope Diameter (mm) Φ16
Model of Diesel Engine Water cooled diesel engine
Power of Diesel Engine 60 KW
Rotate Speed of Engine (rpm) 2000
Electrical System DC24V
Weight (kg) 2500
Dimension (m) 3.5 x 2.0 x 2.3

Application:

The hydraulic puller is used to pull pilot wire rope for overhead transmission line. It is equipped with hydraulic system, and can be easily used and maintained

Features:

-With closed hydraulic circuit and variable displacement plunger pump, the pulling force could be step less controlled.

-The max pulling force for stringing operation can be preset.

-Automatic over pulling protection system

-With the radiator imported from Germany, the machine has good heat dissipate performance.

-With a negative spring applied hydraulic released brake, and automatic overload protection.

-With hydraulic oil cooling system.

-Heat treated wear-proof bullwheels

-With rigid axle for towing at high speed, the machine looks beautiful.

-Integral self-loading reel winder with automatic level wind.

-Heavy duty R-tires with excellent shock-absorbing performance.

Main Components:

-Engine: Cummins water-cooled diesel engine (China)

-Main variable displacement hydraulic pump and main motor: Rexroth (Germany)

-Reducer: R.R. (Italian)

-Hydraulic instruments: (German)

-Radiator: AKG (German)

2. Hydraulic Tensioners 3 Ton SA-YZ30A (Suitable for both conductor and OPGW, ADSS optic fiber cable)

Item No. 07155
Model SA-YZ30A
Max. Tension Force (KN) 30
Continuous Tension Force (KN) 25
Max. Stringing Speed(km/h) 5
Max. Pullback force (KN) 20
Max. Pullback speed (km/h) 0.9
Diameter of wheel (mm) Φ1200
Number of grooves 5
Max. Conductor Diameter (mm) Φ32
Model of Engine S195GM
Power of Engine 11KW
Rotate Speed of Engine (rpm) 2200
Electrical system: DC12V
Weight (kg) 1700
Dimension (m) 3.56 x 1.60 x 2.22

Application:

It is suitable for single conductor, earth wire,OPGW and ADSS optic fiber cable stringing in line stringing operation.

Features:

-Closed hydraulic circuit, infinitely variable tension force contril

-The max. tension/pull back force can be preset, the tension force can be read from tension gauge

-Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure line safety

-Hydraulic oil cooling system

-Bull wheels lined with wear proof MC nylon lining segments

-With rigid axle for towing at max. speed of 15 km/h

Main components:

-Engine: Chinese famous branded water-cooled diesel engine

-Main pump: Sauer (USA)

-Reducer: Dinamic Oil (Italian)

-Hydraulic Instrument: (German)

-Radiator: AKG (German)

We are China Single Conductor Power Line Stringing Equipment Puller Tensioner 35 KV manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
