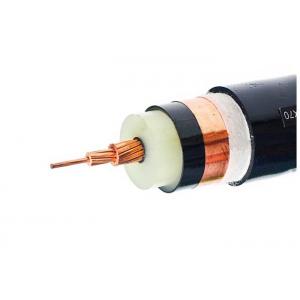

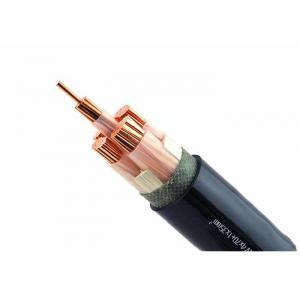

Single Core And Three Core 26/35KV High Voltage XLPE Insulated Cable From 50sqmm to 400sqmm

 China Single Core And Three Core 26/35KV High Voltage XLPE Insulated Cable From 50sqmm to 400sqmm supplier

Single Core And Three Core 26/35KV High Voltage XLPE Insulated Cable From 50sqmm to 400sqmm image

Get a Quote Email to us

Brand Name :SHANCABLE
Model Number :CU/XLPE/CTS/PVC-26/35KV
Certification :ISO,CE,IEC,TUV,KEMA
Place of Origin :Shanghai, China
MOQ :Negotiable
Price :Negotiable
Payment Terms :L/C, T/T
Supply Ability :100KM/Week
Delivery Time :10 Days
Packaging Details :Wooden Drum
Test Voltage :91KV/5mins
Insulation Thinckness :10.5mm
International Standard :IEC60502-2,IEC60228
Rated Voltage :26/35(40.5)KV
Sample :Free
Conductor :Annealed Copper

Single Core And Three Core 26/35KV High Voltage XLPE Insulated Power Cable From 50sqmm to 400sqmm

Description:

26/35kv XLPE Insulated Electric Power cable

CU/XLPE/PVC, IEC 60502-2

IBS 6622, VDE 0276, IEC 60228, GB/T 12706.2-2008.

CE, CCC, KEMA. ISO

Constructions:

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃
Sheath : PVC type ST2 to IEC 60502, black

Note: Insulation color as per standards or customer requirement

Applications:

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Standards:

International: IEC 60502, IEC 60228,IBS 6622, VDE 0276

China: GB/T 12706.2-2008

Other standards such as BS,DIN and ICEA upon request

Technical data:

Rated voltage: 26/35kV

Max. Conductor Temp.: normal (90℃), short circuit no more than 5 s (160℃ when section-area

below 300mm2, 140℃ when section-area above 300mm2)

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%

Certificates:

CE, RoHS, CCC, KEMA and more others at request

Technical Specifications:

Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Sheath Thickness Approx. O.D. Approx.Weight Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm mm kg/km Ω /km kV/5min In air (A) In soil(A)
1 × 50 10/2.52 10.5 2.2 39.0 1758 0.387 3.5 220 215
1 × 70 14/2.52 10.5 2.4 41.0 2038 0.268 3.5 270 265
1 × 95 19/2.52 10.5 2.4 42.0 2355 0.193 3.5 330 315
1 × 120 24/2.52 10.5 2.4 44.0 2666 0.153 3.5 375 360
1 × 150 30/2.52 10.5 2.5 45.0 3031 0.124 3.5 425 400
1 × 185 37/2.52 10.5 2.5 47.0 3427 0.0991 3.5 485 455
1 × 240 48/2.52 10.5 2.6 49.0 4070 0.0754 3.5 560 525
1 × 300 61/2.52 10.5 2.7 51.0 4748 0.0601 3.5 650 595
1 × 400 61/2.97 10.5 2.8 55.0 5801 0.0470 3.5 760 680
1 × 500 61/3.23 10.5 2.9 58.0 6623 0.0366 3.5 875 775
1 × 630 61/3.50 10.5 3 62.0 5211 0.0283 3.5 1000 875
1 × 800 91/3.20 10.5 3.1 68.0 10014 0.0221 3.5 1130 970
1 × 1000 91/3.75 10.5 3.3 72.0 12078 0.0176 3.5 1250 1060
3 × 50 10/2.52 10.5 3.7 81.0 6728 0.387 3.5 185 200
3 × 70 14/2.52 10.5 3.8 84.0 7581 0.268 3.5 230 250
3 × 95 19/2.52 10.5 3.9 88.0 8630 0.193 3.5 280 300
3 × 120 24/2.52 10.5 4.0 91.0 9688 0.153 3.5 310 330
3 × 150 30/2.52 10.5 4.1 95.0 11017 0.124 3.5 360 380
3 × 185 37/2.52 10.5 4.2 98.0 12390 0.0991 3.5 400 425
3 × 240 48/2.52 10.5 4.4 103.0 14427 0.0754 3.5 470 490
3 × 300 61/2.52 10.5 4.5 108.0 15940 0.0601 3.5 540 555
3 × 400 61/2.97 10.5 4.8 116.0 19346 0.0470 3.5 610 625
