Single Core Electrical Cable Wire With Solid Copper Conductor 300 / 500V WIth PVC Sheath

 China Single Core Electrical Cable Wire With Solid Copper Conductor 300 / 500V WIth PVC Sheath supplier

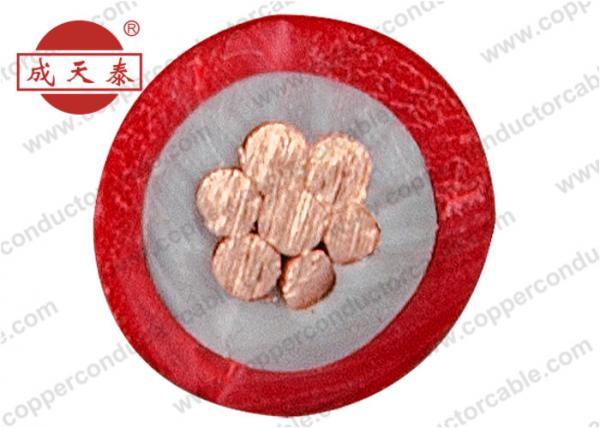

Single Core Electrical Cable Wire With Solid Copper Conductor 300 / 500V WIth PVC Sheath image

Get a Quote Email to us

Brand Name :
CTT cable

Model Number :
BVV 1 10

Certification :
CE, CB, CCC

Place of Origin :
Shenzhen,China (Mainland)

MOQ :
Negotiable

Price :
Negotiable

Payment Terms :
L/C, T/T

Delivery Time :
7/ 15 working days

Packaging Details :
Coil in foil (100 m)

Name :
Single Core Electrical Cable Wire

Cable Shape :
Round

Conductor :
Flexible Conductor

Insulation :
PVC Compound

Sheath :
PVC Compound

Single Core Electrical Cable Wire With Solid Copper Conductor 300 / 500V WIth PVC Sheath

lectrical Cable Wire introduction:

Place of Origin: China Mainland

Brand Name: Shenzhen Chentiantai Cable

Certification: CE, CB, CCC

Model Number : BVV

Minimum Order : 100 Unit

Price : On Request

No. Of Conductor: Single Core

Cable Shape: Round

Conductor: Flexible Conductor

Insulation: PVC Compound

Sheath: PVC Compound

lectrical Cable Wire Application

Exposed wiring in air or in raceway, wet or dry location and used for mobile electrical equipment

lectrical Cable Wire Specification:

Nominal cross sectional

Area

(mm²)

Upper limit of average outer diameter

(mm)

Maximum DC resistance at 20 ℃

(Ω/km)

Minimum insulation resistance at 70 ℃

(MΩ/km)

Approximate carrying capacity

(A)

Reference weight

(Kg/km)

1.5 3.5 13.3 0.010 25.4 22
2.5 4.2 7.98 0.009 34.5 34
4.0 4.8 4.95 0.007 44.5 51
6.0 6.3 3.30 0.006 58.3 75
10 7.6 1.91 0.0056 79.5 131

* The ampacity of cable will be directly affected by the lay-out methods and the ambient temperature.

lectrical Cable Wire Features:

Permissible operating temperature at conductor +70℃
Short circuit temperature (duration max. 5 s) 160℃
Minimum installation temperature Should not be lower than 0 ℃
Max. Conductor permissible tensile stress 50 N/mm ²
Minimum bending radius 15 × cable Ø

lectrical Cable Wire Advantage:

It has the advantages of acid and alkali resistance, oil resistance, moisture-proof, mildew resistance, etc

Other Information:

Packaging Details: Coil in foil

Delivery Time: 15 working days

Payment Terms : L/C, T/T

CUSTOMER SERVICES Did you know?

We manufactures a comprehensive array of wires and cables to meet diverse market needs.

We look forward to assisting you in identifying the best products for your specific

application and to answer any questions you might have.

Head office: Chentiantai Industrial Park, Lisonglang community , Gongming office, Guangming district , Shenzhen P.R. China 518106

. Shenzhen Chengtiantai Cable operates certified management systems compliant with: ISO 9001:2008/ ISO14001:2004/OHSAS 18001 : 2007

. Cable production started 1983

. 35 years of cable manufacturing experience

·Sales in 2016 about 500 million USD

.100,000m² production area

.350 will-trained employees

.8 workshops

.1 R&D Center

Because we continuously improve our products, CTT Cable reserves the right to change specifications and availability without prior notice.

Products Certificates

CE IEC China Compulsory Certificate, 3C

– Certificate No. : CE170103005324
– Holder: shenzhen chengtiantai cable industry development Co.Ltd.

– Certified through China quality certification centre
– Data of issue:Mar. 17, 2017
– ​Date of expiration:Mar. 17, 2020

– Certificate No. : CN39750
– Holder: shenzhen chengtiantai cable industry development Co.Ltd.

– Certified through China quality certification centre
– Data of issue:Mar. 17, 2017
– ​Date of expiration: Mar. 17, 2020

– Certificate No. : 2004010105108087
– Holder: shenzhen chengtiantai cable industry development Co.Ltd.

– Certified through China quality certification centre
– Data of issue: May. 15, 2015
– ​Date of expiration: Sep. 11, 2018

* All substances of the cable meet the requirements of RoHS Directive-compliant
