Single Core Photovoltaic Solar Panel Cable RED Black 6mm2 1.5KV 1000m/Drum

 China Single Core Photovoltaic Solar Panel Cable RED Black 6mm2 1.5KV 1000m/Drum supplier

Single Core Photovoltaic Solar Panel Cable RED Black 6mm2 1.5KV 1000m/Drum image

Get a Quote Email to us

Brand Name :Zhenglan Cable
Model Number :Single core Solar Panel cable RED Black 6mm2 1.5KV 1000m/drum
Certification :3C,ISO 9001:2015,ISO 14001:2005
Place of Origin :China
MOQ :5000meters single color
Price :0.2-50USD/M
Payment Terms :T/T, L/C, ,Western Union
Supply Ability :80000M/DAY
Delivery Time :7-15DAY
Packaging Details :1000m/drum
Material :Tinned Copper
Insulation :cross linkedin polyolefin
Outer sheath :cross linkedin polyolefin
Size :6mm2
Standard :EN50618, EN50332-1
Voltage :DC 1.5KV

Single core Solar Panel cable RED Black 6mm2 1.5KV 1000m/drum

Solar cables are interconnecting cables for photovoltaic power generation. Solar cables interconnect solar panels and other electronic components of photovoltaic systems. The solar cable is designed to be UV and weather resistant. They can be used in a wide temperature range and are usually placed outdoors.

Cable Construction

Conductor : Fine Wire Tinned Copper Conductor according to BS EN 60228:2005 cl. 5.
Insulation : UV resistant, cross linked, halogen free, flame retardant compound
Core Identification : Red, black
Sheath : UV resistant, cross linked, halogen free, flame retardant compound
Cable Colour : Red, Black

Packing style: 100meters/roll, 200meters/roll, 500meters/drum, 1000meters/drum, or customize as per customer’s requirement

Single core Solar Panel cable RED Black 6mm2 1.5KV 1000m/drum​ CHARACTERISTICS

Voltage Rating Uo/U AC: 1000/1000V DC: 1500/1500V

Maximum Voltage (Umax) 1800V Test Voltage 6.5kV AC

Temperature Rating Fixed: -40°C to +90°C

Minimum Bending Radius 5 x overall diameter

Maximum Conductor Temperature +120°C (for 20000h)

Flame retardant to IEC/EN 60332-1-2

Low Smoke Zero Halogen to IEC/EN 60754-1/2, IEC/EN 61034-1/2, EN 50267-2-2 Ozone and UV Resistant to EN 60811-403, EN 50396, EN ISO 4892-1/3

DC connection
The individual modules are connected using cables to form a PV generator. The module cables are connected as wires to the generator junction box, and the main DC cables connect the generator junction box to the inverter. To eliminate the risk of ground faults and short circuits, each double insulated positive and negative cable is separated.

Single core Solar Panel cable RED Black 6mm2 1.5KV 1000m/drum​ Technical Date

Nominal voltage (DC):1.5KV (AC):1.0/1.0KV
Voltage test on completed cable (AC):6.5KV(DC):15KV,5MIN
Ambient temperature -40℃~+90℃
Thermal endurance properties

+120℃,2000h

elongation at break≥50%

Service life >25 (-40℃~+90℃)
Refer toshortcirauit allows the temperature 200℃,5 (S)
Bending radius ≥4×φ (D<8M),≥6×φ (D≥8MM)
Resistance against acid and alkaline solution EN60811-404
Cold bending test EN60811-504
Weathering/U- resistance HD605/A1
0-zone resistance at complete cable EN50396
Test under fire conditions EN60332-1-2

Single core Solar Panel cable RED Black 6mm2 1.5KV 1000m/drum​ specification

Construction Conductor Construction Conductor Outer Cable Outer Resistance Max. Current Carring Capacity AT 60℃
mm² nxmm mm mm Ω/Km A
1X1.5 30X0.25 1.58 4.60 13.7 30
1X2.5 47X0.25 1.98 5.10 8.21 41
1X4.0 56X0.283 2.35 5.50 5.09 55
1X6.0 84X0.283 3.06 6.30 3.39 70
1X10 142X0.3 4.60 7.80 1.95 98
1×16 228X0.3 5.60 9.20 1.24 132
1×25 361X0.3 6.95 11.30 0.795 176
1×35 494X0.3 8.30 13.30 0.565 218

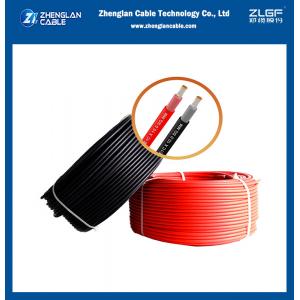

Single core Solar Panel cable RED Black 6mm2 1.5KV 1000m/drum​​ images

We are China Single Core Photovoltaic Solar Panel Cable RED Black 6mm2 1.5KV 1000m/Drum manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
