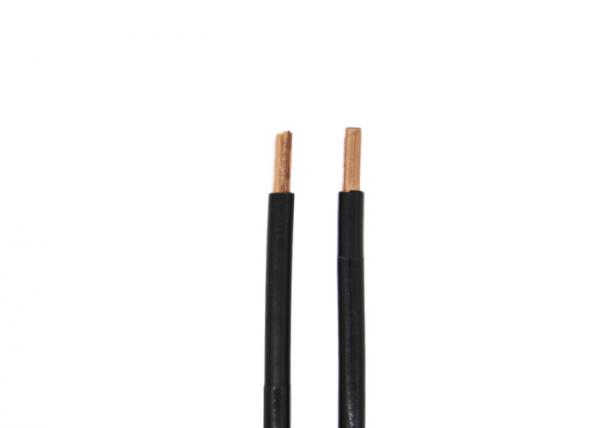

Single Core PVC Insulation 300V 4mm 6mm LV Power Cable
Single Core PVC Insulation 300V 4mm 6mm LV Power Cable image
Model Number :Electric wire
Certification :IEC 60227
Place of Origin :Henan ,China
MOQ :1000meters
Conductor :Single copper core
Insulated :PVC insulation
Colour :Black, red
Application :Building,construction
Type :Low Voltage
Jacket :PVC
Lv 4mm 6mm PVC XLPE Insulated Single Core Copper Electric Power Cables And Wires
Application
- This cable belongs to the series of electric wires, which are mainly suitable for laying at the fixed places.
- They are widely used as connectors of driving, lighting, electric equipments, instrument and telecommunication equipments with rated voltage up to 450/750V.
- Part of the plastic wires are used at the equipment with AC rated voltage up to 300/300V.
Construction
- Rated voltage : 300/500V , 450/750V
- Conductor : Copper, Class1 , Class2 , Class5 , Class6
- Insulation : PVC/XLPE/PE
- Shape : Round / Flat (For two cores and above)
- Colour : Green , Yellow , Red , Blue , Grey , Black , White , Orange , etc.
Standard
According to IEC, BS, VDE, ASTM, CSA , AS/NZS , etc.
Packing: Roll/ Wooden drum
Technical parameter
| 450/750V Solid Cu /PVC Insulation | |||||
| Size | Cu conductor | PVC Insulation | Approx. Overall Dia. | Approx. Weight | |
| mm2 | Str. No. | Dia. | Nominal Thickness | ||
| No.s | mm | mm | mm | kg/km | |
| 4 | 1 | 2.26 | 0.8 | 3.9 | 48 |
| 6 | 1 | 2.76 | 0.8 | 4.4 | 67 |
| 10 | 1 | 3.57 | 1 | 5.6 | 111 |
We are China Single Core PVC Insulation 300V 4mm 6mm LV Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 300V LV Power Cable, 6mm LV Power Cable, IEC 60227 PVC Insulation Cable, LV Power CableSimilar Or Related
