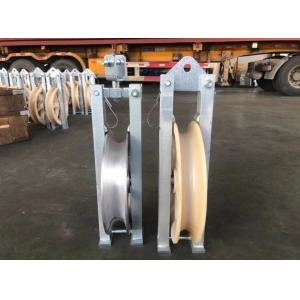

Single Nylon Sheave ACSR Overhead Line Conductor Stringing Blocks
Single Nylon Sheave ACSR Overhead Line Conductor Stringing Blocks image
Single Nylon Sheave ACSR Overhead Line Conductor Stringing Blocks
Ningbo Suntech Power Machinery Tools Co.,Ltd.is a professional manufacturer and exporter in Ningbo,Zhejiang,China.
Electric construction tools included stringting tools and equipment,such as stringing blocks,cable roller,hoisting tackles,
conductor gripper,cable rell stand,gin poles,inspection trolley,cable pulling winch,pilot wire,hydraulic puller and tensioner,etc.
Single sheave Nylon Stringing Block
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10191 | SHDN-120×30 | 25-70 | 5 | 1.5 | Nylon |
| 10192 | SHDN-160×40 | 70-95 | 10 | 2.4 | |
| 10193 | SHDN-200×40 | 95-120 | 15 | 2.6 | |
| 10194 | SHDN-200×60 | 120-150 | 15 | 3.1 | |
| 10195 | SHDN-250×40 | 120-150 | 20 | 3.7 | |
| 10196 | SHDN-250×60 | 150-180 | 20 | 3.9 | |
| 10197 | SHDN-270×60 | 180-240 | 20 | 4.4 | |
| 10198 | SHDN-320×60 | 240-300 | 20 | 7.5 | |
| 10199 | SHDN-400×80 | 300-400 | 20 | 8 | |
| 10104 | SHDN508 | 300-400 | 20 | 16 | Nylon, optional can be lined with neoprene |
| 10124 | SHDN660 | 400-500 | 20 | 24 | |
| 10131 | SHDN750 | 500-600 | 30 | 32 | |
| 10141 | SHDN822 | 600-700 | 30 | 38 | |
| 10151 | SHDN916 | 700-800 | 50 | 51 | |
| 10165 | SHDN1040 | 800-900 | 50 | 60 |
Application: It is suitable to string stranded aluminum and ACSR conductors on tangent structures. Compression sleeves,
swivel connectors, and pulling rope connectors can pass through the groove.
We are China Single Nylon Sheave ACSR Overhead Line Conductor Stringing Blocks manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
