SIPZ Series Integrated Cable Drum Jacks With Disc Tension Brake

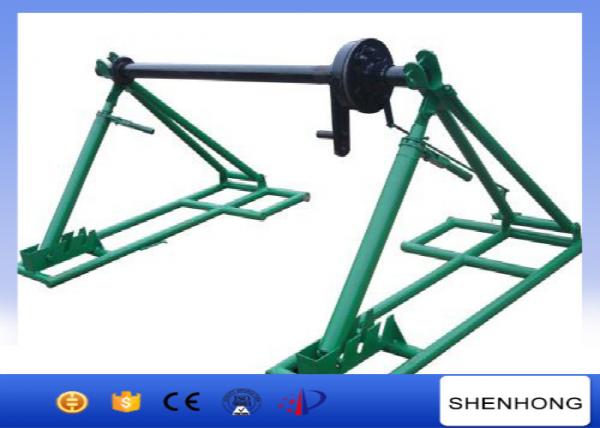

SIPZ Series Integrated Cable Drum Jacks With Disc Tension Brake image
Brand Name :
shenhong
Model Number :
SIPZ
Certification :
BV,CE,ISO
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Set/Sets per Month
Delivery Time :
ten days after deposit
Packaging Details :
plywood case
Application :
construction
Diameter of coil :
900-2500mm
Max width of coil :
1350-1700mm
Maximum weight :
3000-7000kg
Brake torque :
1000-2000N.m
Linespeed :
80m/min
Weight :
200-480kg
Used :
spport reel
SIPZ series integrated cable reel drum stand with disc tension brake
Application
It is used to support reel in tension releasing wire or mechanically linepulling wire or machanically linepulling wire and to brake the reel. It is convenient transportation because it can be disassembled into 3 pieces.
Notes
SIPZ-7 is double disc brake.
Technical data of SIPZ series integrated cable reel drum stand with disc tension brake
| Model | SIPZ3A | SIPZ5A | SIPZ-7 | |
| Applicable reel | Diameter of coil(mm) | Φ900-1600 | Φ1600-2400 | Φ1800-2500 |
| Width of coil(mm) | ≤1350 | ≤1350 | ≤1700 | |
| Diameter of axle hole(mm) | Φ65-100 | Φ65-100 | Φ120 | |
| Maximum weight(kg) | 3000 | 5000 | 7000 | |
| Brake torque(N.m) | 1000 | 1000 | 2000 | |
| Linespeed(m/min) | 80 | 80 | 80 | |
| Weight(kg) | 200 | 215 | 480 | |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
We are China SIPZ Series Integrated Cable Drum Jacks With Disc Tension Brake manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
