Steel 3 Leg 4 Leg Self Supporting Tower Tubular Antenna Tower

 China Steel 3 Leg 4 Leg Self Supporting Tower Tubular Antenna Tower supplier

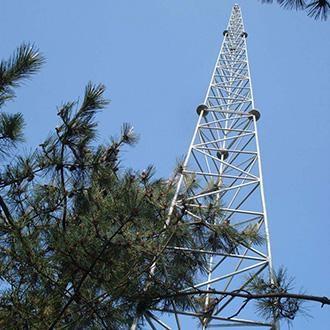

Steel 3 Leg 4 Leg Self Supporting Tower Tubular Antenna Tower image

Get a Quote Email to us

Brand Name :
Suntech

Model Number :
Antenna Tower

Certification :
ISO 1461 2009, ASTM A123

Place of Origin :
China

MOQ :
1 Tower

Price :
Negotiation

Payment Terms :
L/C, T/T

Supply Ability :
50000 Metric Ton/Metric Tons Per Year

Delivery Time :
30-35 days after deposit

Packaging Details :
Exported Containers

Product Name :
Self Supporting Tower

Material :
Steel

Connection Structure :
Bolts or Nuts

Design Standard :
American ANSI/TIA-222-G

Wind Speed :
120KM/H

Steel 3 Leg 4 Leg Self Supporting Tower Tubular Antenna Tower

Tower Fabrication

As outlined throughout our company profile, we have the in-house fabrication facilities to manufacture complete series of telecom tower ,monopole ,landscape monopole,

camouflage tree monopole ,self-supporting tower,RDS(rapid deployment sites),and camouflage antenna(air-conditioner;chinmey;water tank) with quick delivery at competitive

prices. Let us provide you a quotation.

Tower Design

Tell us your requirements and we will design and detail a complete antenna support structure to meet your needs. All tower design is done in complete

conformance with the latest revision of Telecommunications Industries Association standard TIA/EIA-222-G/F, “Structural Standards for Steel Antenna and Antenna Supporting Structures” and other industry standards, as applicable.

Design and Detailing

We have broad experience with virtually every make and model of tower used in the South America and Africa. Because of this, we can design and detail antenna mounts and other tower appurtenances to meet any needs and to fit any tower. With an in-house fabrication facility, we can custom-manufacture the items under our close scrutiny

to deliver what you need.

Structure Analysis and Calculation

We provides exceptional structural analysis services. A structural analysis goes deeper than just a visual inspection. The visual inspection

of a tower will show the physical condition of a tower such as rusting, cracking of welds, bent members, etc. but it will not show whether a tower is

overstressed by the loads it is supporting. A structural analysis uses mathematical engineering formulas for stress, along with known behavior of different materials under stress, to determine if any one point on the tower is stressed beyond safe limits. By using state-of-the-art computer software, we can create a mathematical model of any steel structure, and quickly determine the stresses at hundreds of points on the tower.

Telecom Structure Erection Guide

If you have any questions on tower structure erection ,pls feel free to contact us ,we can guide you how to erect the tower structure step by step ,we also can make the tower structure erection Assembly drawing and assembly instruction .so it will help you out on tower Structure erection easily.

Height 0-120m
Wind pressure 0~1kN/m2 (Chinese standard, other country's standard may change based on it)
Wind speed 0~200km/h (American standard 3s gust)
Foundation type Independent foundation/Raft foundation/Pile foundation
Environment condition Soft ground/Mountain groud
Type Three tubular/four tubular
Quality system ISO 9001:2008/TL9000
Design standard Chinese relative regulation/American standard G/American standard F
Material Q345/Q235
Galvanized Hot dip galvanization (86μm/65μm)
Connection structure Flange
Lifetime 30years/50years/100years

We are China Steel 3 Leg 4 Leg Self Supporting Tower Tubular Antenna Tower manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
