Steel Tape Armoured Power Cables 0.6/1kV Annealed Copper Conductor CU/XLPE/PVC/STA/PVC Cable

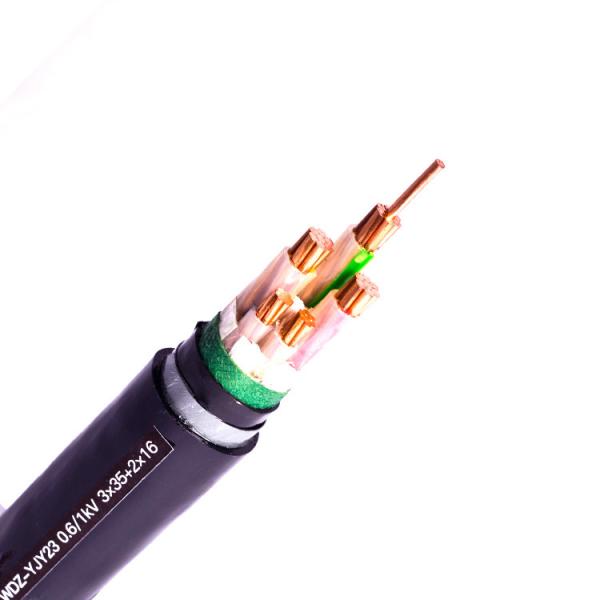

Steel Tape Armoured Power Cables 0.6/1kV Annealed Copper Conductor CU/XLPE/PVC/STA/PVC Cable image
Brand Name :
JHY CABLE
Model Number :
YJV22
Certification :
ISO9001/ISO14001/OHSAS18001/CCC/CE
Place of Origin :
SHENZHEN CHINA
MOQ :
1000M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000M/Day
Delivery Time :
7~10 Days
Packaging Details :
wooden drums
Application :
Construction,Industrial,Underground,Power Station,BUILDING
Type :
XLPE insulated
Conductor :
Bare Copper
Voltage :
0.6/1KV
Insulation :
XLPE
Sheath :
PVC
Armoured :
Steel Tape Armoured
0.6/1kV Annealed Copper Conductor Steel Tape Armoured Power Cables CU/XLPE/PVC/STA/PVC Cable
Production Description:
APPLICATION
YJV22-Copper Conductor XLPE Insulated Steel Tape Armoured PVC Sheathed Power&Mains Cable.
Copper XLPE STA PVC LSZH Cable is suitable for using in power distribution networks or fixed installations for industrial equipments with rated voltage up to and including 0.6/1kV.
CABLE STANDARDS
GB/T12706-2008,IEC,BS,VDE,ASTM and etc.
Construction
| 1. Conductor material: | Bare Copper | |
| 2. Sheath Material | PVC | |
| 3.Insulation Material | XLPE | |
| 4.Filler | Polypropylene lament with lapped binding tape | |
| 5.Armoured | Steel Tape Armoured |
CONSTRUCTION:
1. Stranded copper conductor class 2
2. XLPE insulation
3. PP Filling
4. Non-woven fabrics wrapping
5. PVC inner sheath
6. Steel tape armored
7. PVC outer sheath
Specification of XLPE cable
| model number | laying occasion | |
| copper core | aluminum core | |
| YJV | YJLV | indoor/tunnel,pipeline, |
| YJY | YJLY | |
| YJV22 | YJLV22 | adapt to underground laying,not adapt to pipeline laying |
| YJV23 | YJLV23 | |
| YJV32 | YJLV32 | laying in river or shallow sea bed,as a cross river or wire between petroleum and natural gas platform,also used for high divided lands areas |
| YJV33 | YJLV33 | |
| YJV42 | YJLV42 | |
| YJV43 | YJLV43 | |
Range of production
| core /area/rated voltage | 0.6/1 | 1.8/3 |
| single core 1 | 1.5-1000 | 10-1000 |
| double core 2 | 1.5-240 | 10-240 |
| three core 3 | 1.5-300 | 10-300 |
| core3+2 | 2.5-300 | 10-300 |
2. Product Image
