Steel Tubular Electric Power Transmission Pole Process With Ambush Welding

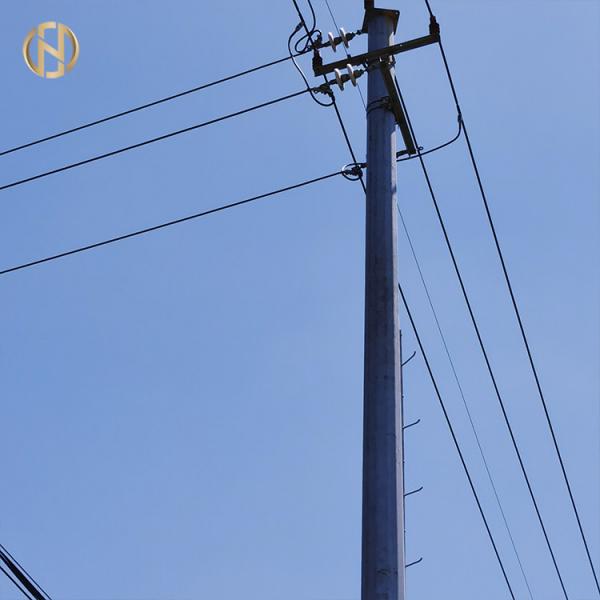

Steel Tubular Electric Power Transmission Pole Process With Ambush Welding image
Brand Name :
Futao
Model Number :
220kv
Certification :
EN10046
Place of Origin :
CHINA
MOQ :
2pieces
Price :
$111 – $660
Payment Terms :
L/C, T/T
Supply Ability :
2100 pieces every month
Delivery Time :
33workdays
Packaging Details :
40HC or OT wrap by mat or straw mat
Welding :
AWS D 1.1
Height :
According to clients’ request
Thickness :
2mm – 32mm
Material :
Q235, Q345, Q420,
Shape :
Tubular,16side
Surface Treatment :
HDG with painting
Steel Tubular Electric Power Transmission Pole Process With Ambush Welding
Product Description
The products above are 220KV Tubular Steel Pole for Transmission Lines,230kv electric pole, EN stardand.
To design in accordance with PLS software, we will require the following design parameters:
- The operational wind speed of the region where the pole will be used
- The Antenna load and height of the pole
- The total height of the pole itself
Product Specifications
| Type | Steel Tubular Electric Power Transmission Pole Process With Ambush Welding |
| Suitable Uses | Power tranmission line |
| Shape( Cross section) |
Octagonal, 8-side, 12-side |
| Power grade | 220kv |
| No of Section | <=3 section |
| Length (m) | |
| Foundation | Direct burial- 1.4 to 1.5Meter |
| Working Load | 300daN 3KN |
| Breaking Load | 360daN ,450daN, 540daN, 600daN |
| Safety Factor | 1.2, 1.5, 1.8, 2.0 |
| Material | ASTM 572 GR65 or Q460 |
| Minimum Yield Strength | 355Mpa, 450mpa, 35.5sq.m |
| Minimum Ultimate Tensile Strength | 450Mpa, 550Mpa 45sq.m |
| Max Ultimate Tensile Strength | 690mpa |
| EL % | >=15% |
| Top section | |
| Bottom section | |
| Min Thickness(mm) | >=4.75mm |
| Tolerance of Dimensions | +- 1% |
| Engraving | Name plate through rivet or glue ,engraving ,embossment as per customers’ requirements |
| Surface Treatment | Hot Dip Galvanization according to ASTM A123 standards/EN10046 |
| Joint of Poles |
Insert Mode, Inner Flange Mode, Face to Face Joint Mode. |
| Loading Conditions | |
|
0-5degree |
|
43m/s , 160km.h. |
|
1.0 |
|
10% of overall pole length |
| Welding |
Internal and external double welding process produces a seamless surface |
3.2. Tolerances
- Mean outside diameters, measured at slip joint level: ±1 % with ±2 mm minimum
- Ovalization: the dimensional percentage noted for two measurements taken between two perpendicular diameters at slip joint level : less than 3 % [(Dmaxi-Dmini)/Dmaxi < 3 %]
- Length of pole elements: – 25 mm / +75 mm
- Members Straightness: less than 0.2 % of 1 meter member length (2 mm per meter)
- Twisting: less than 1.5 degrees per 3 meters member length
- Location of holes: ± 1 % on lengths indicated on our approval drawings
3.3 Galvanization
After the fabrication has been entirely completed, Steel Poles shall be hot dip galvanized. Double dipping shall not be allowed.
All materials, except bolts, screws, nuts, shall be galvanized according to NF EN ISO 1461.
All hollow members shall be galvanized both inside and outside surfaces. Nuts shall be retapped after galvanizing and then shall be suitably protected from rust by grease.
4. Description:
Galvanized STEEL POLES, uniformly tapered, 12 sided regular polygonal cross-section. The maximum length of one section shall be 12 meters.
Each face shall be flat, without stiffeners except at load points.
Steel Poles are designed for telescoping slip-fitted connections.
Poles are designed with a minimum number of joints (one or two joint per pole). Pole joint shall be of telescoping type, welding or bolting shall not be employed.
Slip joint length shall not be less than 1.5 times the major internal diameter of the upper element.
A removable metallic pole cap shall be fitted on top of poles.
The crossarms attached at the same level on opposite sides of the pole shall be symmetrical about the centerline of the pole and shall be such that each crossarm can be installed independently.
The crossarms shall be connected to pole by mean of thru vangs, bolts and nuts. Cross-arms shall be straight and shall have a uniformly tapered 6 (eight) sided regular polygonal cross-section
All poles shall be provided with one earthing point at a position approximately 50 cm above ground level.
Packaging & Shipping
We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
FAQ
| Q3. I am a designer; Can you help me to produce the sample which we designed? |
| A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have. |
| Q4. We want be your agent for our area. How do I apply for this? |
| A: Please send your proposal and your company profile to |
| Q5. Tell me about your company? |
| A : We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world. |
| Q6. Do you have some special policies for Branded companies? |
Our Service
1. We will reply all your enquiries in 24 working hours.
2. Experienced staff members will answer all your questions in fluent English.
3. Customized designs are available. UEM & UBM are welcome.
We are China Steel Tubular Electric Power Transmission Pole Process With Ambush Welding manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
