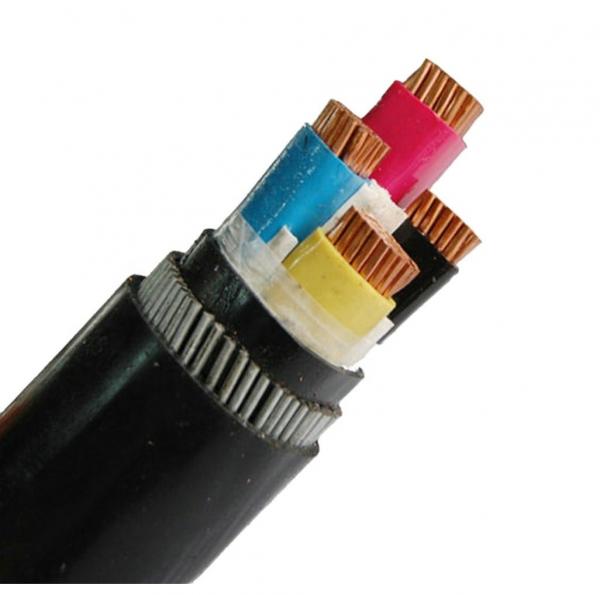

Stranded Copper Conductor N2XBY Cable SWA Steel Wire Armoured Cable

 China Stranded Copper Conductor N2XBY Cable SWA Steel Wire Armoured Cable supplier

Stranded Copper Conductor N2XBY Cable SWA Steel Wire Armoured Cable image

Get a Quote Email to us

Brand Name :
Nuoxing

Model Number :
N2XBY

Certification :
CE/CCC/ISO9001

Place of Origin :
China

MOQ :
1000 meters

Price :
USD 1-100

Payment Terms :
T/T, L/C, Western Union

Supply Ability :
1000 km per month

Delivery Time :
10-20 days

Packaging Details :
standard export packing in wooden drums or boxes

Product Name :
CU/XLPE/SWA/PVC

Conductor material :
Copper

Insulation material :
XLPE

Application :
Construction,Underground,Industrial

Type :
Low Voltage

Jacket :
PVC

Standard :
IEC60502

Color :
Customized

Copper Stranded Conductor Steel Wire Armored N2XBY Power Supply Cable CU/XLPE/SWA/PVC

Application:

N2XBY cable is suitable for AC 50Hz power and distribution lines with rated voltage of 0.6/1kV, which can be used in fixed industrial power applications, underground tunnels, etc. Using steel wire armour offers great mechanical protection, making it rigid with a large radius.

Construction:

Single-core
1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Polietileno reticulado XLPE
3. Inner sheath:Polyvinyl chloride PVC
4. Armour: Non-magnetic steel-tape
5. Outer sheath: Polyvinyl chloride PVC

Multi core
1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: crosslinked polyethylene XLPE
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Inner sheath: Polyvinyl chloride PVC
6. Armour: Steel-tape
7. Outer sheath: Polyvinyl chloride PVC

Specificaiton:

IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) – Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)
Product name Low Voltage Electric Cable
Certifications CE/CCC/ISO
Standard IEC60502-1
Rated Voltage 0.6/1 KV
Conductor material Copper/Aluminum
Insulation Material XLPE/PVC
Armoured Material None/Steel Tape/Steel wire
Jacket Material PVC
Number of cores 1C,2C,3C,4C,5C,3+1C,3+2C,4+1C
Section area 1.5MM2 – 400MM2

Cable selection:

The choice of cable mainly includes the choice of cable model and the choice of cable cross section.
Model selection
The selection of the power cable type should be determined according to factors such as environmental conditions, laying methods, and special requirements of electrical equipment. Generally, the following principles should be considered:
(1) Aluminum core cables should be used in general environments and places, but copper core cables should be used in places with severe vibration, special buildings and special requirements.
(2) Cables laid in the ground generally adopt armored cables with outer sheath. In places where there is no possibility of mechanical damage, plastic sheathed cables and lead (aluminum) sheathed cables with outer sheaths can also be used.
(3) In the soil with chemical corrosion or stray current corrosion, buried cables should not be used as much as possible. If it is necessary to lay in the ground, use anti-corrosion cables.
(4) Cables laid in pipes or pipes generally use plastic sheathed cables, but also bare armored cables.
(5) Cables laid in cable trenches or cable tunnels should not be covered with flammable or prolonged flames. Generally, bare armored cables, plastic sheathed cables and bare lead (aluminum) covered cables are used.
(6) When cables are laid in places with large height differences, plastic insulated cables, non-drip cables and dry insulated cables should be used.
Cross-section selection The cross-sectional area of ​​the cable should be selected according to the following four conditions: ①Select according to heating conditions; ②Select according to allowable voltage loss; ③Select according to mechanical strength conditions; ④Select according to line protection (device) equipment.

FAQ:

Q1. Are you trading company or manufacturer ?

A: We are professional manufacture with our own independent export rights.

Q2. What if I don’t find the type and size of cable I need on this page?

A: Don't worry. Contact us and send us your requirements, we will help you choose the correct cable you need. It is better if you have the following information: cable voltage, conductor material, insulation and outer sheath material, armor type. Otherwise, you can provide us with cable installation environment, application requirements, etc.

Q3. Can you produce according to the samples ?

A: Yes, we can produce by your samples or technical drawings.

Q4. How long is you delivery time ?

A: Depends on your quantity, normally 1-3 weeks.

We are China Stranded Copper Conductor N2XBY Cable SWA Steel Wire Armoured Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
