Stranded Copper PVC Insulation Electrical Cable Wire

 China Stranded Copper PVC Insulation Electrical Cable Wire supplier

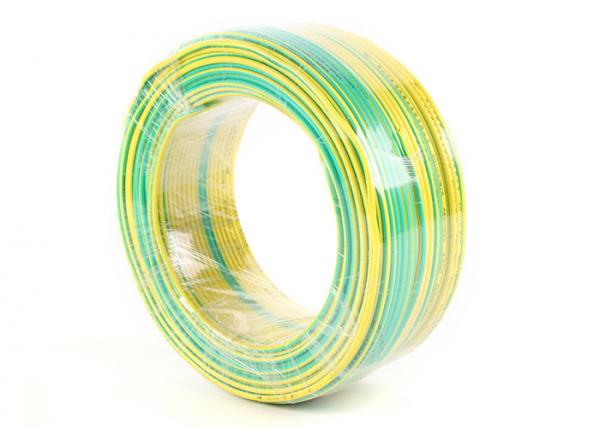

Stranded Copper PVC Insulation Electrical Cable Wire image

Get a Quote Email to us

Model Number :
H05V-U/H07V-U

Insulation :
PVC

Conductor type :
Stranded

Conductor material :
Copper

Application :
Overhead

Type :
Insulated

Insulation material :
PVC

Place of Origin :
Shanghai, China

Brand Name :
SHANCABLE

Certification :
ISO,CE,IEC,TUV,KEMA

MOQ :
Negotiable

Price :
Negotiable

Packaging Details :
Wooden Drum

Delivery Time :
10 Days

Payment Terms :
L/C, T/T

Supply Ability :
100KM/Week

copper PVC Insulation twisted pair flexible wire

Description:

Flexible stranded Copper twisted, Cl.5, PVC Insulation

As per standard IEC 60227 IEC 60228 GB/T5023-2008

Constructions

Conductor: Flexible stranded copper conductor, conforms to IEC 60228 class 5

Insulation : PVC compound rated 70ºC or 85ºC for continuous operation.

Note: Insulation color as per standards or customer requirement

Applications

Used for indoor applications for electric power, lighting and internal wiring in houses.

Standards

International: IEC 60227 IEC 60331, IEC 61034

China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage:300/500 V, 300/300V, 450/750V

Max. Conductor Temp. in normal use: 70°C or 90°C

Certificates

CE, RoHS, CCC, KEMA and more others at request

Packing: Wooden Iron drum or 100m/roll then put into wooden Case.

We are China Stranded Copper PVC Insulation Electrical Cable Wire manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
