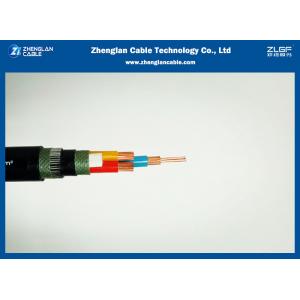

SWA Armored 3 Core Power Cable CU/XLPE/PVC/SWA/PVC 3x10sqmm BS5467 image

Get a Quote Email to us

SWA armored 3core power cable CU/XLPE/PVC/SWA/PVC 3x10sqmm BS5467

Application:

1.1kv SWA armored 3core power cable 3x10sqmm BS5467 are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, in power and switching stations, local energy distributions, industrial plants, where there is have many movings.

Construction:

Conductors:Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.

Product features:

Insulation:XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.

Colour Code Colour Code (1):

1 Core: Red or Black

2 Cores: Red, Black

3 Cores: Red, Yellow, Blue

4 Cores: Red, Yellow, Blue, Black

5 Cores: Red, Yellow, Blue, Black, Green

Above 5 Cores: Black Cores with White numerals

Core identificaation method: color tape

Outer Sheath: Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.

Fire Performance of Cable Sheaths: Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.

SWA armored 3core power cable 3x10sqmm BS5467​ Parameters:

Nominal

Area

Approx

Conductor

Diameter

Nominal

Insulation

thickness

Nominal

bedding

thickness

Nominal

Steel Wire

dia.

Nominal

Sheath

thickness

Approx.

Overall

Diameter

Approx.

Weight

mm² mm mm mm mm mm mm Kg/km
3×1.5 1.38 0.7 1.2 0.9 1.8 15 380
3×2.5 1.76 0.7 1.2 0.9 1.8 15.5 400
3×4 2.25 0.7 1.2 0.9 1.8 16.5 460
3×6 2.76 0.7 1.2 0.9 1.8 18 540
3×10 4.0 0.7 1.2 0.9 1.8 19.5 750
3×16 5.0 0.7 1.2 1.25 1.8 22.5 1000
3×25 6.3 0.9 1.2 1.6 1.8 26 1510
3×35 7.4 0.9 1.2 1.6 1.8 28 1950
3×50 8.8 1.0 1.2 1.6 1.9 32 2350
3×70 10.6 1.1 1.2 2.0 2.0 35 3230
3×95 12.4 1.1 1.2 2 .0 2.1 39 4050
3×120 14.0 1.2 1.2 2.0 2.3 43 5230
3×150 15.5 1.4 1.4 2.5 2.4 47 6750
3×185 17.4 1.6 1.4 2.5 2.6 52 8230
3×240 20.3 1.7 1.5 2.5 2.7 59 10510
3×300 22.7 1.8 1.6 2.5 2.9 64 13210
3×400 25.4 2.0 1.6 2.5 3.2 74 16100

Products Show:

1kv XLPE insulated PVC sheathed multi core copper cable 4x95sqmm​ Test equipment:
