Three Phase core copper conductor unarmored 600/1000V 3x10mm2 XLPE Insulated Power Cable

 China Three Phase core copper conductor unarmored 600/1000V 3x10mm2 XLPE Insulated Power Cable supplier

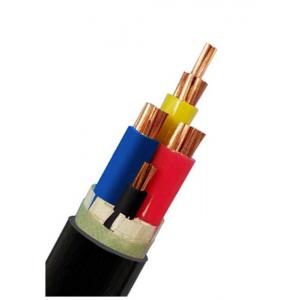

Three Phase core copper conductor unarmored 600/1000V 3x10mm2 XLPE Insulated Power Cable image

Get a Quote Email to us

Brand Name :SHANCABLE
Model Number :YJV-0.6-1KV
Certification :ISO,CE,IEC,TUV,KEMA
Place of Origin :Shanghai, China
MOQ :Negotiable
Price :Negotiable
Payment Terms :L/C, T/T
Supply Ability :100KM/Week
Delivery Time :10 Days
Packaging Details :Wooden Drum
Warranty :2 Years
Application :Power Transmission and Lighting systems
Outer Seath :PVC
Sample :Available
Test Voltage :600/1000V
Conductor :100% copper

Three Phase core copper conductor unarmored 600/1000V 3x10mm2 XLPE Insulated Power Cable

Description:

0.6/1kv XLPE Insulated Electric Power cable

CU/XLPE/PVC, IEC 60502

IEC 60502, IEC 60228, GB/T 12706.1-2008.

CE, CCC, KEMA. ISO. VDE

Constructions

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228

Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃

Sheath : PVC type ST2 to IEC 60502, black

Applications

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Standards

International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 0.6/1kV

Max. Conductor Temp.: normal (90℃), short circuit no more than 5 s (160℃ when section-area below 300mm2, 140℃ when section-area above 300mm2)

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%

Certificates

CE, RoHS, CCC, KEMA and more others at request

Packing:

Technical Specifications:

Nom. Cross-section of conductor Strands No./Dia. of Conductor Insulation Thickness Sheath Thickness Approx. O.D.

Approx

.Weight

Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm Lower Limit (mm) kg/km Ω /km kV/5min In air (A) Direct In soil(A)
3 × 1.5 1/1.38 0.7 1.4 10.0 145 12.1 3.5 20 27
3 × 2.5 1/1.78 0.7 1.8 11.0 185 7.41 3.5 26 35
3 × 4 1/2.25 0.7 1.8 12.0 250 4.61 3.5 34 45
3 × 6 1/2.76 0.7 1.8 13.0 320 3.08 3.5 43 57
3 × 10 7/1.38 0.7 1.8 16.0 450 1.83 3.5 60 77
3 × 16 7/1.78 0.7 1.8 18.0 640 1.15 3.5 83 105
3 × 25 7/2.14 0.9 1.8 21.0 940 0.727 3.5 105 125
3 × 35 7/2.52 0.9 1.8 23.0 1260 0.524 3.5 125 155
3 × 50 10/2.52 1.0 1.8 23.0 1670 0.387 3.5 160 185
3 × 70 14/2.52 1.1 1.8 26.0 2280 0.268 3.5 200 225
3 × 95 19/2.52 1.1 1.9 30.0 3020 0.193 3.5 245 270
3 × 120 24/2.52 1.2 2.0 32.0 3790 0.153 3.5 285 310
3 × 150 30/2.52 1.4 2.2 37.0 4750 0.124 3.5 325 345
3 × 185 37/2.52 1.6 2.3 41.0 5654 0.0991 3.5 375 390
3 × 240 48/2.52 1.7 2.4 46.0 7243 0.0754 3.5 440 450
3 × 300 61/2.52 1.8 2.6 51.0 9465 0.0601 3.5 505 515
3 × 400 61/2.97 2.0 3.0 64.0 12066 0.0470 3.5 570 575

Packing and shipping:

We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

We are China Three Phase core copper conductor unarmored 600/1000V 3x10mm2 XLPE Insulated Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
