TM2 Sheath Low Voltage Multi Core Pvc Insulated Cable

 China TM2 Sheath Low Voltage Multi Core Pvc Insulated Cable supplier

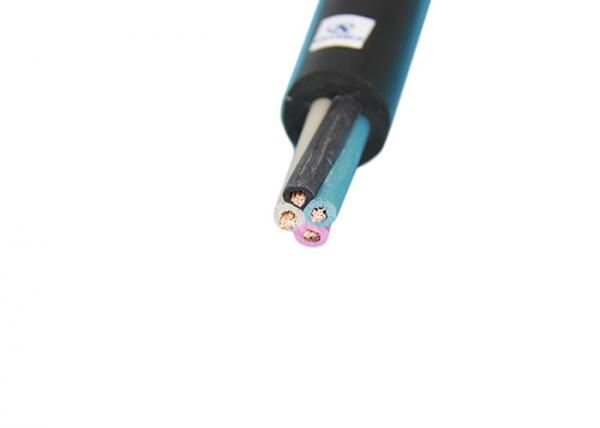

TM2 Sheath Low Voltage Multi Core Pvc Insulated Cable image

Get a Quote Email to us

Model Number :Electric wire
Certification :CE
Place of Origin :Henan, China (Mainland)
MOQ :1000m
Payment Terms :Western Union, L/C, T/T, MoneyGram
Supply Ability :3000km per month
Delivery Time :3-30 days
Packaging Details :Coil,Pallet,Box,Drum
Type :Low Voltage
Application :fixed installations
Conductor :Cu
Core Number :1
Insulation :PVC
Sheath :PVC
Outer Characters :Flame retardant, Fire resistant, LSHF
Rated voltage :300/500V,450/750V
Certificate :ISO9001/ISO14001 ,CE
Standard :IEC, BS, ICEA, CSA, NF, AS-NZS
Colour :Black,grey,yellow/green/blue/brown/

PVC INSULATED CABLE MULTI-CORE CABLE H03VV-F/H03VVH2-F

H03VV-F / H03VVH2-F CABLE



Application

H03VV-F cable is widely used in dry locations for connections of portable electrical appliances submitted to weak mechanical strength, like radio sets and lighting fittings, but not for heating devices , not allowed to use the outdoor or industrial field.



Standard

DIN VDE 0281-3



Cable Construction

Conductor: Flexible copper wire , class 5

Insulation: PVC

Sheath: PVC, TM2

Core colour code according to HD 308 S2

Jacket colour: Black , White ,Grey or others as per requirements



Technical Characteristics:

Rated voltage: 300/300V

Temperature Rating: +5°C to +70°C.

Short circuit temperature: 150°C

Minimum Bending Radius: 8 times of overall diameter



Parameter

Core No. Conductor Size Conductor PVC Insulation Thickness PVC Sheath Thickness Approx. Cable Dia. Approx. Cable Weight
Single wire dia. Overall Dia.(Approx.)
mm2 mm mm mm mm mm kg/km
2 0.5 0.2 0.94 0.6 0.7 5.7 38
3 0.5 0.2 0.94 0.6 0.7 6.1 48
4 0.5 0.2 0.94 0.6 0.8 6.8 62
5 0.5 0.2 0.94 0.6 0.8 7.4 73
2 0.75 0.2 1.14 0.6 0.8 6.3 48
3 0.75 0.2 1.14 0.6 0.8 6.7 60
4 0.75 0.2 1.14 0.6 0.8 7.3 76
5 0.75 0.2 1.14 0.6 0.9 8.2 94
2 1 0.2 1.34 0.6 0.8 6.7 56
3 1 0.2 1.34 0.6 0.8 7.1 72
4 1 0.2 1.34 0.6 0.9 8.0 93
5 1 0.2 1.34 0.6 0.9 8.7 111




Our Certificate

Our Services



1.  Product consultation ,analysis, design, production

2.  Provide industry information, Product Training, Assist Product Marketing

3.  Provide project support such as tender assistant, cooperate visit customers,FAT support

4.  Complete Quality system and docs available, faster lead time, good quality,Strong technical support, free samples

5.  OEM service

6.  Other services customized by clients



FAQ



Q1: Are you a manufacturer or a trade company?
Q2: What`s your export business type / customer groups?
Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
Q4: When can I get the price ?



Q5: What’s your MOQ?/ How long is your delivery time?
Q6: What’s your trade term and payment term?
Q7: What`s your quality guarantee and period.



Q8: Does your price include destination custom clearance , import tax , installation service ?



Looking forward to cooperating with you.




We are China TM2 Sheath Low Voltage Multi Core Pvc Insulated Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
